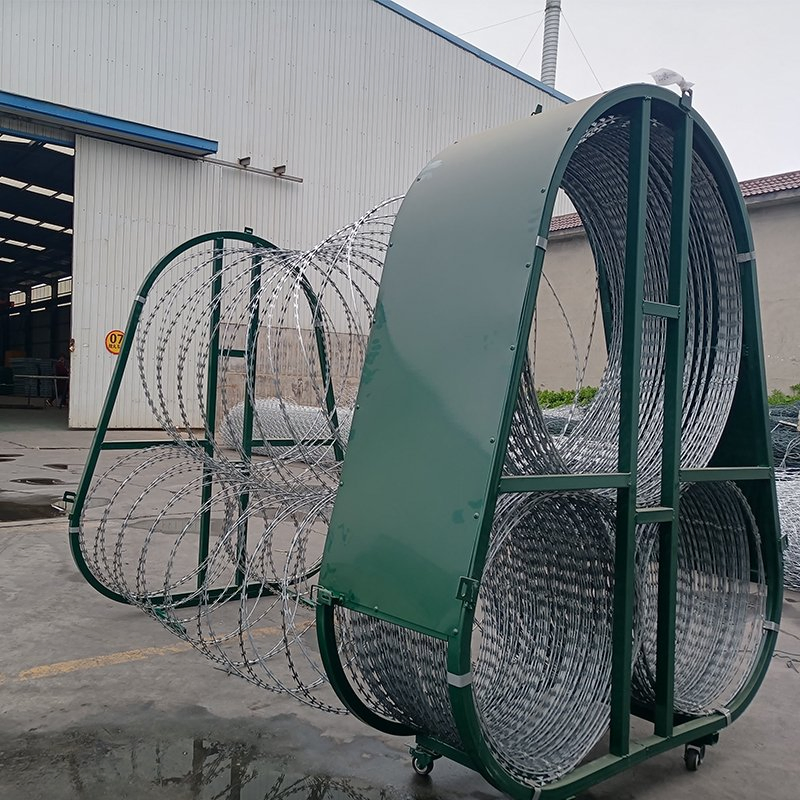

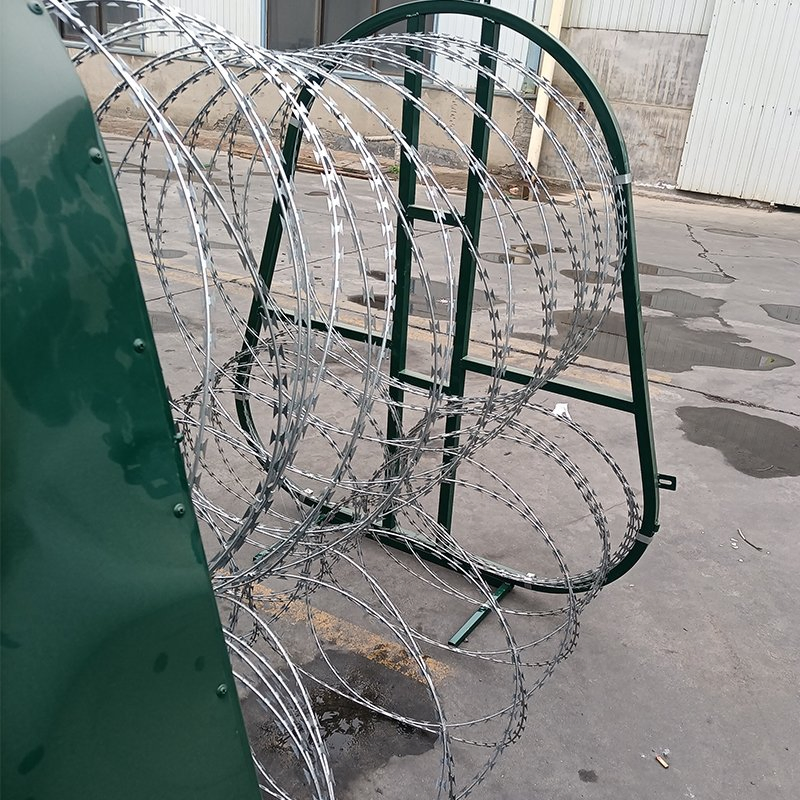

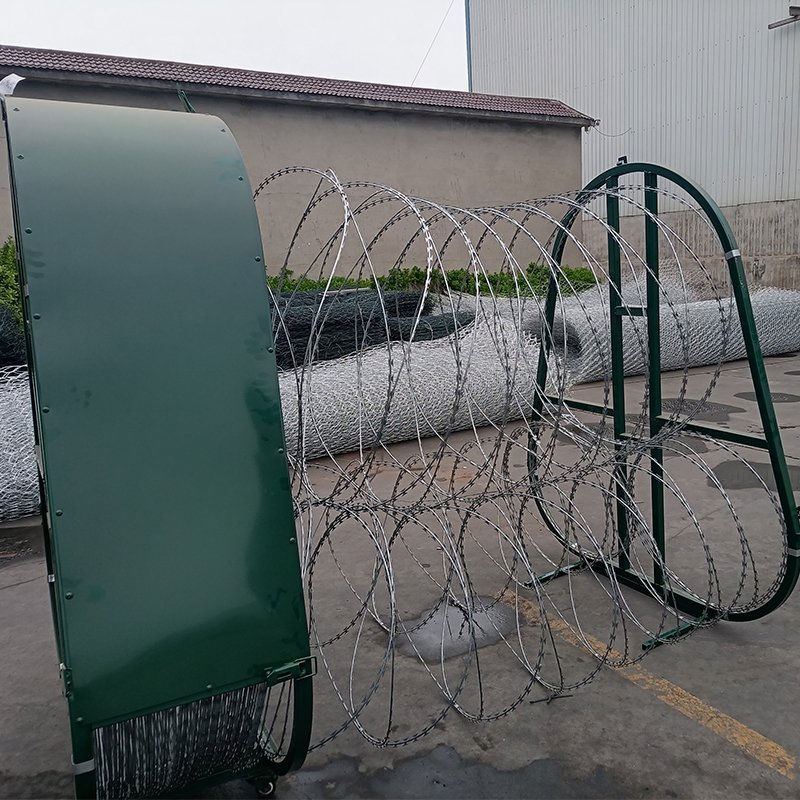

Anping Armadillo Barrier System for Industrial and Residential Safety

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Application:
Protecting Mesh
Finish:
Electro Galvanized
Razor Barbed Type:
Cross Razor
Wire Gauge:
12x12 BWG
Coil Outside Diameter:
500mm
Production Capacity:
200 Tons Per/Month
Concertina Barbed Wire / Razor Barbed Wire

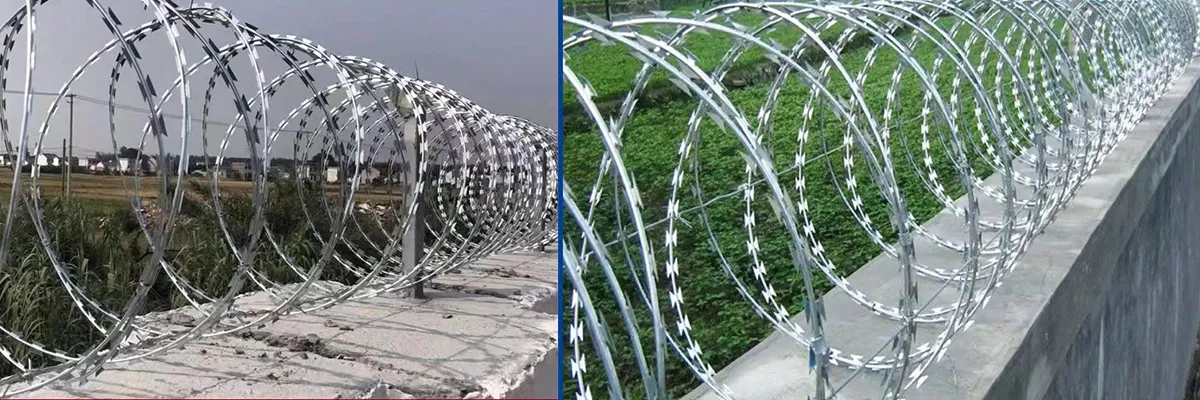

Razor Barbed Wire Banner
Product Overview
The blade-like structure of the wire netting is sharp and densely arranged. Once a climber comes into contact with it, the blades will cut the skin or hook onto the clothing, making it difficult for the climber to climb, thereby effectively preventing illegal intruders from climbing over the fence.
We offer genuine materials and products that pass quality inspections. Our materials and products embody an unwavering pursuit of quality through rigorous testing.

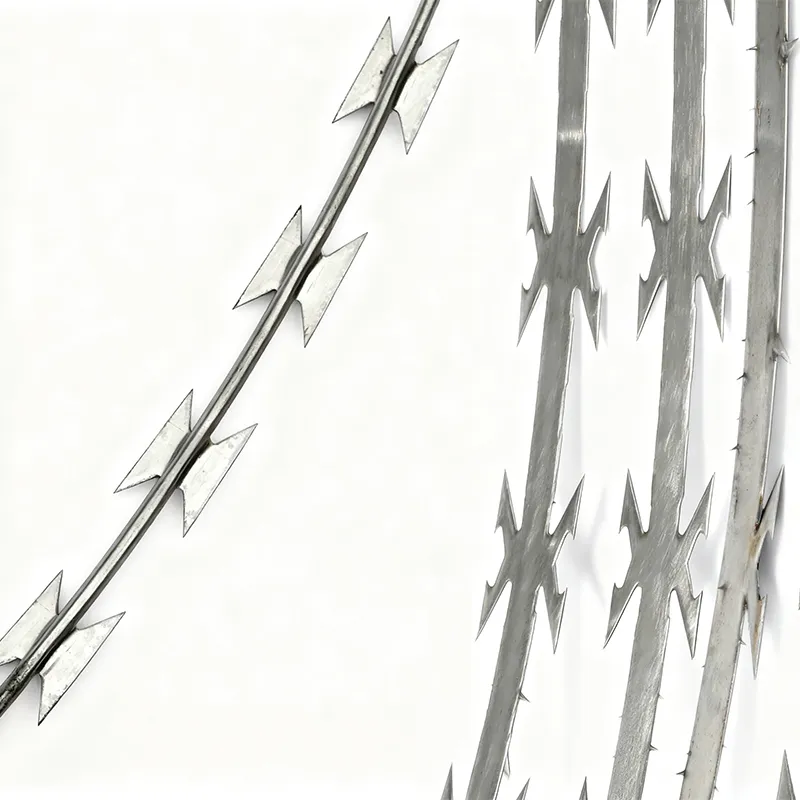

Variety of Blade Shapes
  • Rhombic blade
  • Trapezoidal blade
  • Rectangular blade
  • Triangular blade
  • Serrated blade

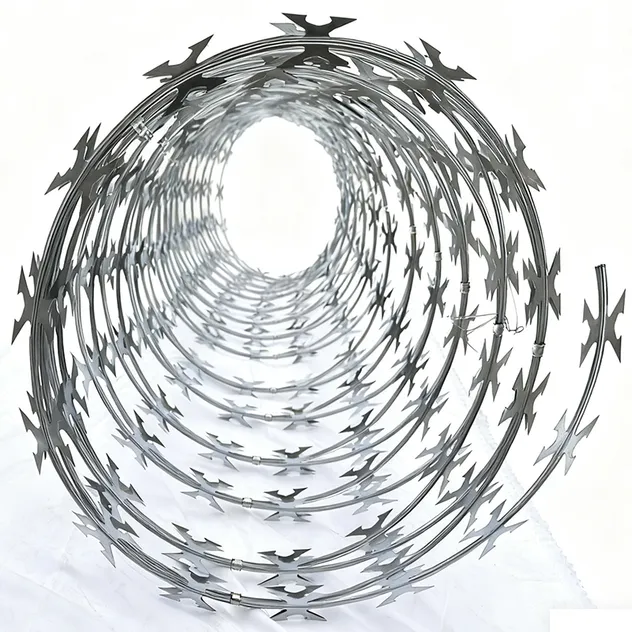

Spiral Structure & Stability
The razor wire usually has a spiral shape, providing excellent elasticity and flexibility. There are 3 to 7 clips in every 2 loops, and the loops interlock with each other. When pulled apart, it forms a stable spiral shape, which can better cover the protection area and play a role in blocking and intimidating.

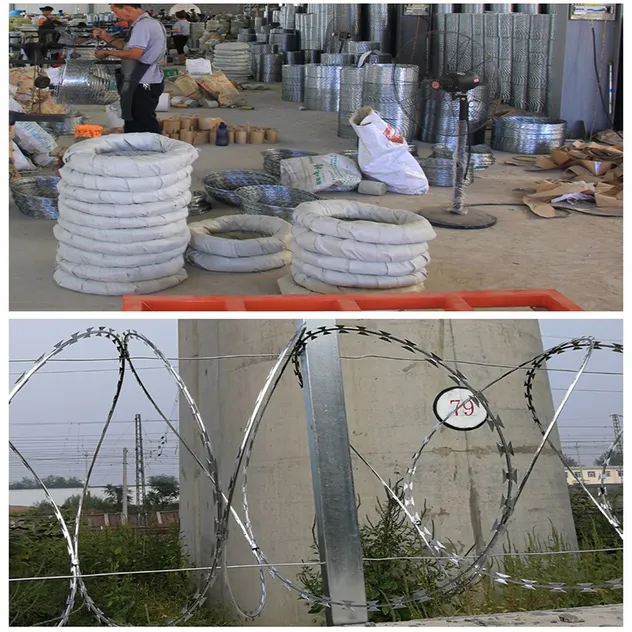

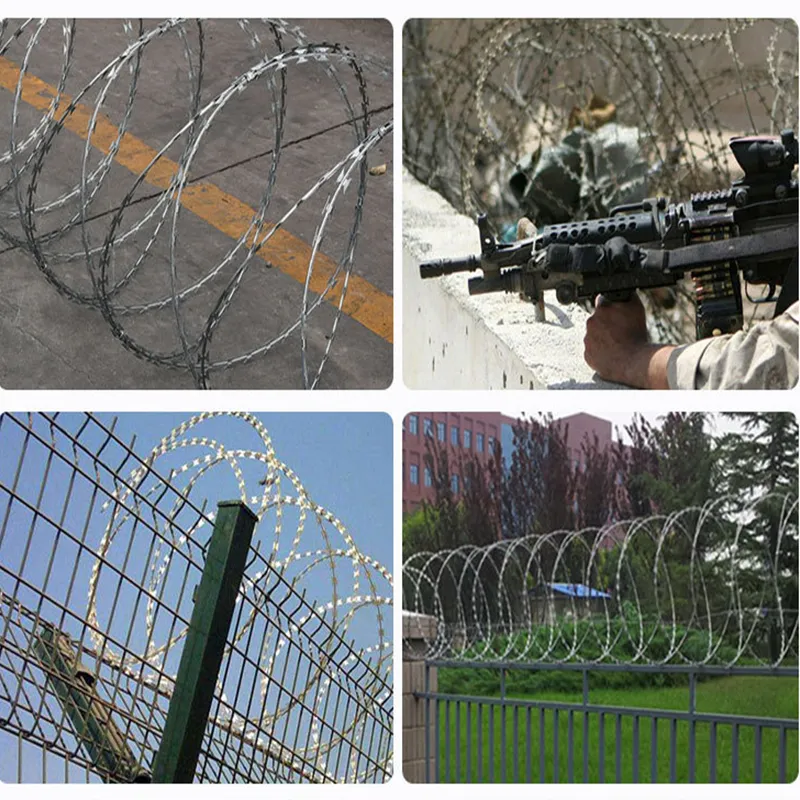

Application Scope
Due to its high strength and deterrent effect, razor wire is widely used in:
  • Prisons and detention centers
  • High-risk industrial areas
  • Valuable item storage facilities
  • Special protected areas and border defense lines
  • Transportation facilities
Technical Specifications
Materials: Hot-dip galvanized sheet/wire or Stainless steel sheet/wire (AISI 430 and AISI 304).
Outside Diameters: 450mm to 980mm.
Model Thickness Wire Dia Barb Length Barb Width Barb Spacing
BTO-100.5 ± 0.05 mm2.5 ± 0.1mm10 ± 1mm13 ± 1mm26 ± 1mm
BTO-120.5 ± 0.05 mm2.5 ± 0.1mm12 ± 1mm15 ± 1mm26 ± 1mm
BTO-220.5 ± 0.05 mm2.5 ± 0.1mm22 ± 1mm15 ± 1mm34 ± 1mm
BTO-300.5 ± 0.05 mm2.5 ± 0.1mm30 ± 1mm21 ± 1mm54 ± 1mm
CBT-600.6 ± 0.05 mm2.5 ± 0.1mm60 ± 2mm32 ± 1mm102 ± 1mm
CBT-650.6 ± 0.05 mm2.5 ± 0.1mm65 ± 2mm21 ± 1mm102 ± 1mm

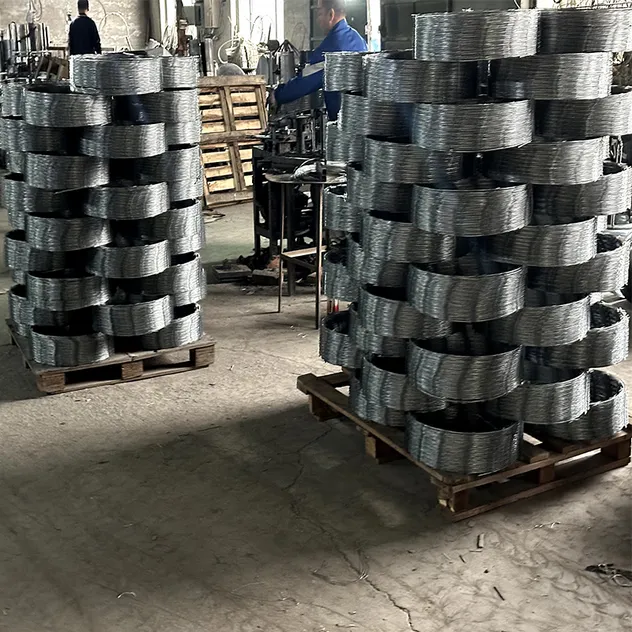

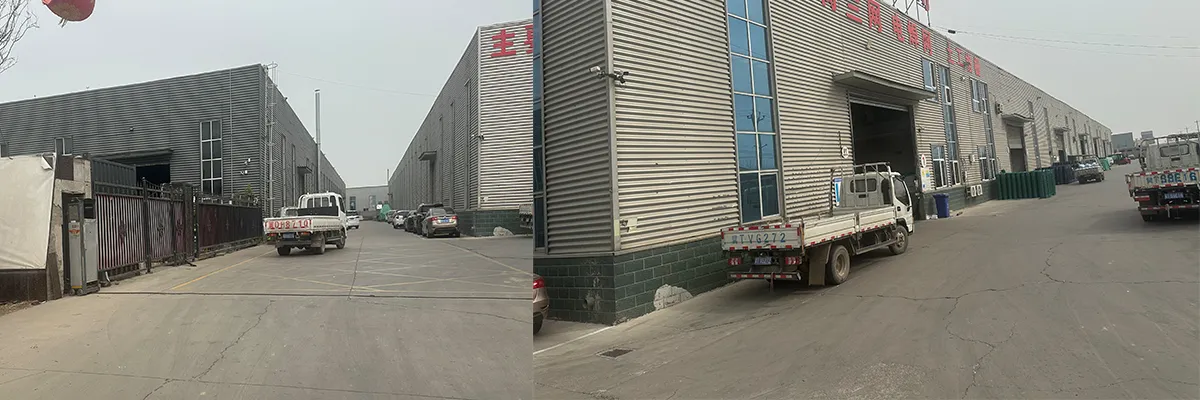

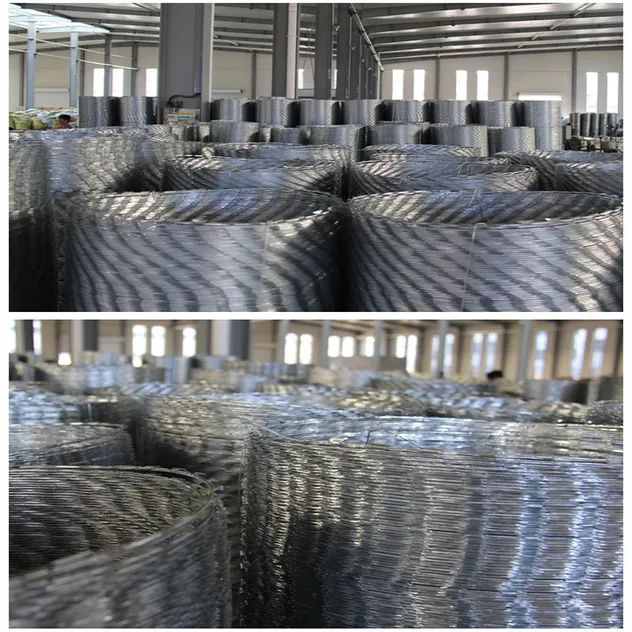

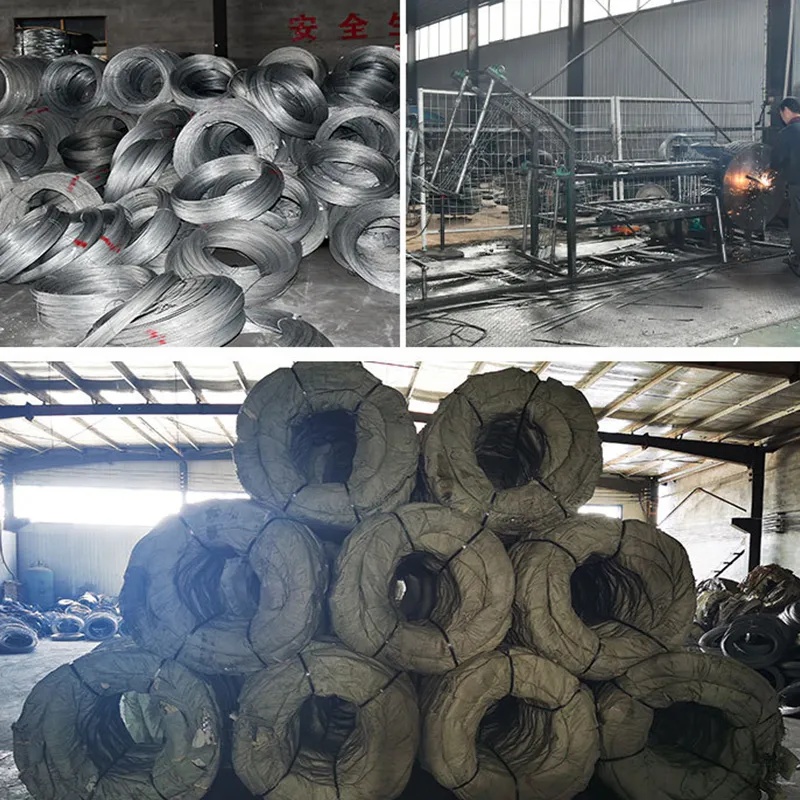

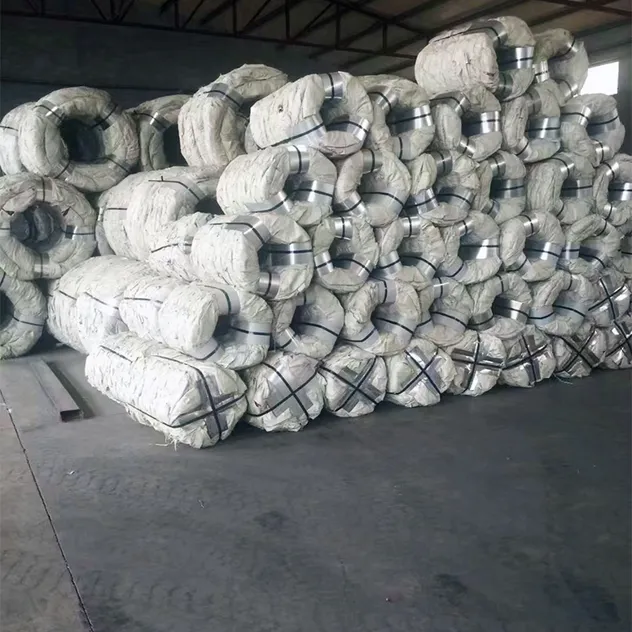

Production Process
Frequently Asked Questions
Q: Are you a factory or a trading company?
A: We are an integrated enterprise combining industry and trade, ensuring both manufacturing quality and professional service.
Q: Can you offer free samples?
A: Yes, we can. While customers usually cover the initial freight, the cost is returned once the order is confirmed.
Q: Can I customize the products?
A: Yes, we are capable of producing required products as long as the drawings or specifications are provided.
Q: How about the delivery time?
A: For normal size products, we maintain stock for quick delivery. Even for custom quantities, the delivery time typically won't exceed 15 days.
Q: How can I trust your quality?
A: Our quality and pricing have won numerous customers over the years. We provide samples before ordering and welcome any third-party inspections.
Q: What materials are available for the razor wire?
A: We offer hot-dip galvanized steel and stainless steel options including AISI 430 and AISI 304 grades.
