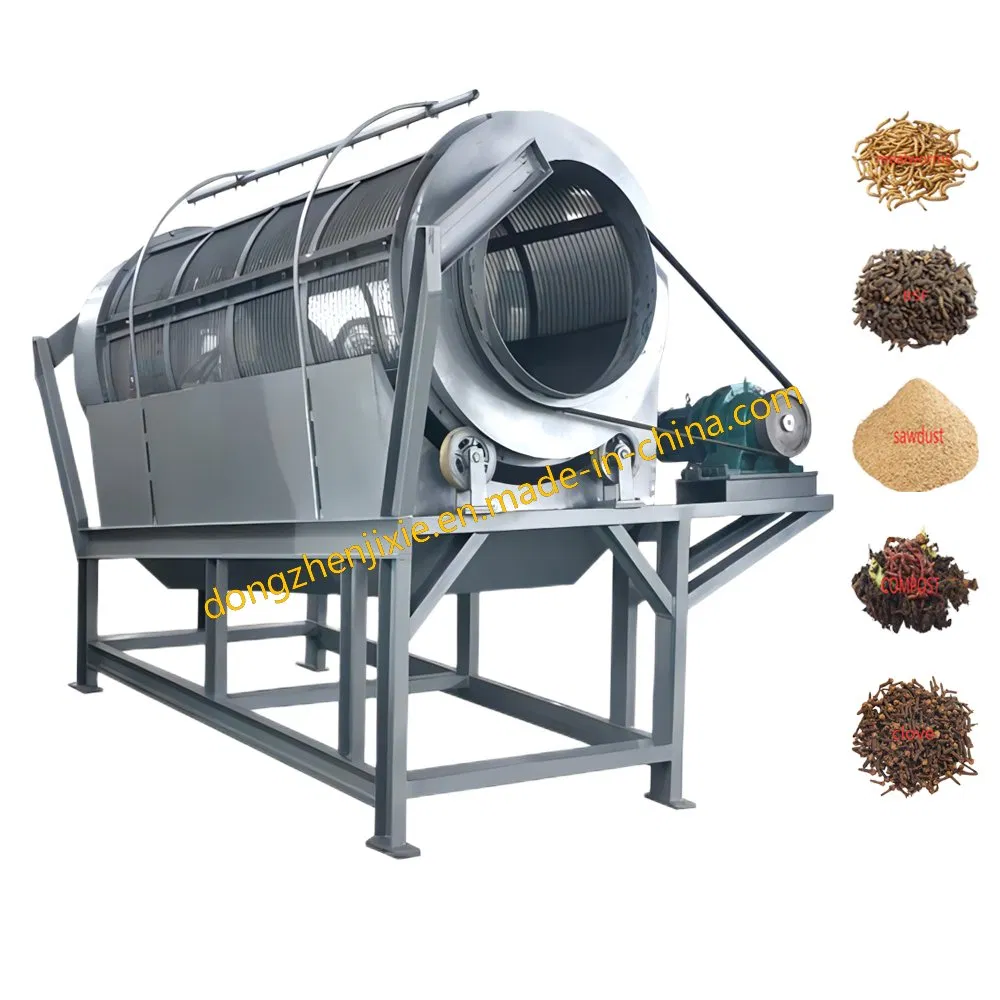

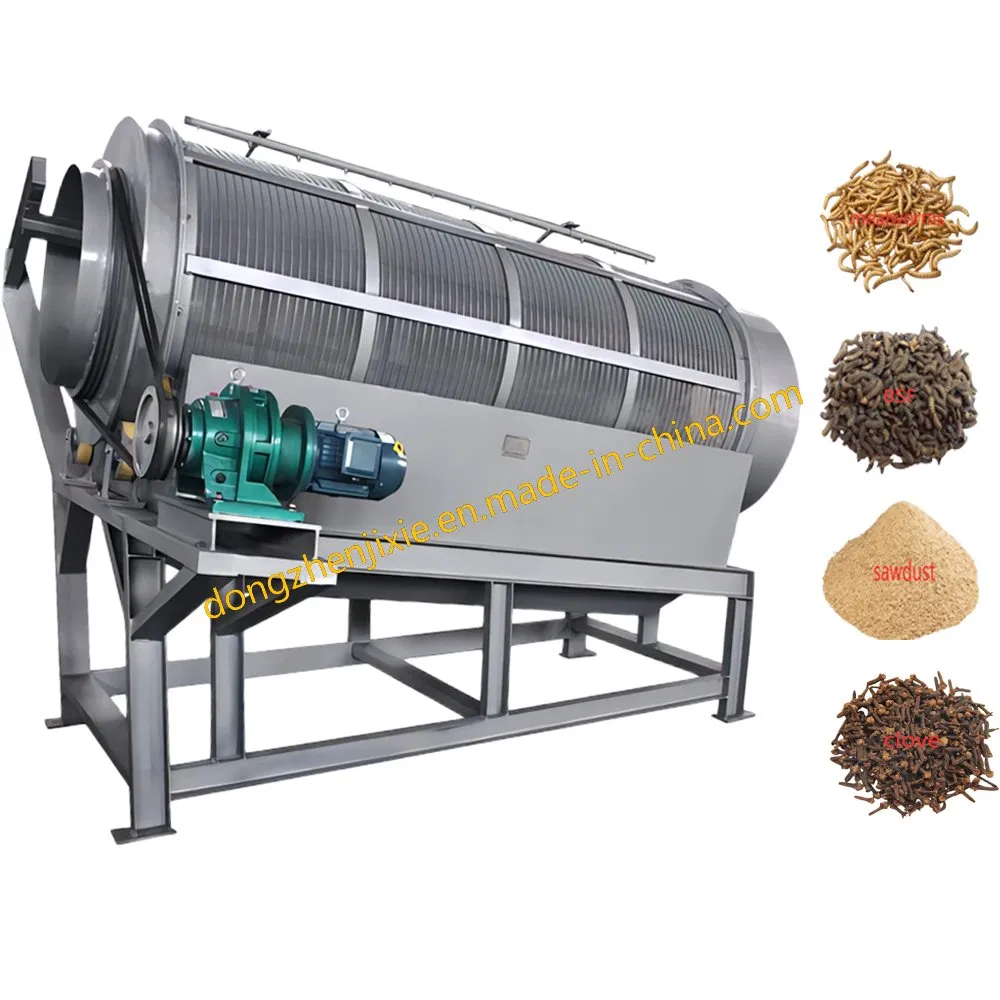

Dzjx Trommel Screen Powder Rotary Drum Screen Electric System

i

Basic Specifications

Model NO.:DZGT 1015

Motor Power:3KW

Sorting Standard:Size

Type:Circular

Voltage:220V/380V/Customizable

Core Components:Motor

Weight:160kg

Feature:High Screening Efficiency

Transmission:Electromagnetic Shaker

Warranty:1 Year

1

Product Description

Trommel Screen Sieve Rotary Gold Mining Sand Gravel Stone Drum

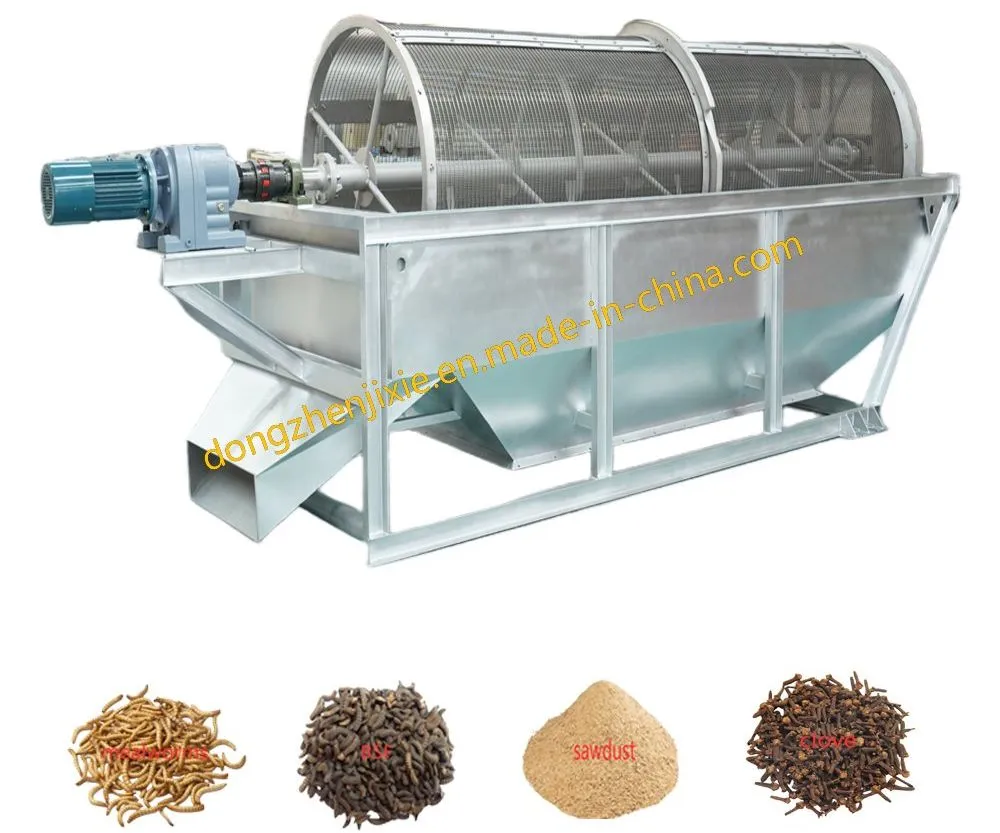

Trommel screen has wide range of sizes and capacities, Mining Machinery Rotating Vibrating Drum Sieve is a mechanical screening machine used to separate materials. Trommel screen consists of a perforated cylindrical drum that is normally elevated at an angle at the feed end, motor, reduction unit, screen frame and sealing cover. When materials flow towards along the inclined rotating drum, materials jump and roll, the undersized material smaller than the screen apertures passes through the screen, while the oversized material exits at the other end of the drum.

2

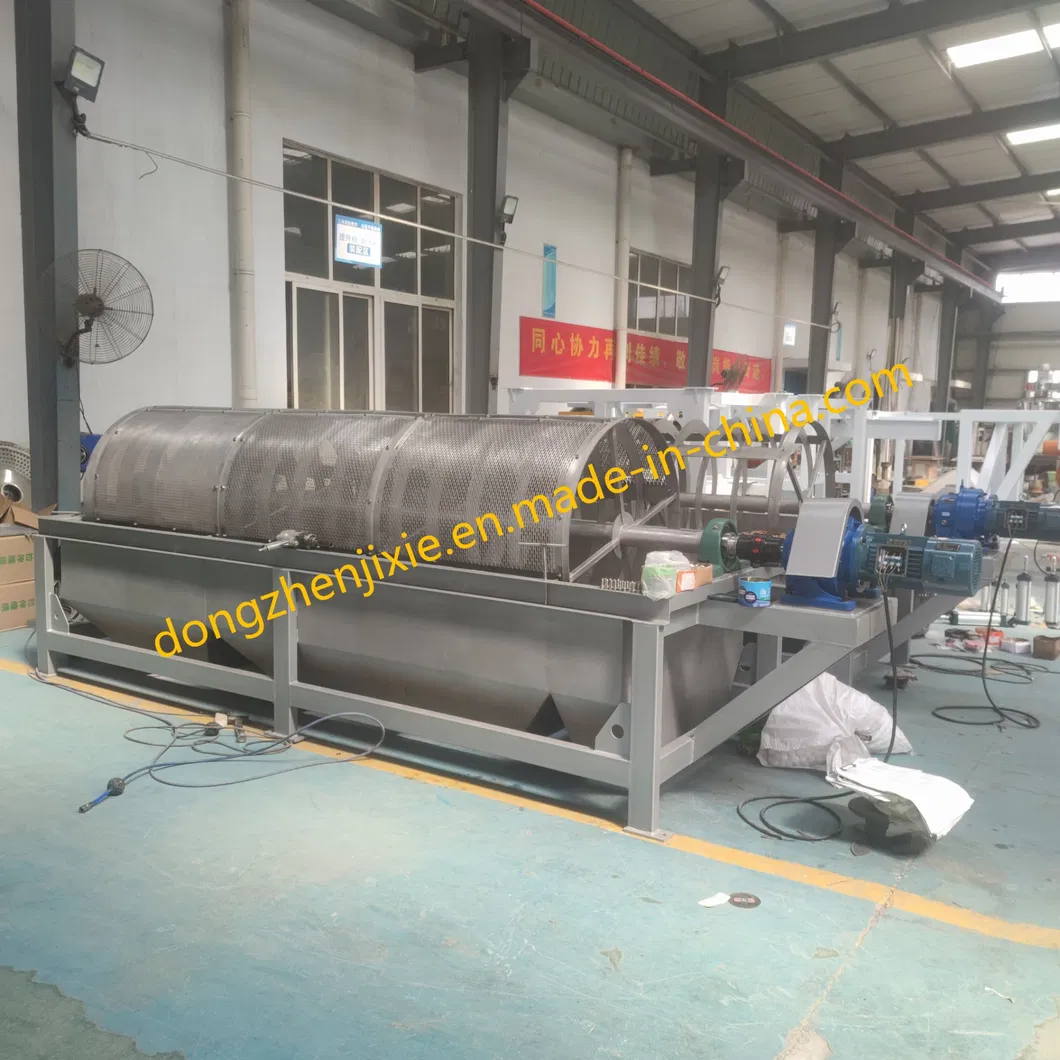

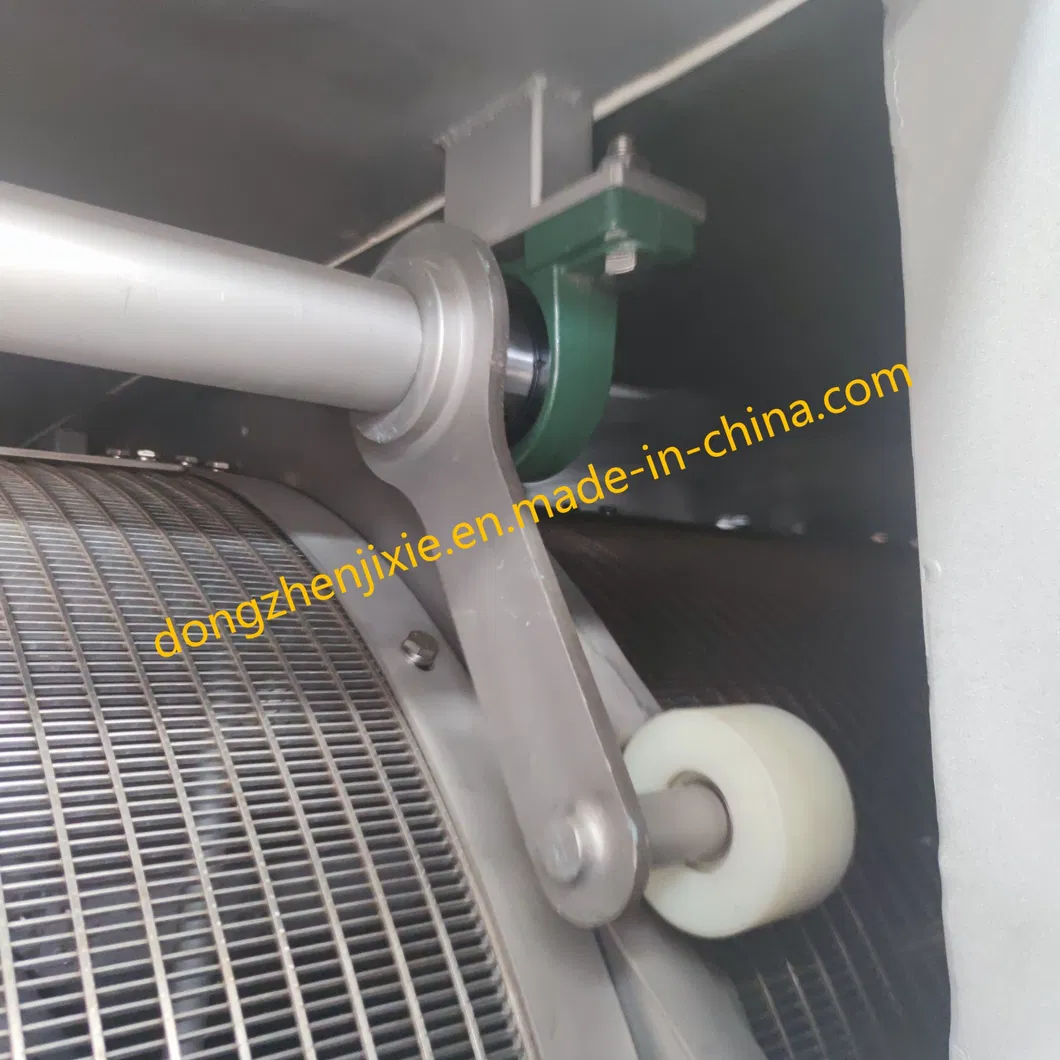

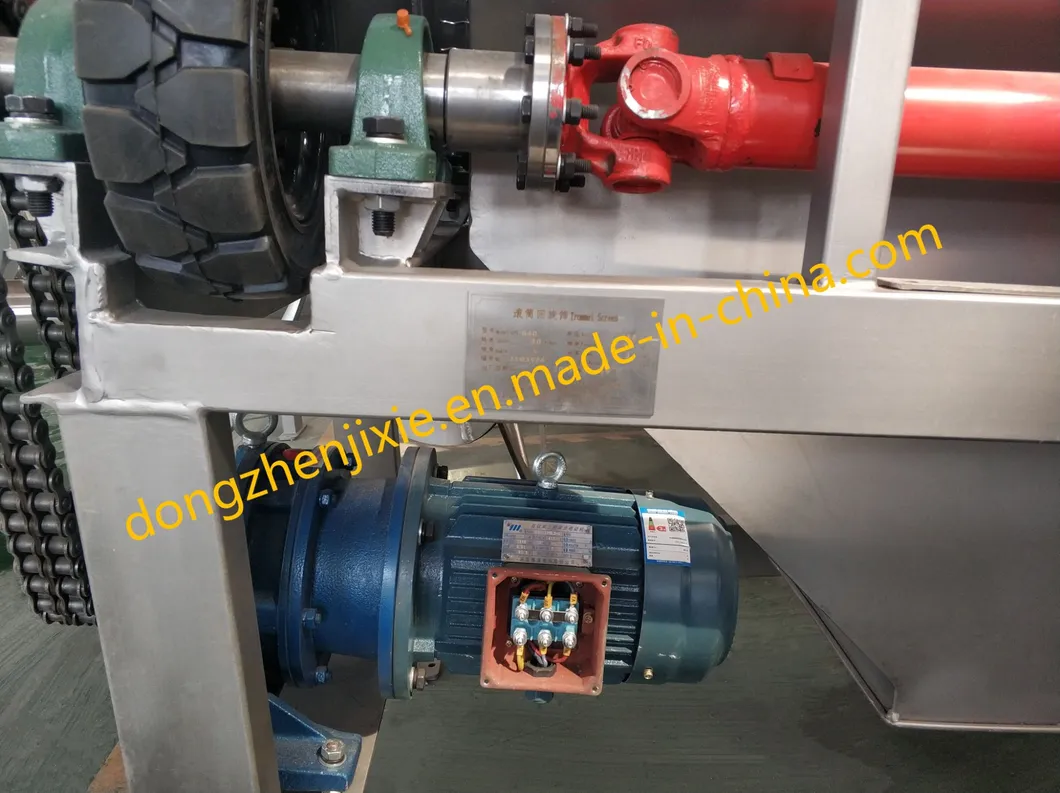

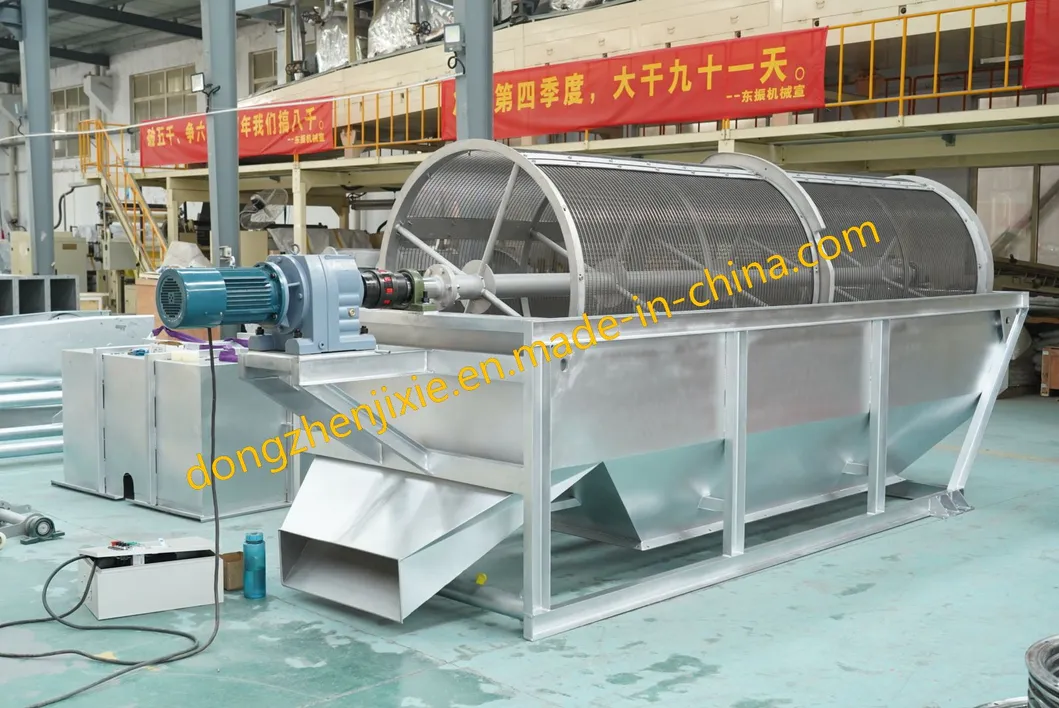

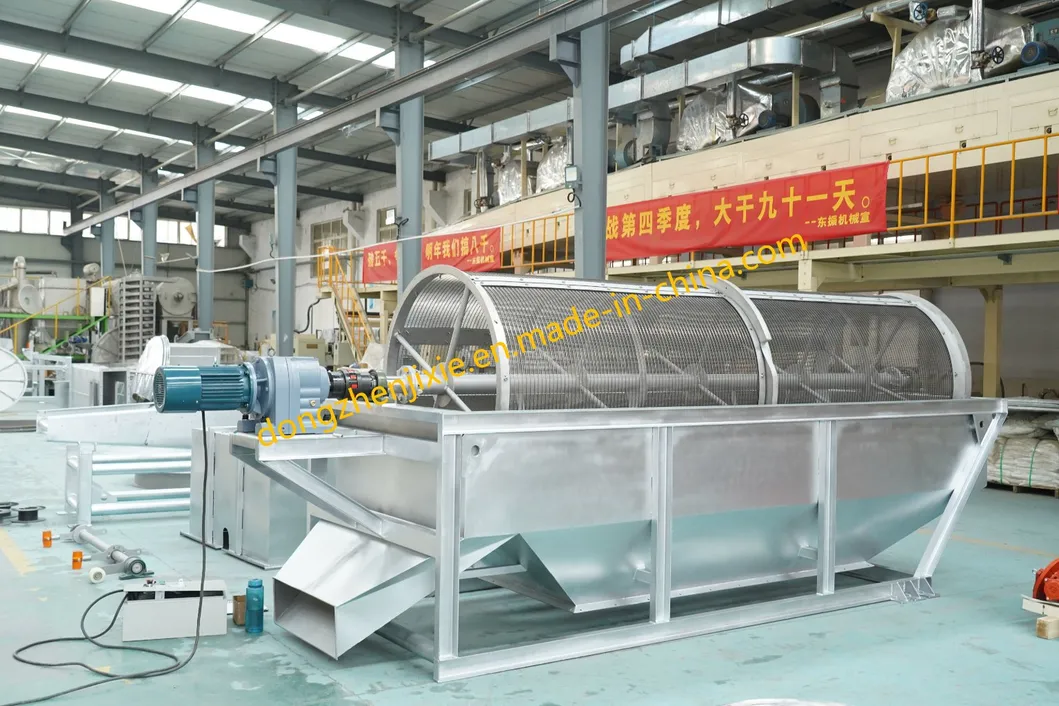

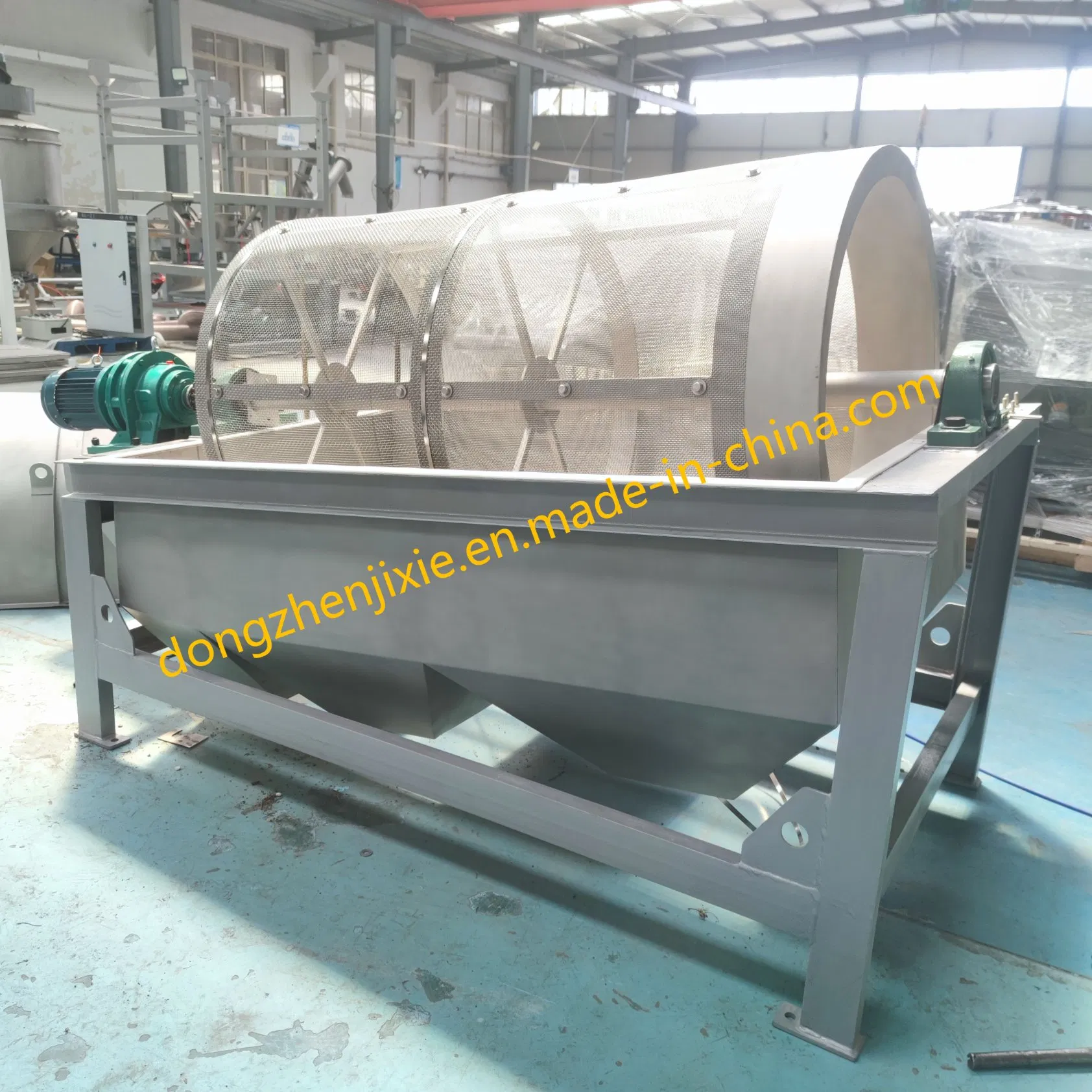

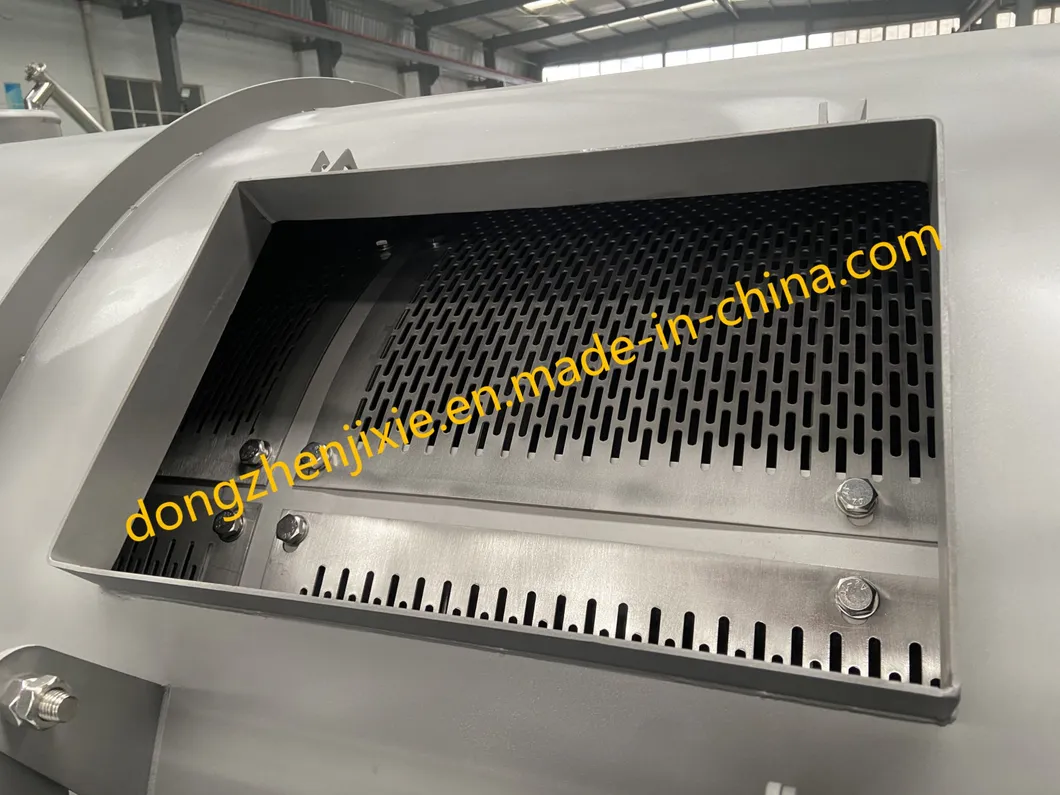

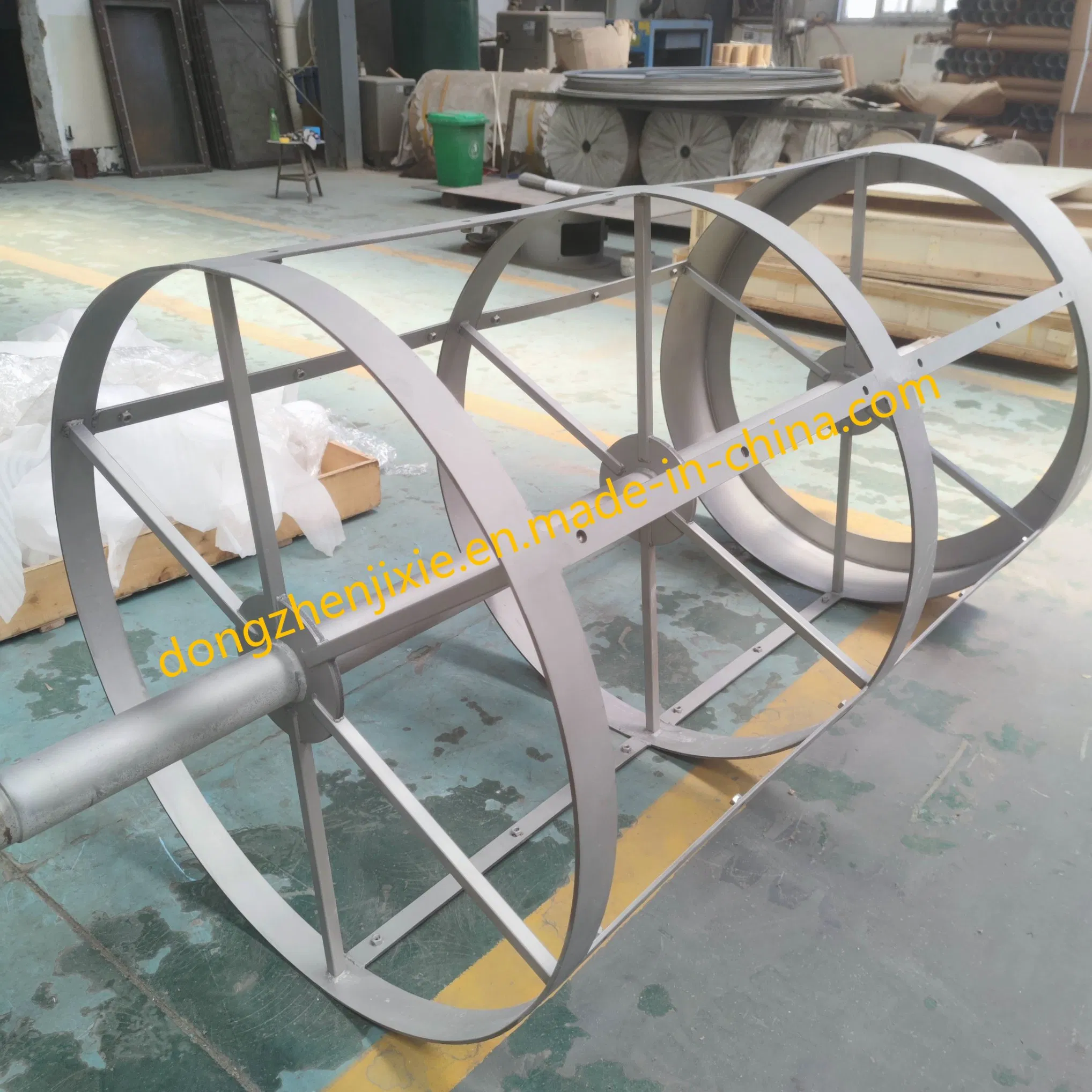

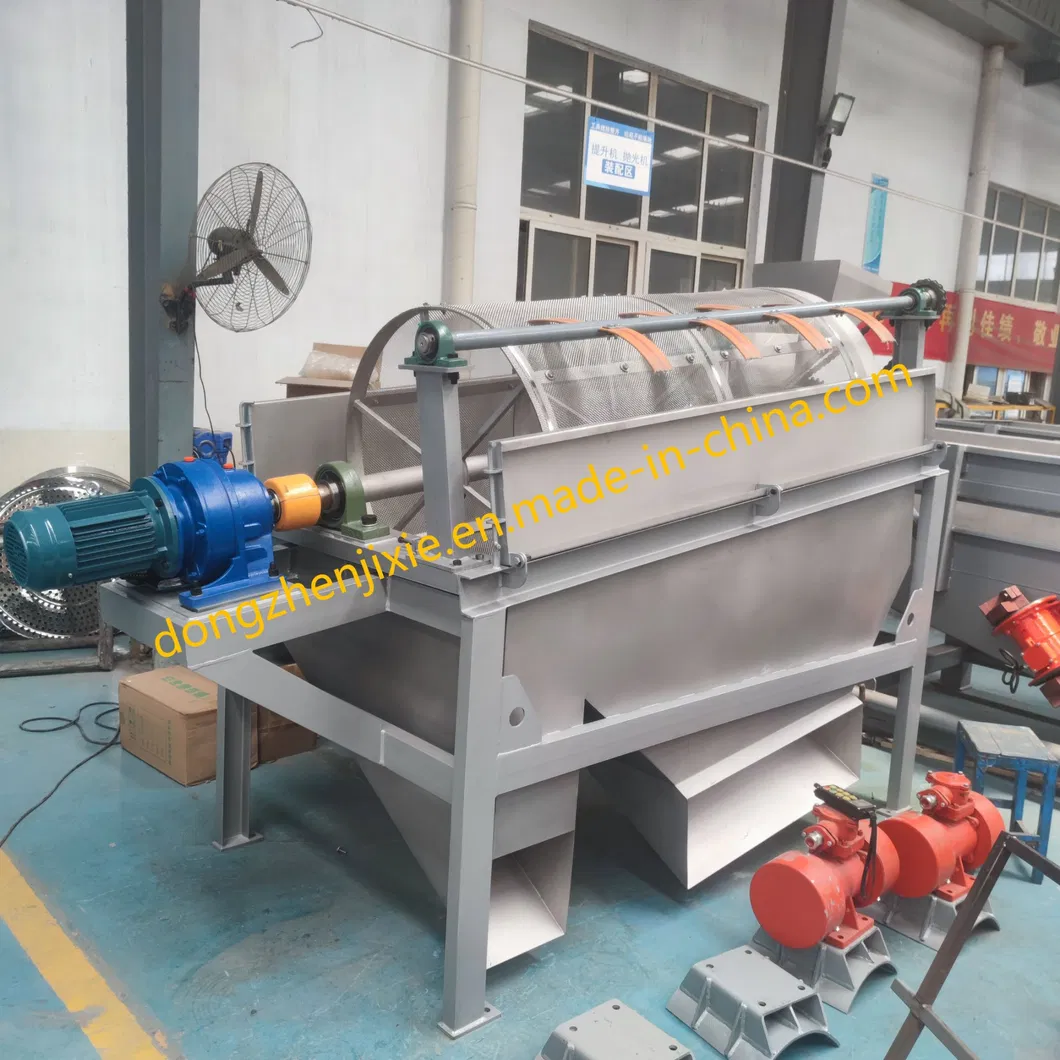

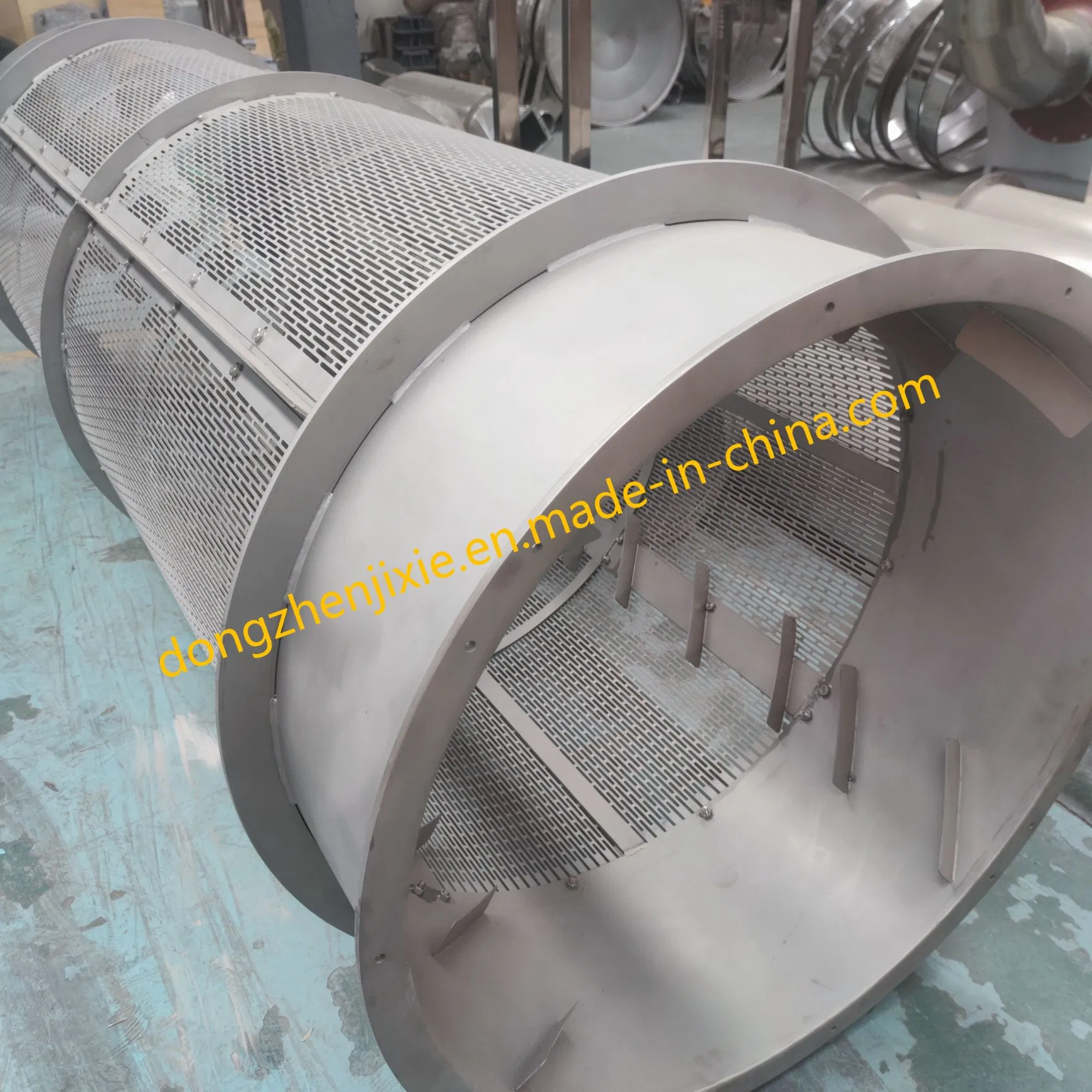

Detailed Photos

3

Technical Parameters

Model	Power(kw)	Drum diameter(mm)	Drum length(mm)	Screen size(mm)	Dimension(mm)
GT1015	3	1000	1500	Customization	300014002145
GT1020	3	1000	2000		346014002145
GT1225	4	1200	2500		414616002680
GT1530	5.5	1500	3000		446019002820
GT1545	7	1500	4500		596019003080
GT1848	11	1800	4800		650023004000
GT2055	15	2000	5500		750025004000

4

Range Of Application

Abrasive material and ceramic industry: building sand, mica, alumina, silica sand, abrasive, refractory material etc.
Metallurgy and mining industry: quartz sand, sand, ore, titanium oxide, zinc oxide, etc.
Mechanical industry: casting sand, charcoal, grafito, powder metallurgy, electromagnetic material and metal powder, etc.

5

Our Advantages

Designed to fit your operation: Customization to meet different capacity and working site requirements.
Free from pollution: Fully enclosed structure prevents dust pollution and improves working conditions.
Variable application range: Suitable for compost, chemical, coal, plastic, recycling, metallurgy, and minerals.
Superior design: Simple structure, easy maintenance, steady operation, and low energy consumption.

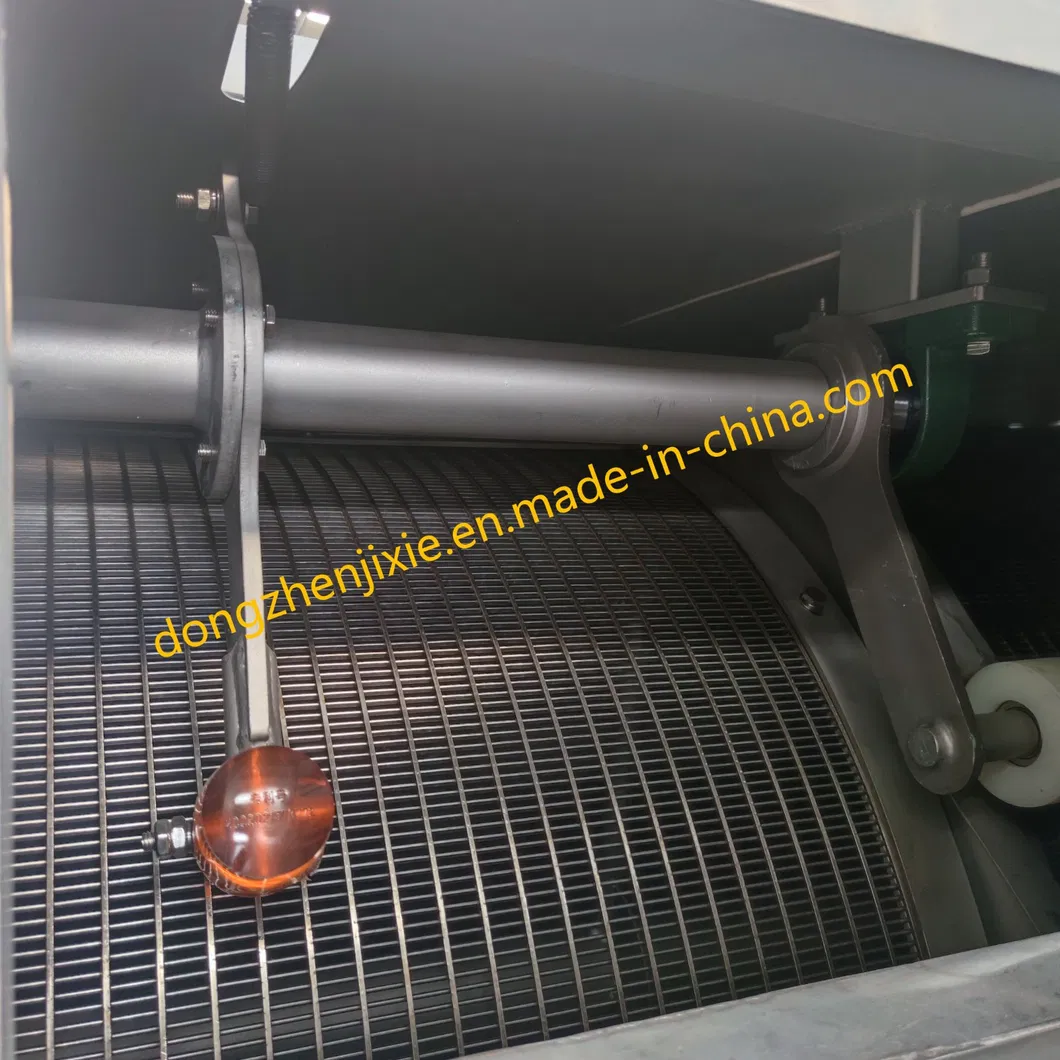

Less blockage: Equipped with an automatic cleaning brush on top to avoid screen blockage.
Long life span: Screen made of 16Mn for high strength and superior abrasion resistance.

6

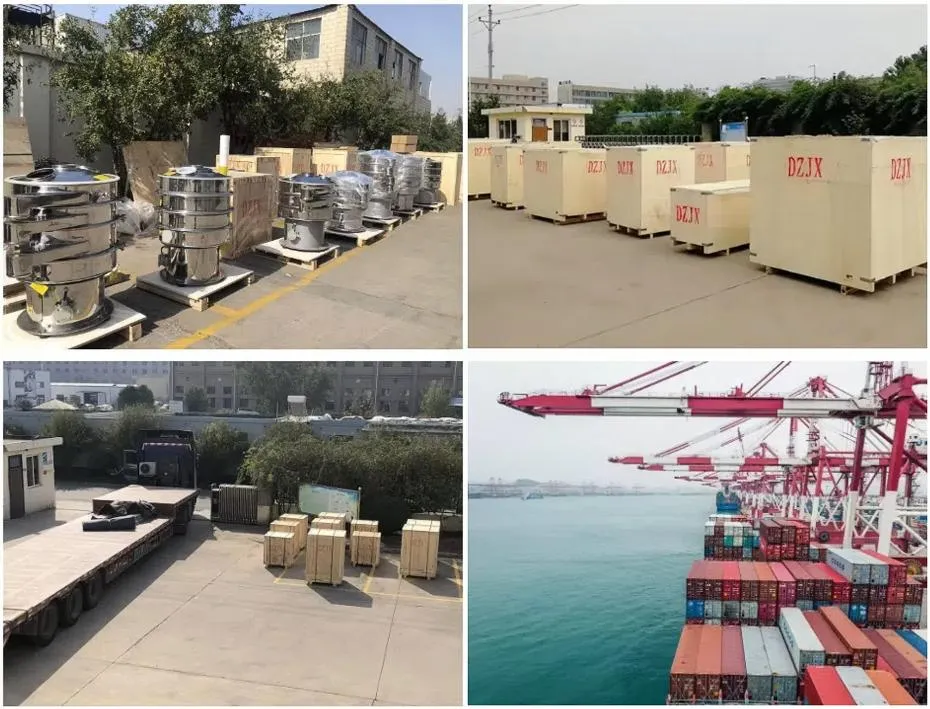

Packaging & Shipping

7

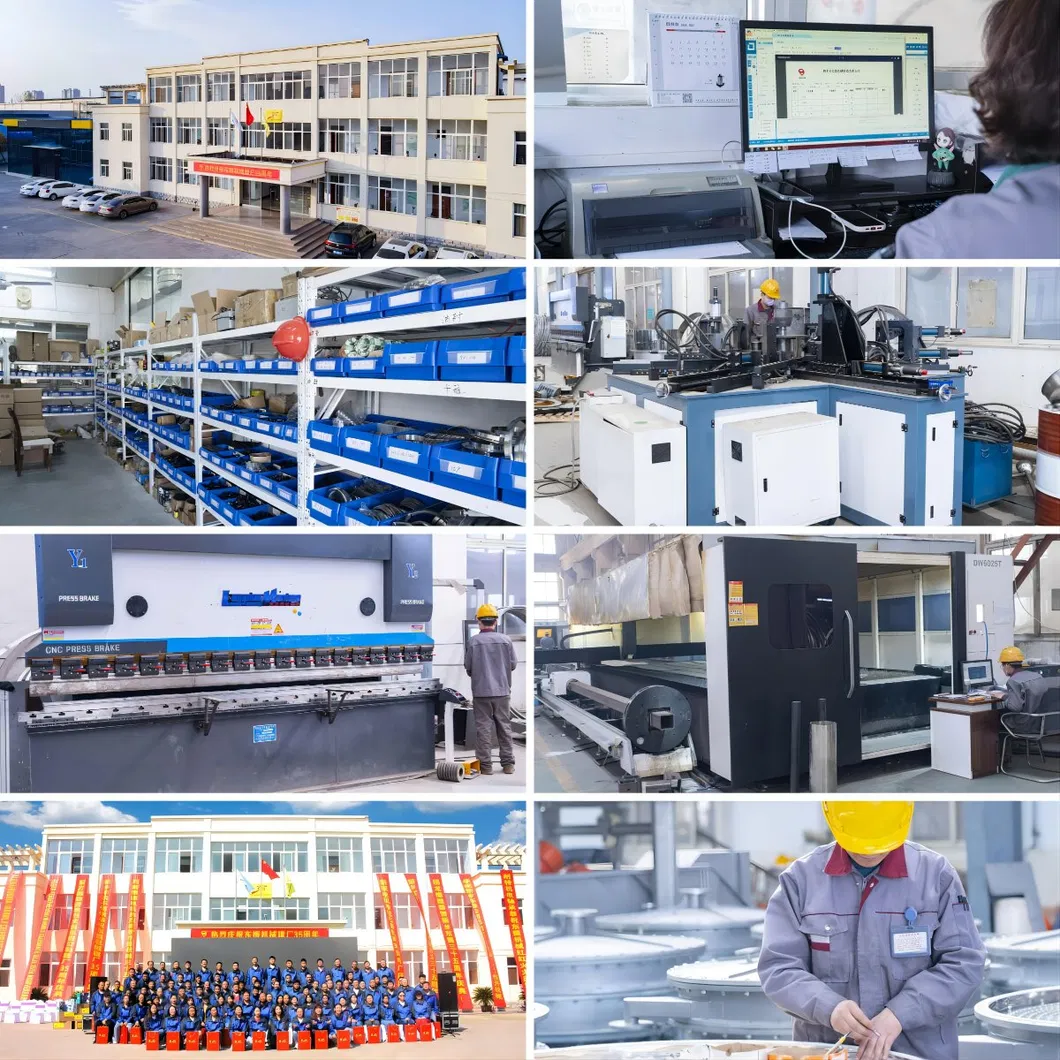

Professional Capability

36 years of professional production experience in rubber, food, medicine, and chemical equipment.
All raw materials sourced from well-known domestic and foreign manufacturers.
Extensive experience designing production lines for laundry detergent, flour, yeast, and more.
14,800m² factory area with a dedicated in-house R&D team.
Certified by ISO9001, CE, SGS, and Intertek for quality assurance.

?

Frequently Asked Questions

What factors are needed to get a precise quotation?

Material bulk density, mesh size, required capacity, granularity distribution, material requirements (carbon steel or stainless steel), and local voltage/frequency (Hz).

What is the standard delivery time?

7 to 15 days for general series products. Customized or batch products typically require 30 to 60 days depending on the specifications.

How is product quality ensured?

We use a dedicated quality control team and high-grade raw materials. Our equipment is known for being among the most durable in the industry.

What is the warranty and after-sales policy?

We offer a 12-month guarantee. During this time, we provide replacement parts for any damaged components (excluding vulnerable parts).

Can I visit the production site?

Yes, company inspections are always available. Customers or their representatives are welcome to visit our site for verification and negotiation.

Are custom sizes available for the trommel screen?

Yes, materials and dimensions can be fully customized based on specific operational needs and site constraints.
