Bto-12 Galvanized Security Ribbon Residential Anti-Climb Boundary System

🔹 Basic Information

Application

Protecting Mesh

Finish

Electro Galvanized

Razor Barbed Type

Cross Razor

Wire Gauge

12x12 BWG

Coil Outside Diameter

500mm

Transport Package

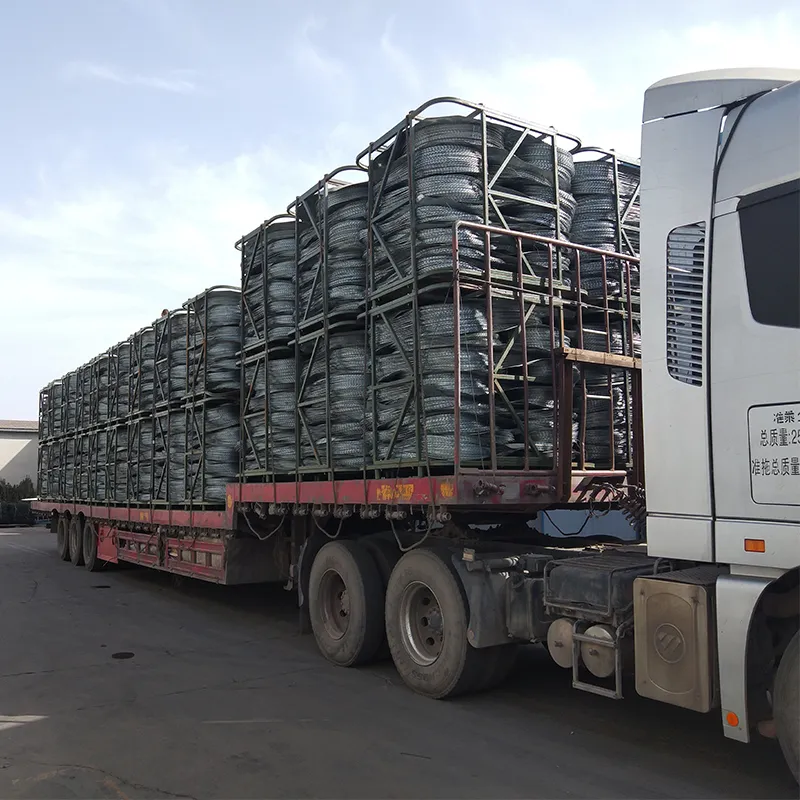

Packing / Palletizing

Specification

50*50*10

HS Code

7313000000

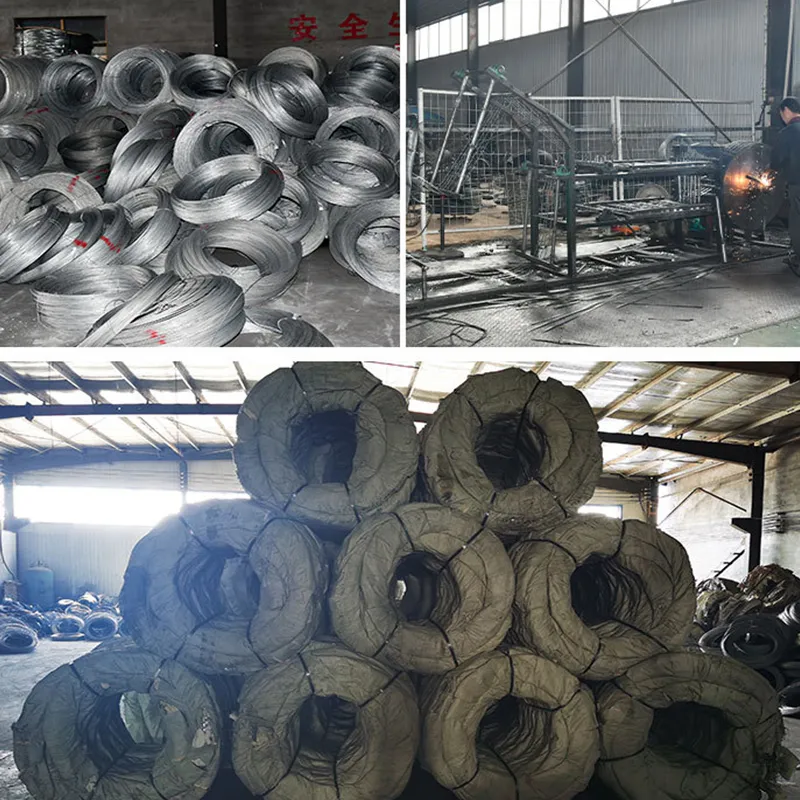

Production Capacity

200 Tons Per/Month

📦 Packaging & Delivery

Package Size

10.00cm * 50.00cm * 50.00cm

Package Gross Weight

10.000kg

🛡️ Product Description

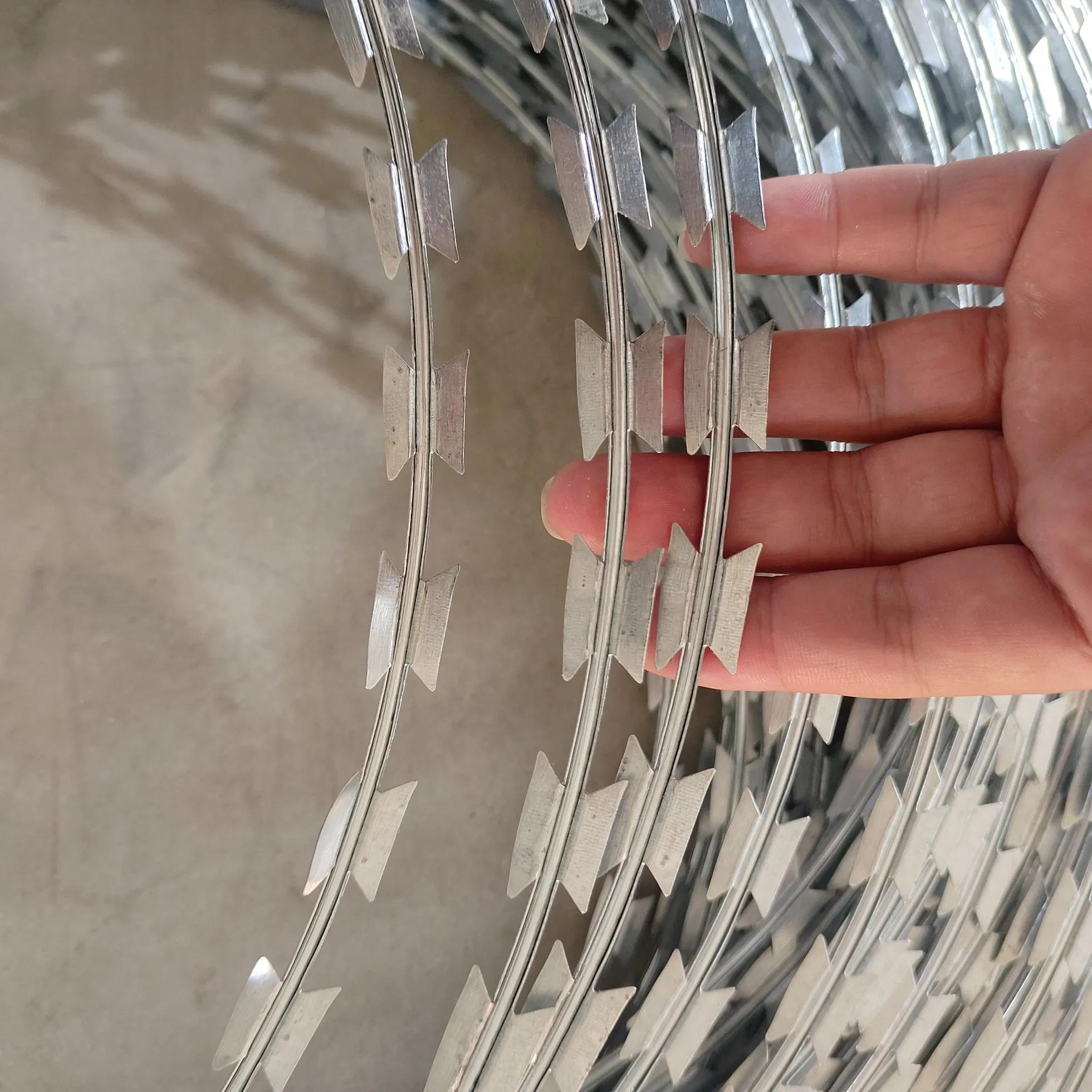

BTO-12 Galvanized Security Ribbon | Residential Anti-Climb Boundary System

The blade-like structure of the wire netting is sharp and densely arranged. Once a climber comes into contact with it, the blades will cut the skin or hook onto the clothing, making it difficult for the climber to climb, thereby effectively preventing illegal intruders from climbing over the fence.

✨ Razor Barbed Wire Features

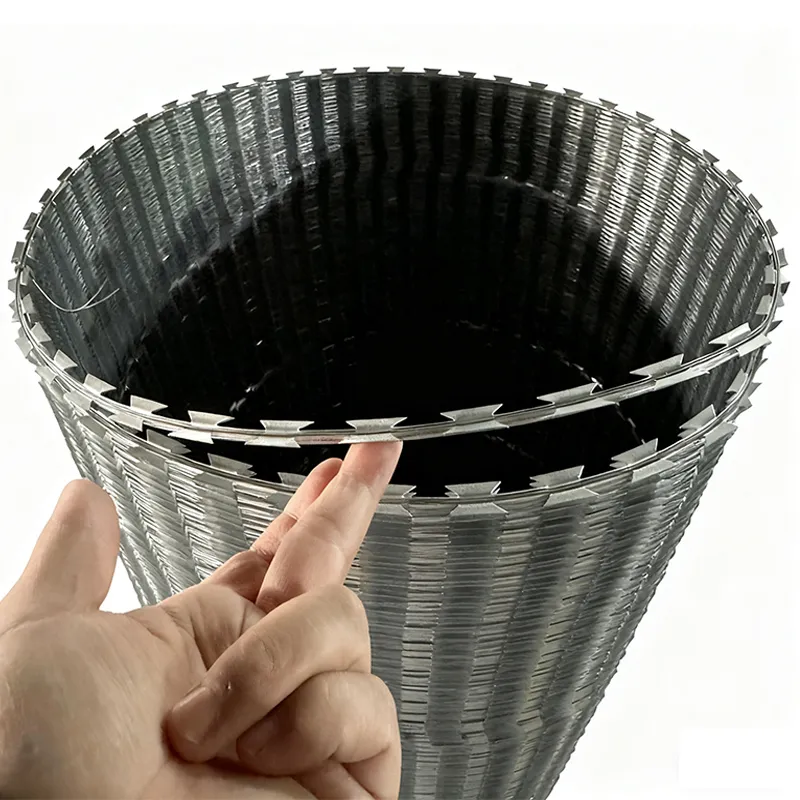

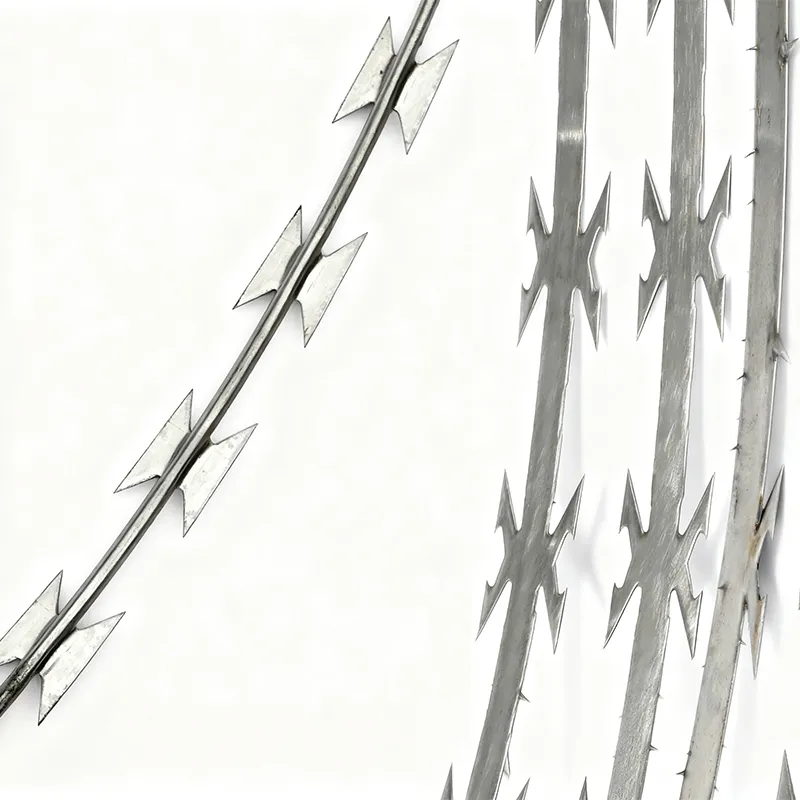

Variety of blade shapes: rhombic blade, trapezoidal blade, rectangular blade, triangular blade, serrated blade. We offer genuine materials and products that pass quality inspections.

🌀 Spiral Structure & Stock

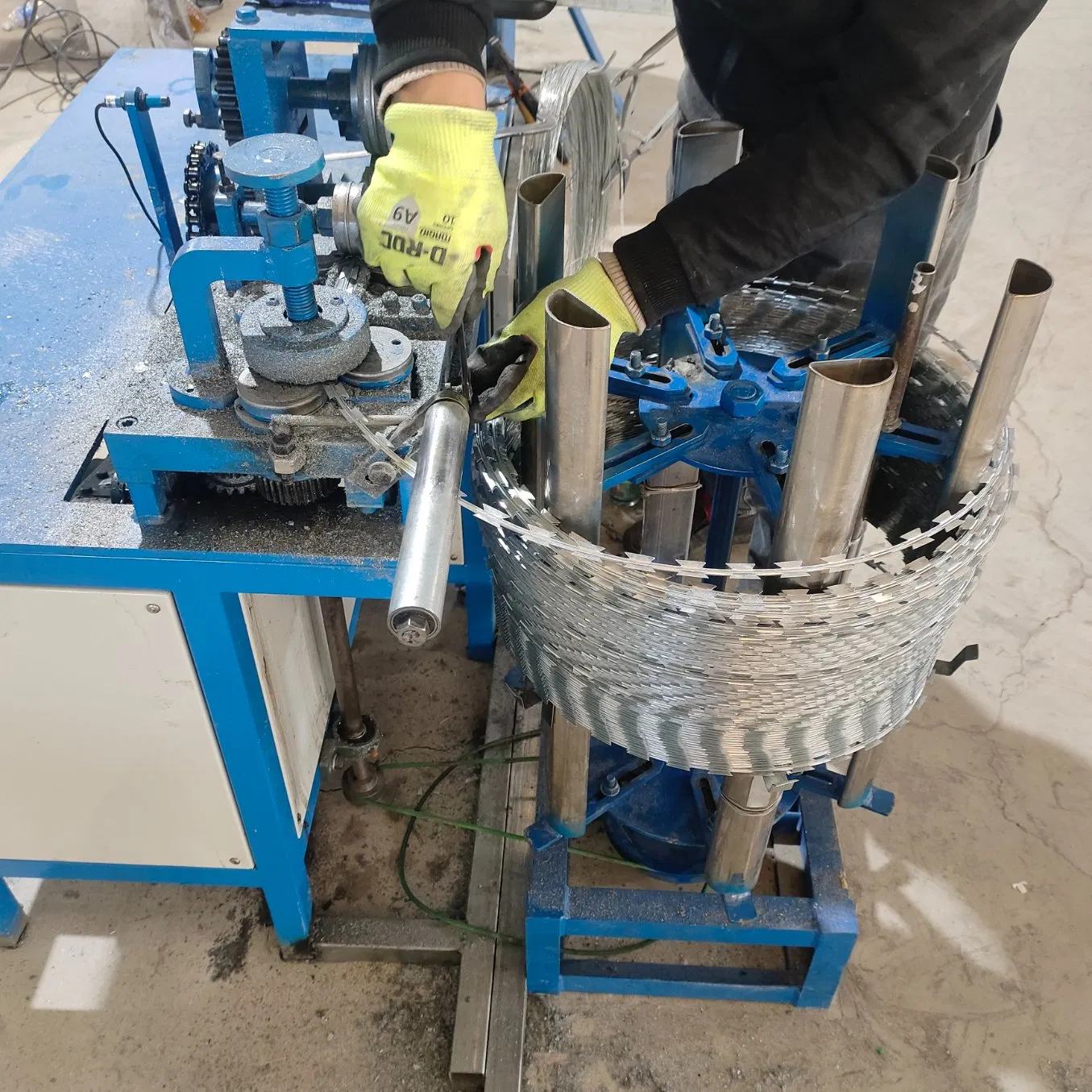

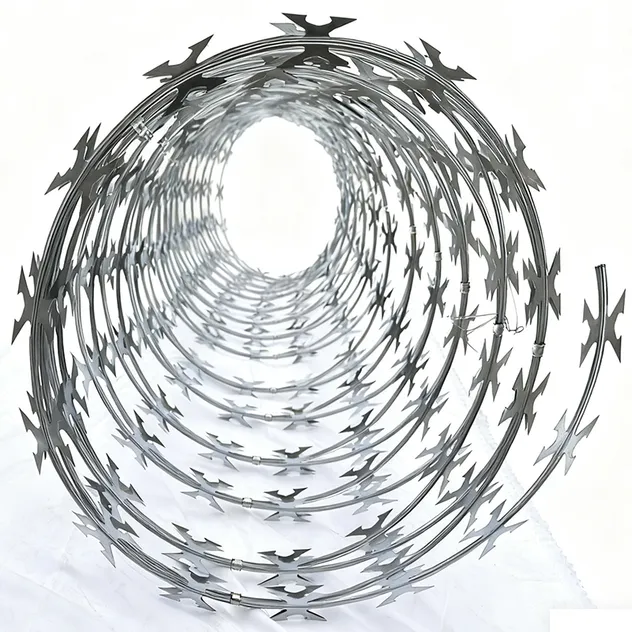

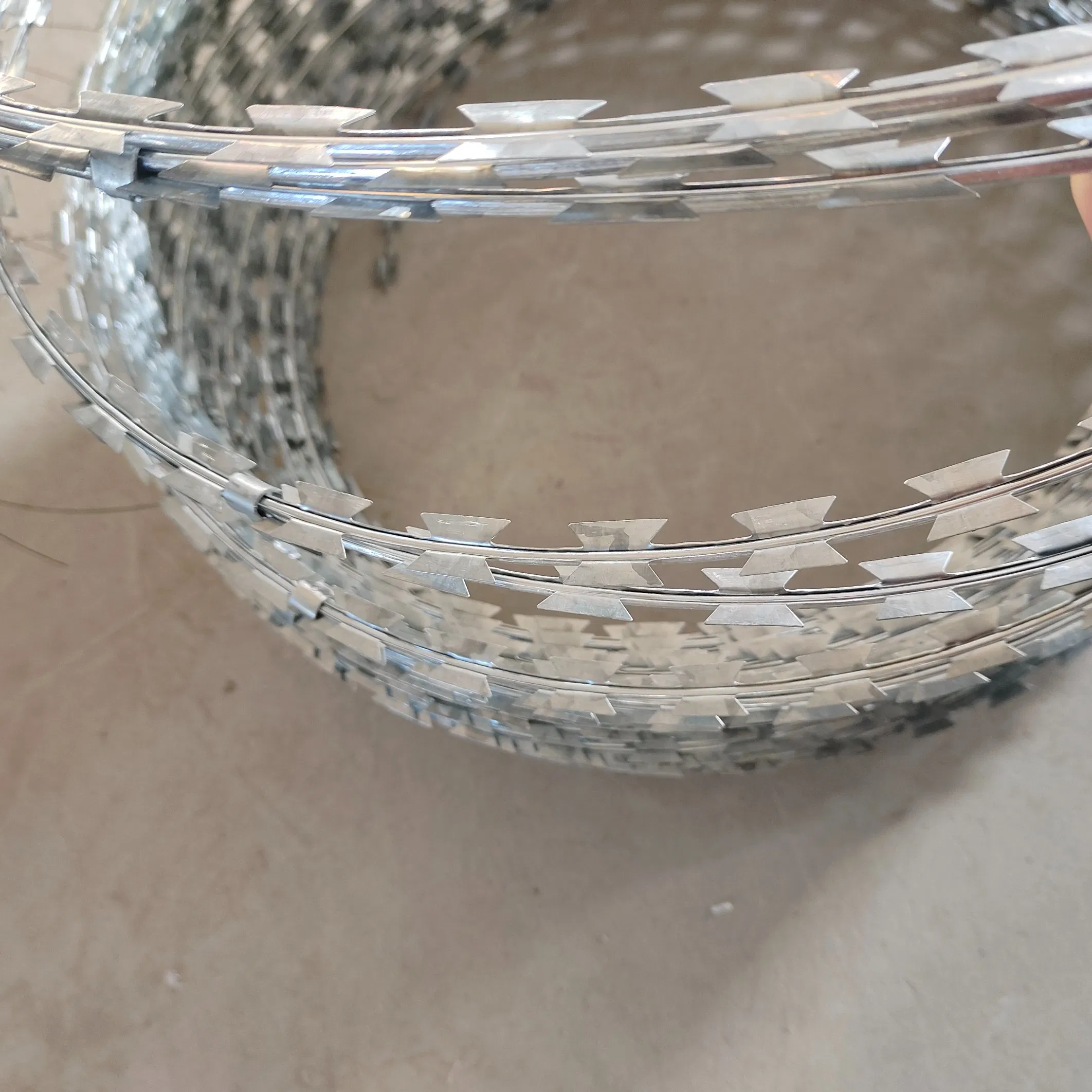

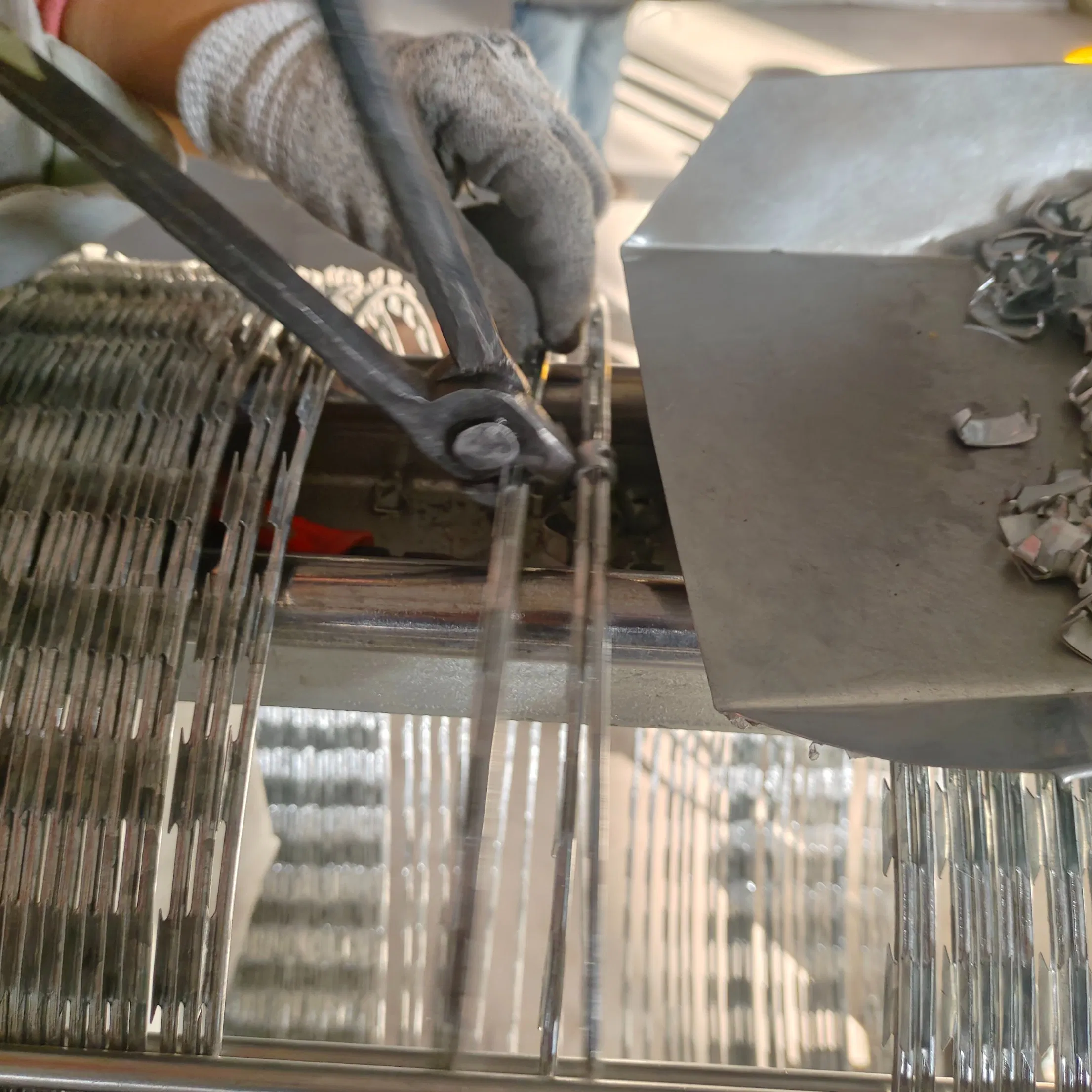

The razor wire usually has a spiral shape. This structure gives it excellent elasticity and flexibility. There are 3 to 7 clips in every 2 loops, and the loops interlock with each other. When pulled apart, it forms a stable spiral shape, which can better cover the protection area and play a role in blocking and intimidating.

🌍 Product Application Scope

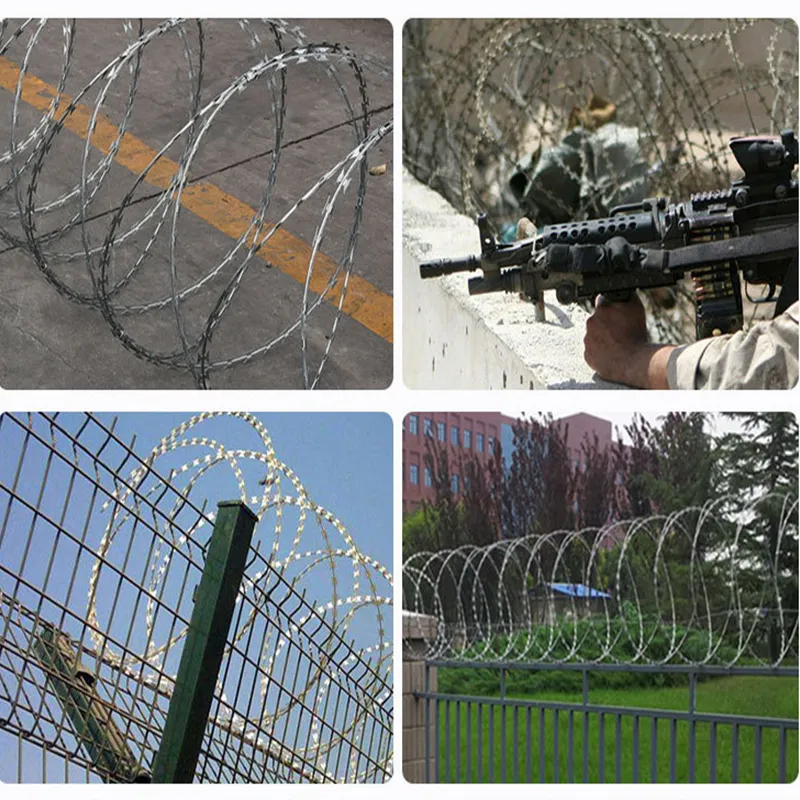

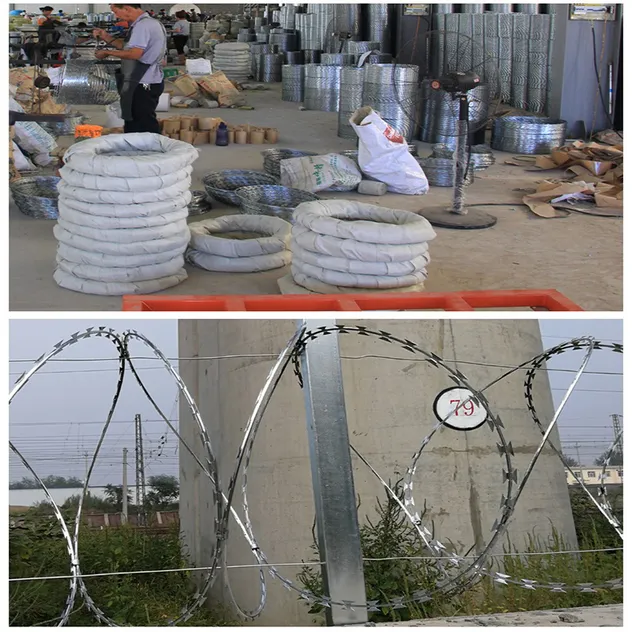

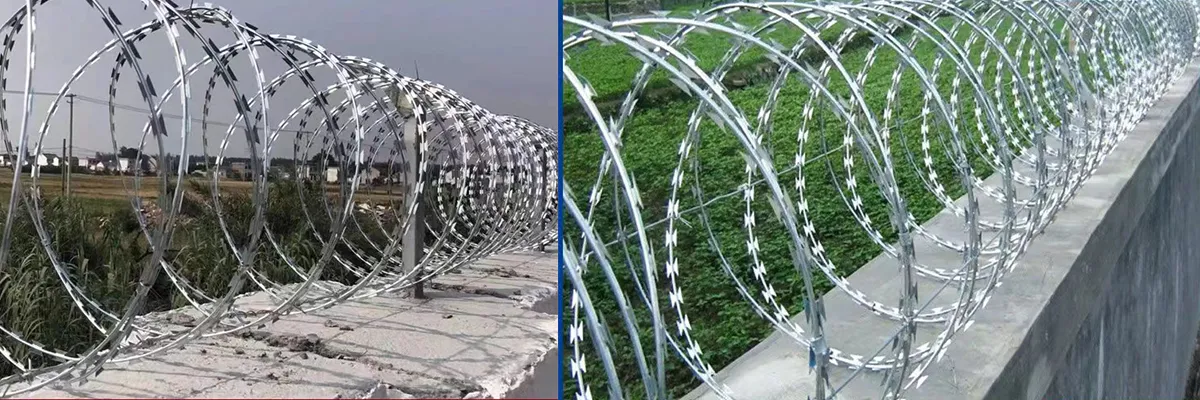

The blade wire rope, due to its high strength in terms of protection and deterrent effect, is used in various fields such as prisons and detention centers, high-risk industrial areas, places for storing valuable items, special protected areas, transportation facilities, and border defense lines.

📊 Technical Specifications

Material: Hot-dip galvanized sheet and wire or Stainless steel sheet and wire (ALSI 430 and ALSI 304)
Outside diameter: 450mm to 980mm | No. of Loops: 33, 56 | CLIPS: 3, 5

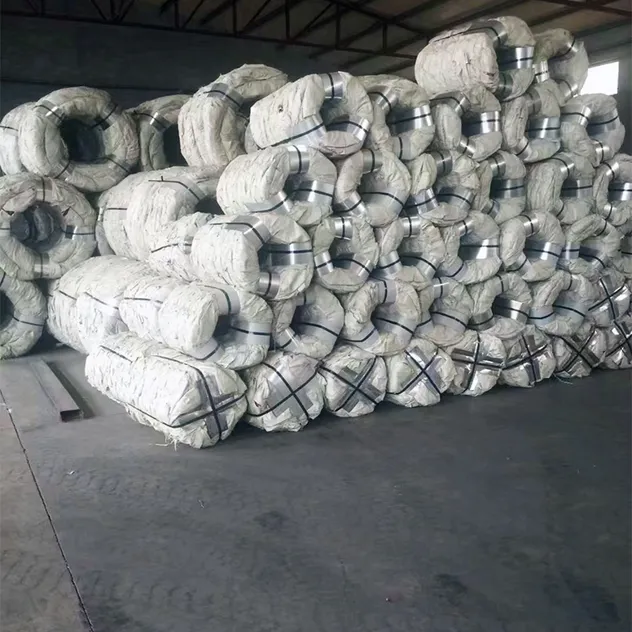

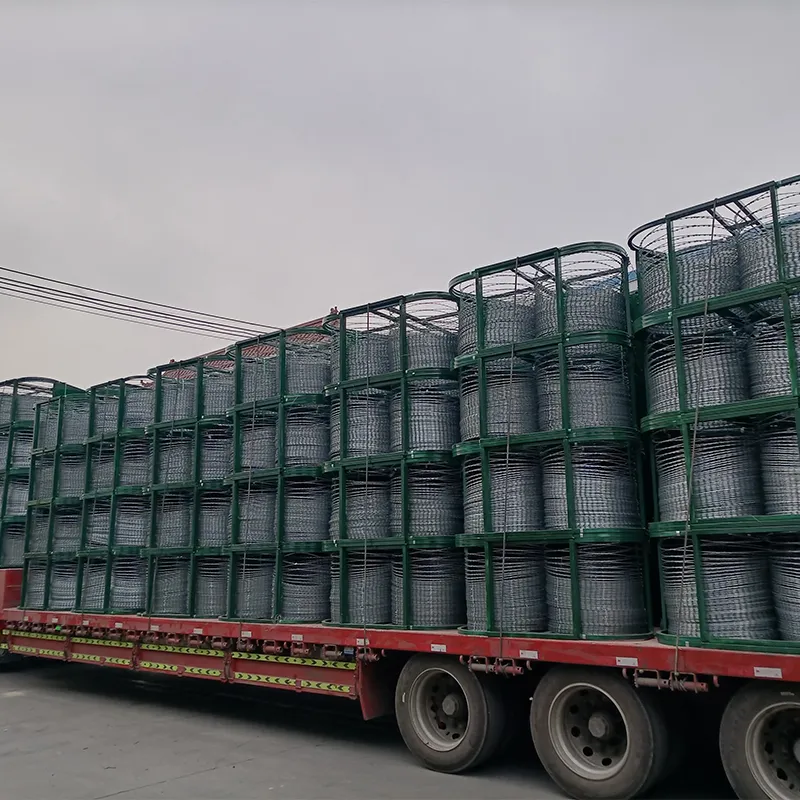

Packing: Inner proof paper, outside weave bag or Carton box

Model	Thickness	Wire Dia	Barb Length	Barbed Width	Barb Spacing
BTO-10	0.5 ± 0.05 mm	2.5 ± 0.1mm	10 ± 1mm	13 ± 1mm	26 ± 1mm
BTO-12	0.5 ± 0.05 mm	2.5 ± 0.1mm	12 ± 1mm	15 ± 1mm	26 ± 1mm
BTO-18	0.5 ± 0.05 mm	2.5 ± 0.1mm	18 ± 1mm	15 ± 1mm	34 ± 1mm
BTO-22	0.5 ± 0.05 mm	2.5 ± 0.1mm	22 ± 1mm	15 ± 1mm	34 ± 1mm
BTO-28	0.5 ± 0.05 mm	2.5 ± 0.1mm	28 ± 1mm	15 ± 1mm	53 ± 1mm
BTO-30	0.5 ± 0.05 mm	2.5 ± 0.1mm	30 ± 1mm	21 ± 1mm	54 ± 1mm
CBT-60	0.6 ± 0.05 mm	2.5 ± 0.1mm	60 ± 2mm	32 ± 1mm	102 ± 1mm
CBT-65	0.6 ± 0.05 mm	2.5 ± 0.1mm	65 ± 2mm	21 ± 1mm	102 ± 1mm

❓ Frequently Asked Questions

Are you a factory or a trading company?

We are an integrated enterprise combining industry and trade. The factory and trade operations are managed under the same family of services to ensure quality and efficiency.

Can you offer free samples?

Yes, we can provide samples. Usually, the customer needs to pay the freight initially, but the freight cost will be returned to you once the formal order is confirmed.

Can I customize the products?

Absolutely. We are capable of producing the required products as long as the specific drawings or technical specifications are provided.

How about the delivery time?

For normal size products, we maintain stock for quick delivery. Even for large orders without existing stock, the delivery time typically will not exceed 15 days.

How can I trust your quality for our first business?

Our quality and competitive pricing have won numerous customers over the years. We provide samples before orders and welcome any kind of third-party inspections or factory visits.

What materials are available for the razor wire?

We primarily use hot-dip galvanized sheet and wire, as well as high-grade stainless steel sheet and wire (ALSI 430 and ALSI 304) for enhanced corrosion resistance.
