Heavy-Duty Concertina Razor Barbed Wire Security Fence System

1 / 5

Heavy-Duty Concertina Razor Barbed Wire Security Fence System

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

ℹ️

Basic Specifications

Model NO.

JS-FRBW002

Application

Protecting Mesh, Fence Mesh

Finish

Hot Dipped Galvanized

Razor Barbed Type

Single Razor

Wire Gauge

12x12 BWG

Barbed Distance

34mm

Barb Length

22mm

Coil Outside Diameter

500mm

Color

Galvanized

Common Sizes

Bto-10, Bto-22, Bto-30, Cbt-60, Cbt-65

Common Material

HDG, PVC Coated, SS430, SS304

Production Capacity

3000 Rolls/Day

Origin

China

Transport Package

by Carton or Pallet

🛡️

Product Description

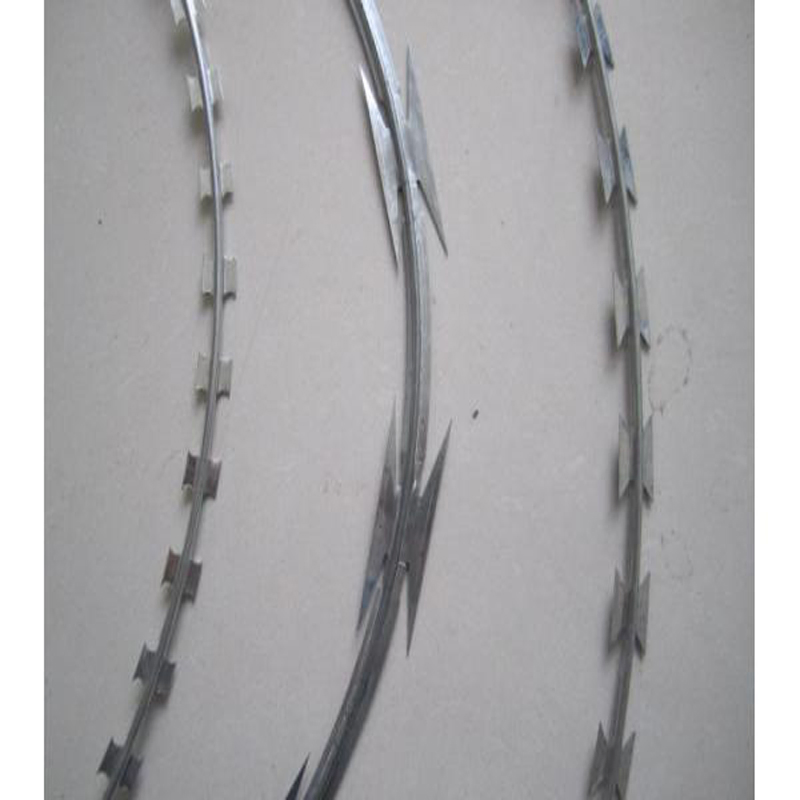

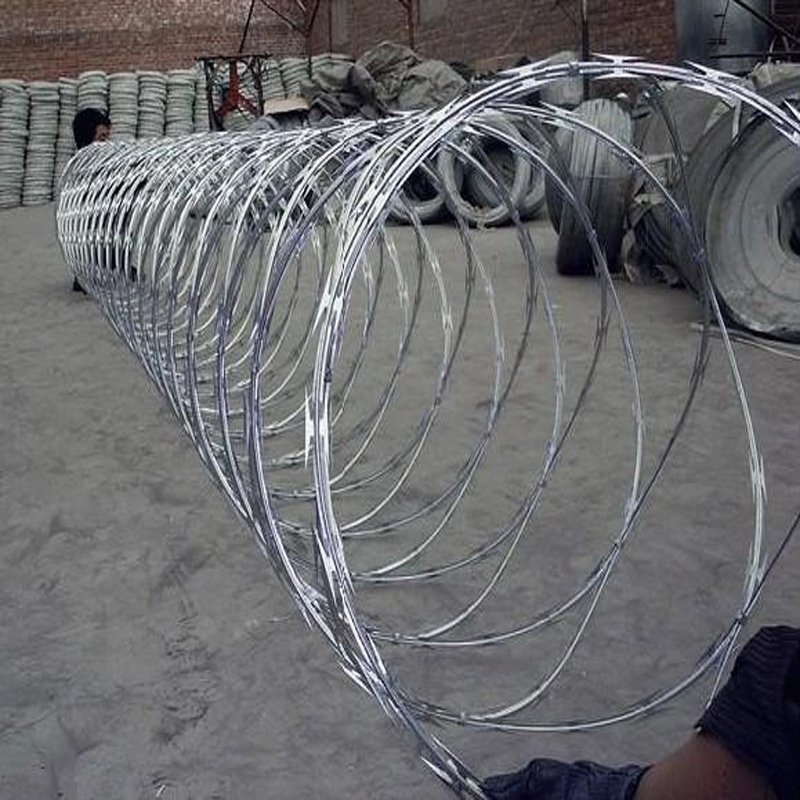

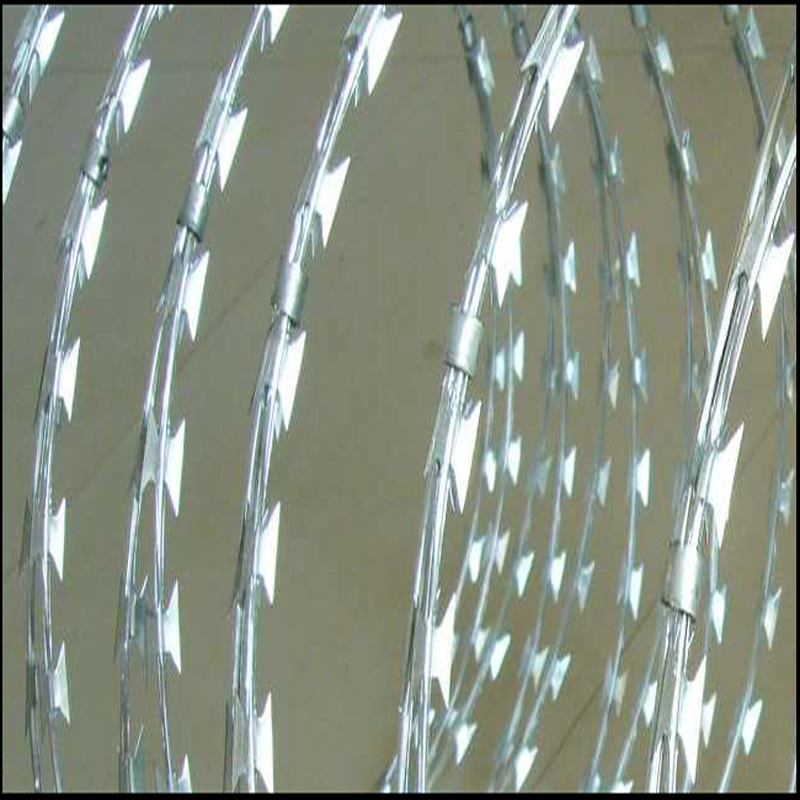

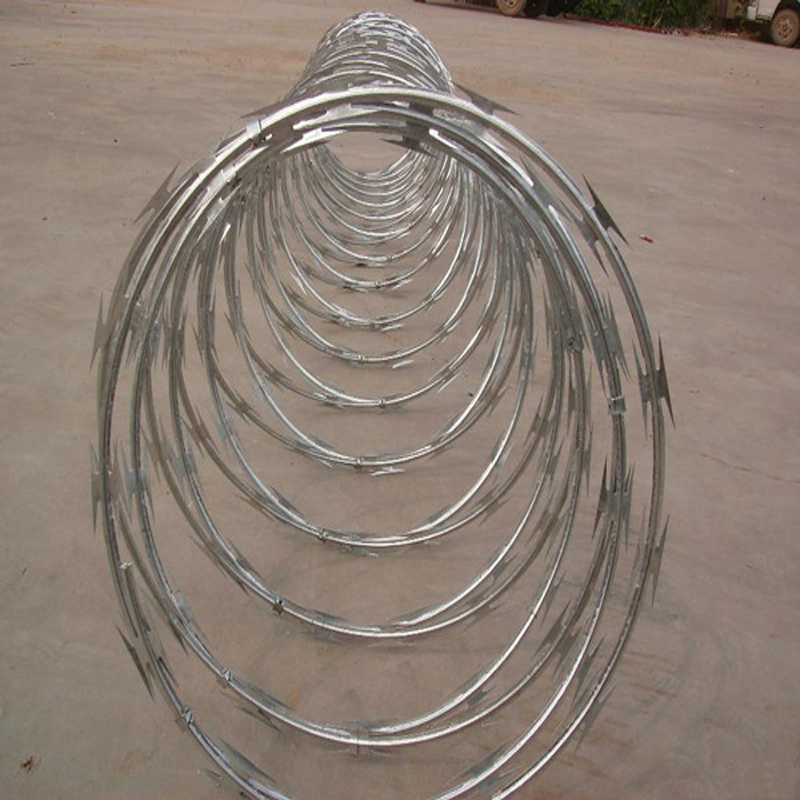

CBT-65 Concertina Razor Barbed Wire

Also known as: Razor Barbed Wire, Concertina Barbed Wire, Blade Wire, or Razor Barbed Tape.

We are capable of producing traditional razor wire, razor wire in straight lines, and razor wire in concertina single coils or crossed coils. A variety of blade types and sizes are available to meet specific security requirements.

Concertina razor barbed wire is a modern security fencing material fabricated with razor-sharp steel blades and high-tensile wire. Barbed Tape can be installed to achieve the result of frightening and stopping aggressive perimeter intruders. With piercing and cutting razor blades mounted at the top of the wall, special designs make climbing and touching extremely difficult.

Specification of Concertina Razor Wire
Outside Diameter	No. of Loops	Standard Length per Coil	Type	Notes
450mm	33	7-8M	CBT-60.65	Single coil
500mm	56	12-13m	CBT-60.65	Single coil
700mm	56	13-14m	CBT-60.65	Single coil
960mm	56	14-15m	CBT-60.65	Single coil
450mm	56	8-9m (3 clips)	CBT-10.18.22.28.30	Cross type
600mm	56	10-11m (3 clips)	CBT-10.18.22.28.30	Cross type
800mm	56	11-13m (5 clips)	CBT-10.18.22.28.30	Cross type
980mm	56	14-16m (5 clips)	CBT-10.18.22.28.30	Cross type

❓

Frequently Asked Questions

What are the main applications for razor barbed wire?

It is primarily used for protecting mesh and fence mesh to secure perimeters. It acts as a physical and psychological deterrent against intruders.

What materials are used for the finish of the wire?

The most common finish is Hot Dipped Galvanized (HDG). Other available materials include PVC Coated, Stainless Steel 430, 304, 304L, and 316L for enhanced corrosion resistance.

What is the difference between Single Coil and Cross Type razor wire?

Single coils run in a simple loop without clips, while Cross Type (Concertina) uses clips to fasten adjacent loops of wire, creating a more dense and difficult-to-penetrate diamond pattern.

Can you provide special sizes and diameters?

Yes, in addition to common diameters like 450mm and 600mm, we can produce special diameters such as 200mm, 300mm, or up to 1080mm, and special types like BTO-18 or CBT-25.

How is the product packaged for international transport?

The razor wire coils are typically packed in cartons or on pallets to ensure safe handling and protection during transit.

What is the production capacity for this model?

Our current production capacity is approximately 3000 rolls per day, ensuring timely delivery for large-scale security projects.
