Technical Specifications
Model NO.
Q32 Shot Blasting Machine
Application
Steel Plate Pre-Treatment
Cleanliness
High Cleanliness (SA 2.5)
Core Components
PLC, Engine, Bearing, Gearbox, Motor
Electric Parts
Siemens, Omron, Chint
Product Overview

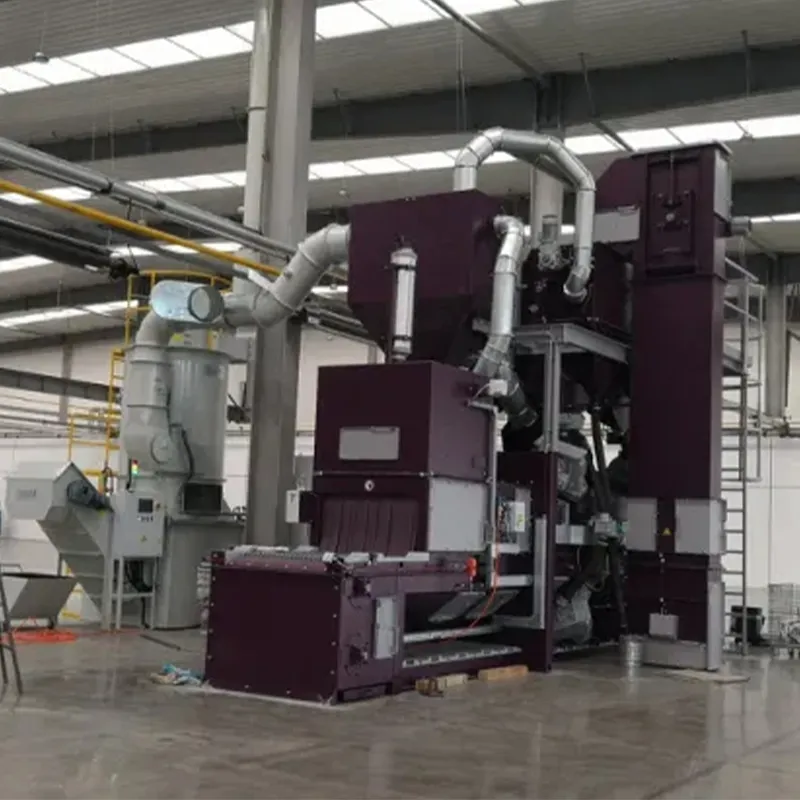

Track-passing shot blasting machines are versatile, compact, and highly efficient. Designed to offer high-production cleaning of various parts and castings, these machines integrate seamlessly into existing logistics workflows. They provide a cost-effective solution for batch cleaning, deburring, descaling, and peening a wide variety of products.
✓
Versatile Treatment: Excellent for all-round and continuous blasting of flat or complex voluminous components.
✓
Precision Engineering: Equipped with 4 or 8 high-power blast wheels to reach difficult "pockets" or recessed areas.
✓
Durable Conveyor: Highly wear-resistant wire mesh belt with tension adjustment for reliable part transport.
Product Parameters
| Type |
Q698 |
Q6912 |
Q6915 |
Q6920 |
Q6925 |
Q6930 |
Q6940 |
| Effective Cleaning Width (mm) |
800 | 1200 | 1500 | 2000 | 2500 | 3000 | 4000 |
| Room Feed-in Size (mm) |
1000*400 | 1400*400 | 1700*400 | 2200*400 | 2700*800 | 3200*800 | 4200*400 |
| Speed of Wheel Conveyer (m/min) |
0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 |
| Quantity of Shot Blasting (kg/min) |
4*180 | 4*250 | 4*250 | 6*250 | 6*250 | 6*360 | 8*360 |
| Total Power (kw) |
90 | 78.3 | 113.5 | 156.6 | 204.8 | 224.55 | 293.6 |

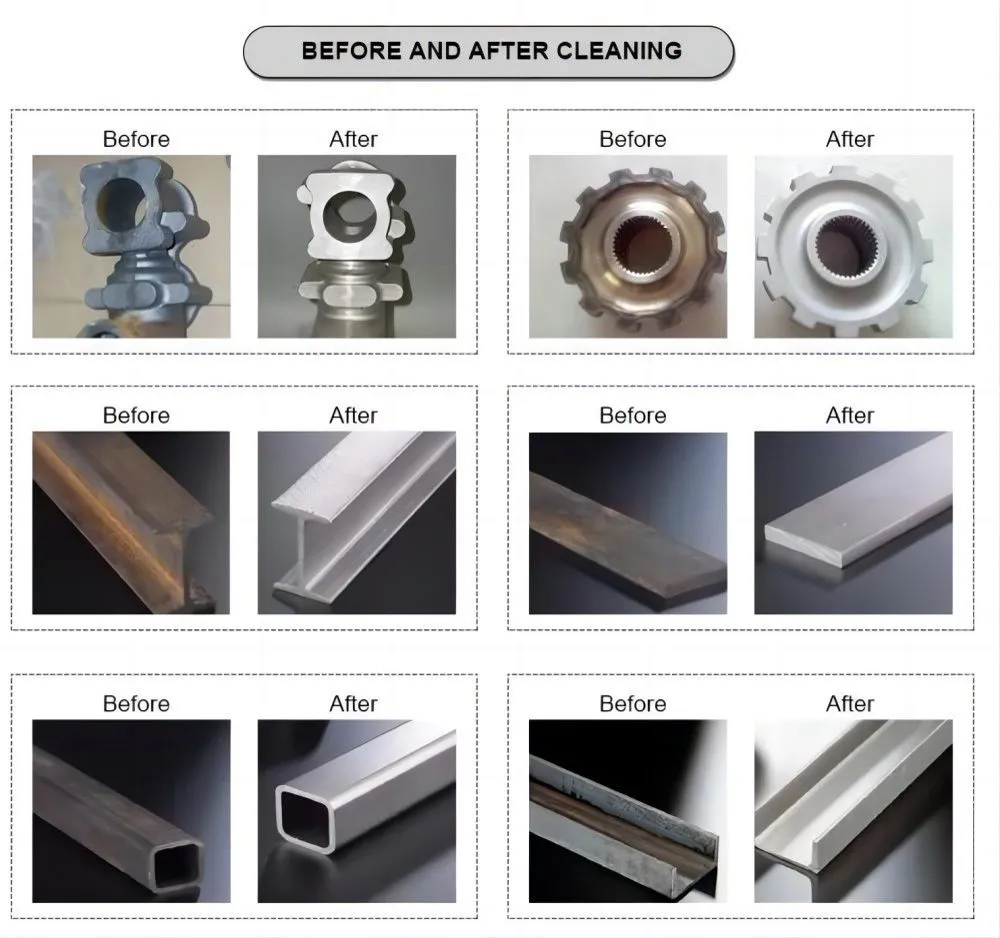

Cleaning Performance & Certifications
Logistics & After-Sales Support
Packaging Details: 40'HQ container
Lead Time: Approximately 30 days
1
Installation: We provide technician assistance for machine installation, commissioning, and staff training.
2
Warranty: 12-month quality guarantee from the date of commissioning completion.
3
Documentation: Full English documentation including wiring diagrams, manuals, and maintenance guides provided.
Frequently Asked Questions
Q: How many days are required to produce this machine?
A: Standard machines are often in stock. Specially designed customized machines typically take 30 to 50 days from engineering design to completion.
Q: How is quality control managed?
A: Quality control is prioritized from start to finish. Each machine is fully assembled and undergoes rigorous testing before shipment.
Q: What is the machine's quality guarantee?
A: We offer a one-year quality guarantee. We utilize world-famous brand components to ensure the machine remains in perfect working condition.
Q: Do you provide overseas installation and commissioning?
A: Yes, we provide overseas services. Small machines usually take 5 days for setup, while larger systems may take 20 to 60 days.
Q: Can I trust the machine will match my order specifications?
A: Absolutely. We deliver high-quality machinery based on the confirmed order. Our culture is built on innovation, quality, integrity, and efficiency.
Q: What materials can this machine process?
A: The machine is designed for metal and coil materials, specifically for steel plate pre-treatment, burnishing, and descaling.
