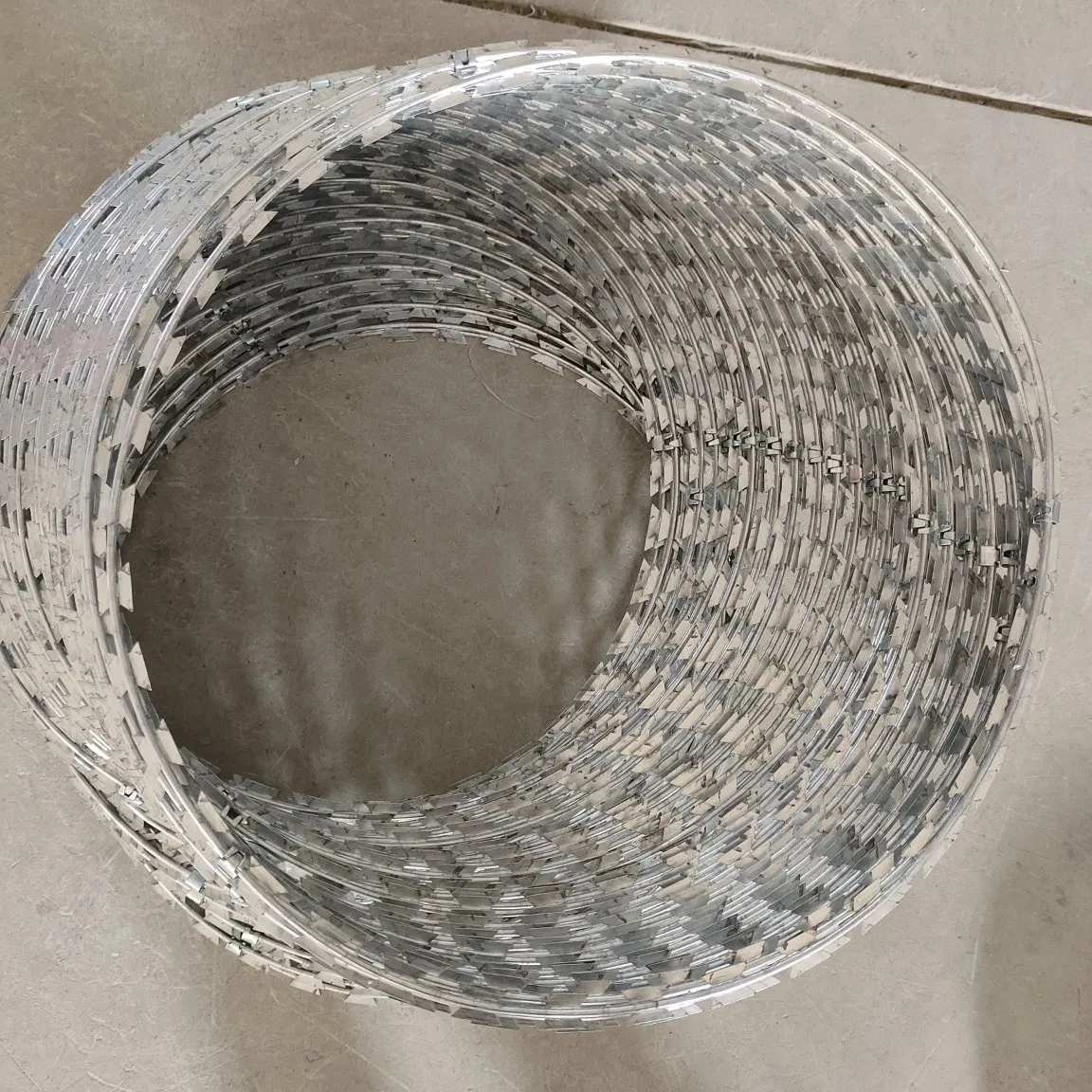

The blade-like structure of the wire netting is sharp and densely arranged. Once a climber comes into contact with it, the blades will cut the skin or hook onto the clothing, making it difficult for the climber to climb, thereby effectively preventing illegal intruders from climbing over the fence.

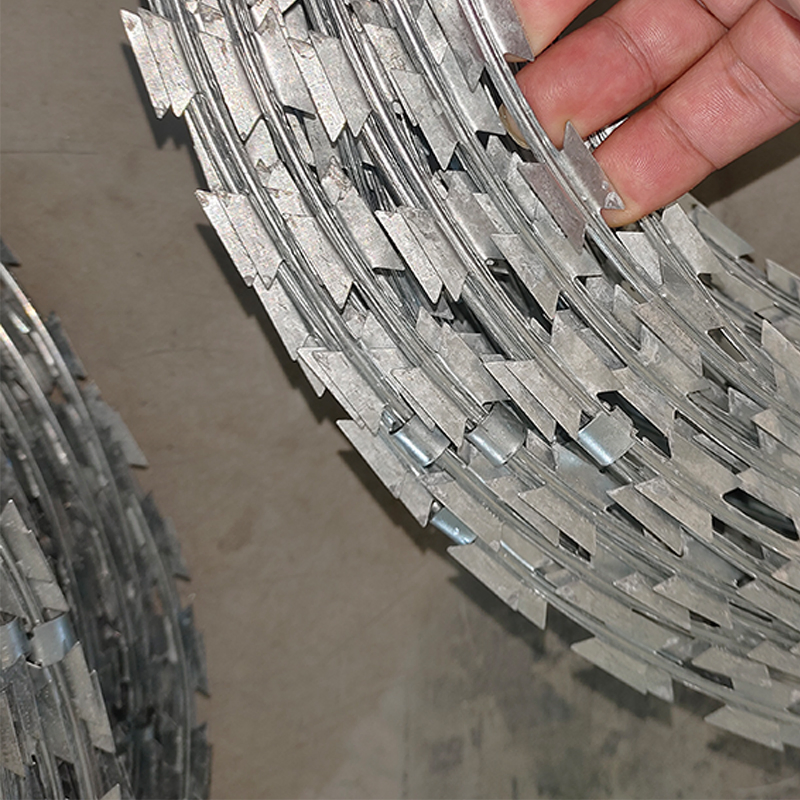

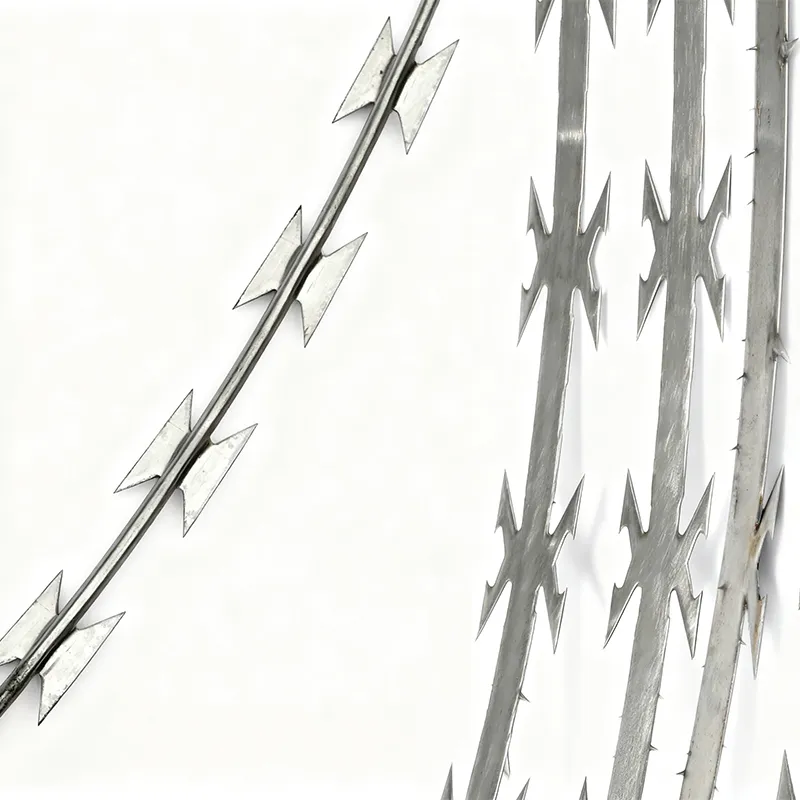

Details of the Razor Presentation
We offer genuine materials and products that pass quality inspections. Our products embody an unwavering pursuit of quality through rigorous testing.

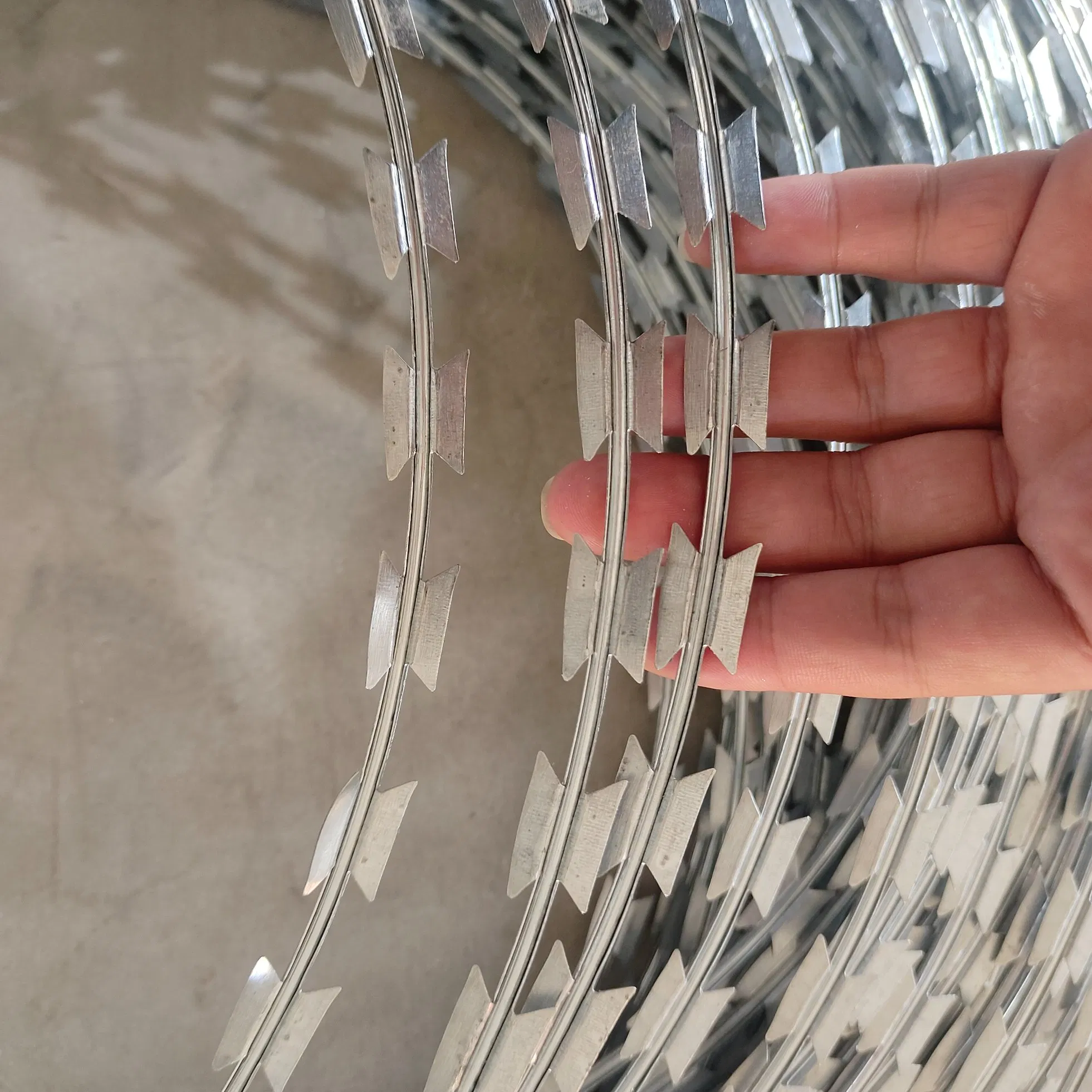

Variety of blade shapes: Rhombic blade, trapezoidal blade, rectangular blade, triangular blade, serrated blade.

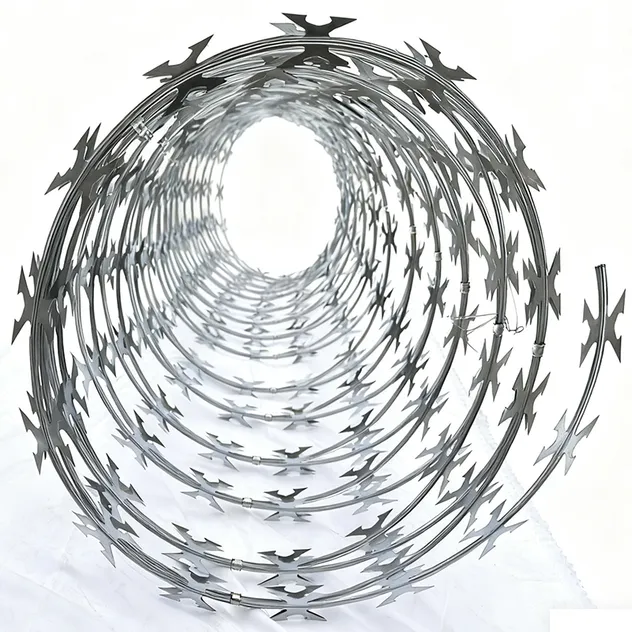

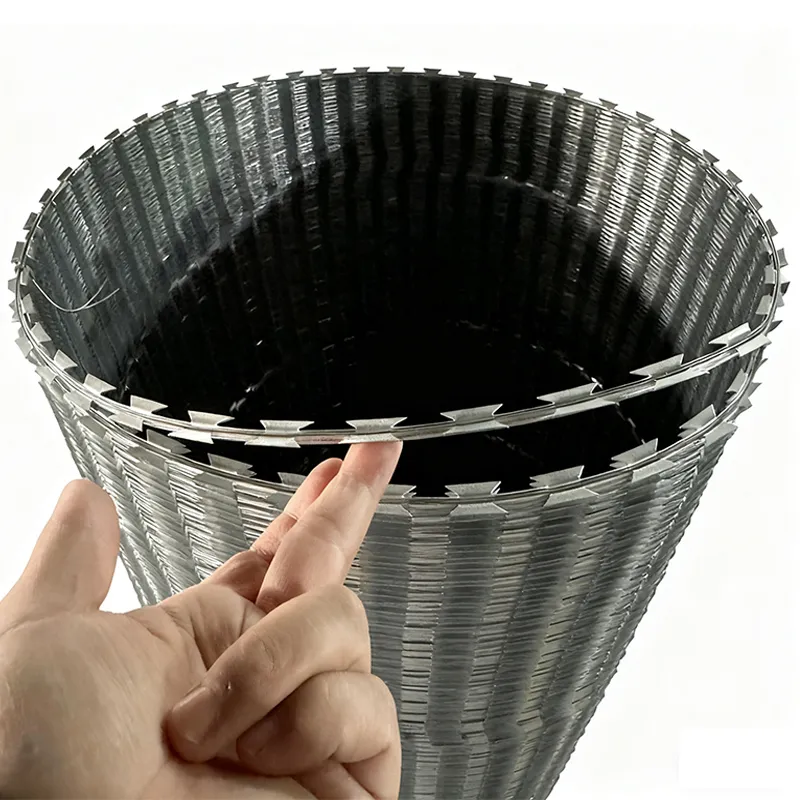

Spiral Structure

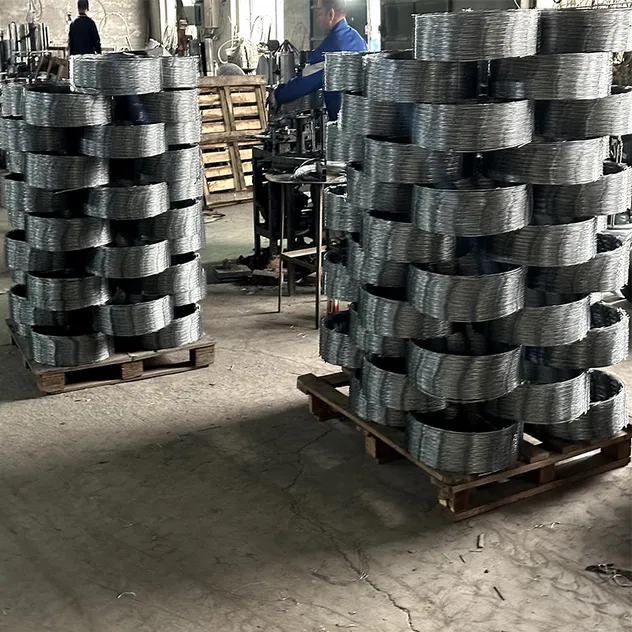

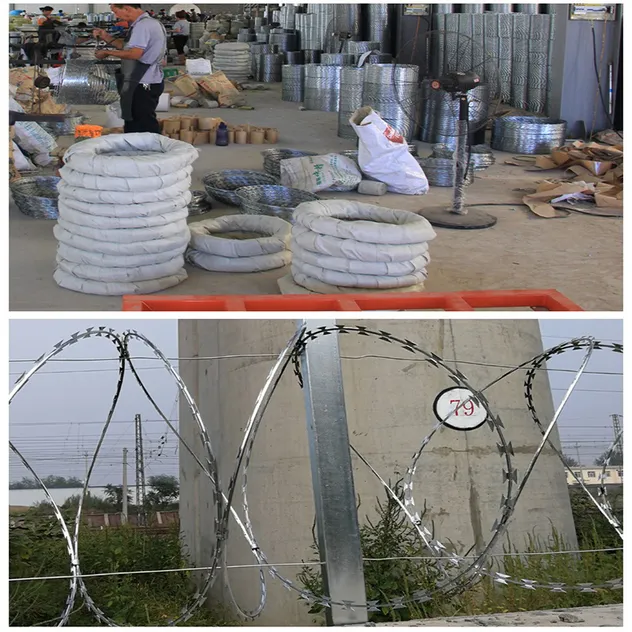

Semi-finished Workshop

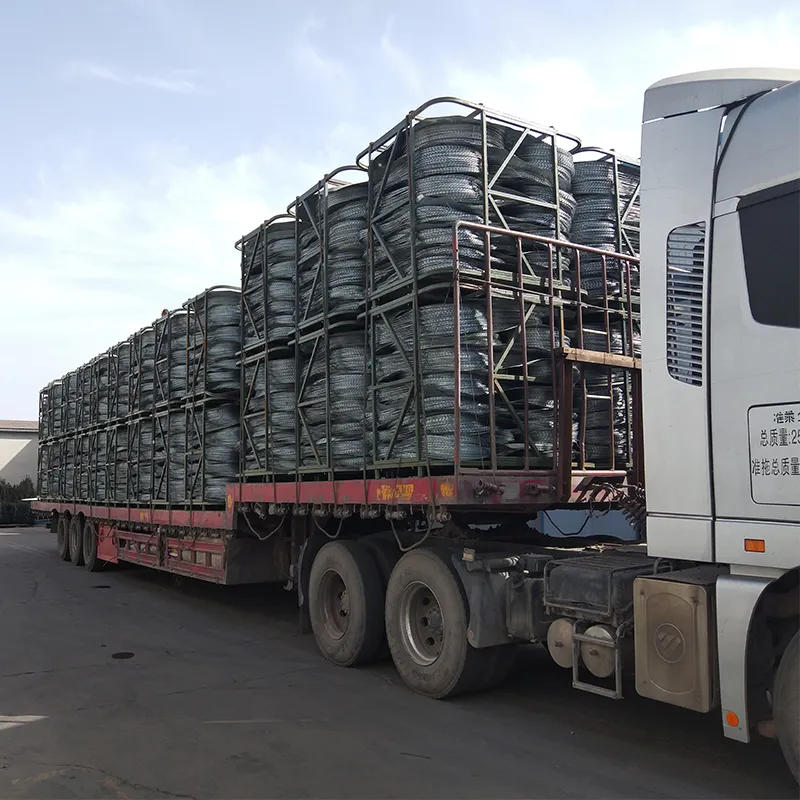

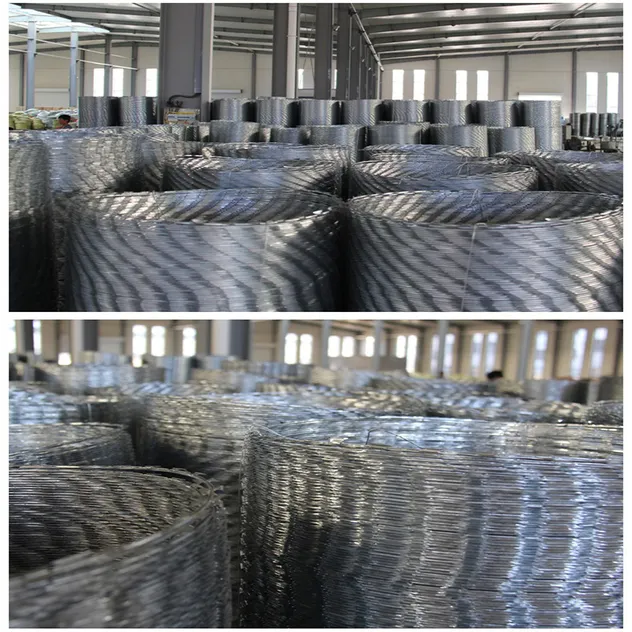

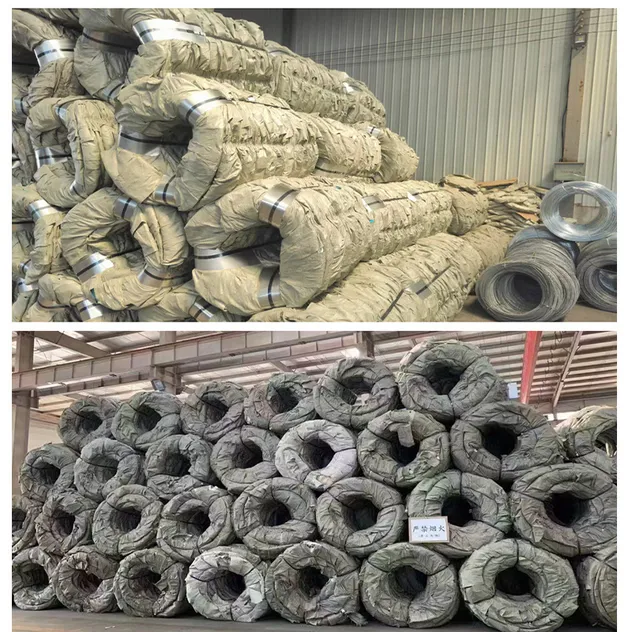

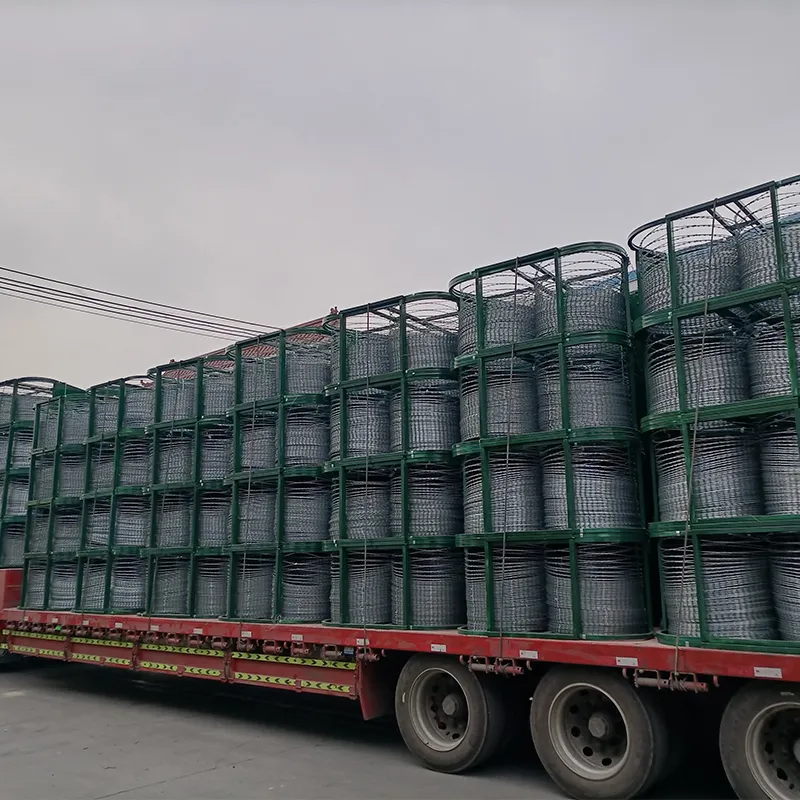

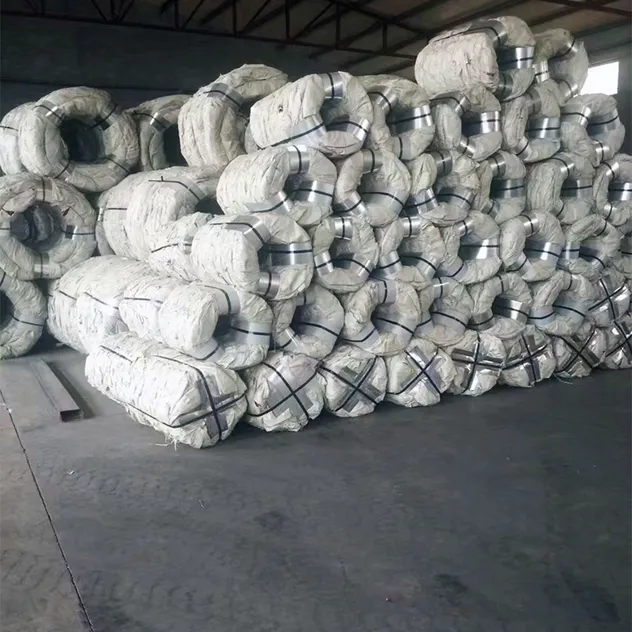

Large Ready Stock

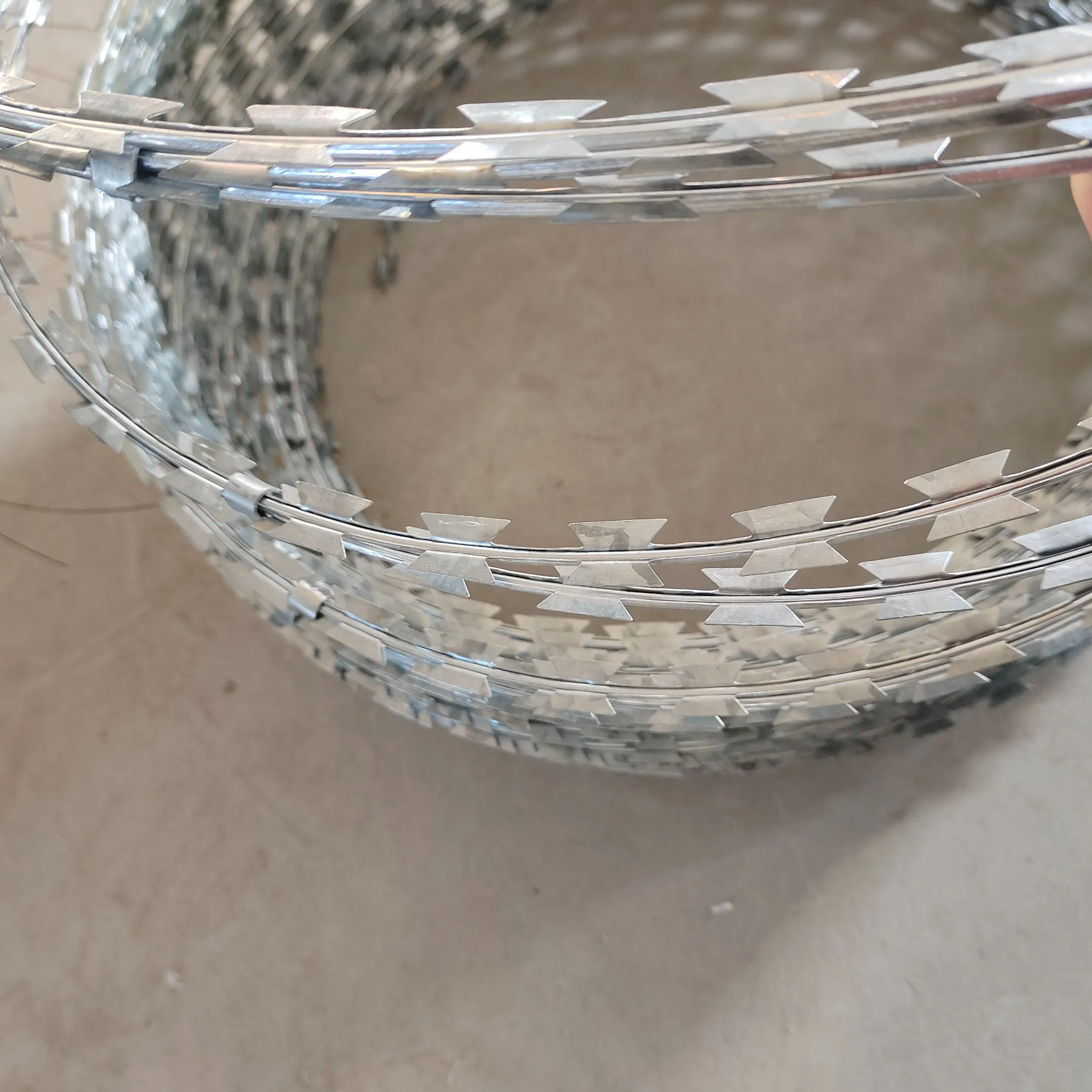

The razor wire usually has a spiral shape. This structure gives it excellent elasticity and flexibility. There are 3 to 7 clips in every 2 loops, and the loops interlock with each other. When pulled apart, it forms a stable spiral shape, which can better cover the protection area and play a role in blocking and intimidating.

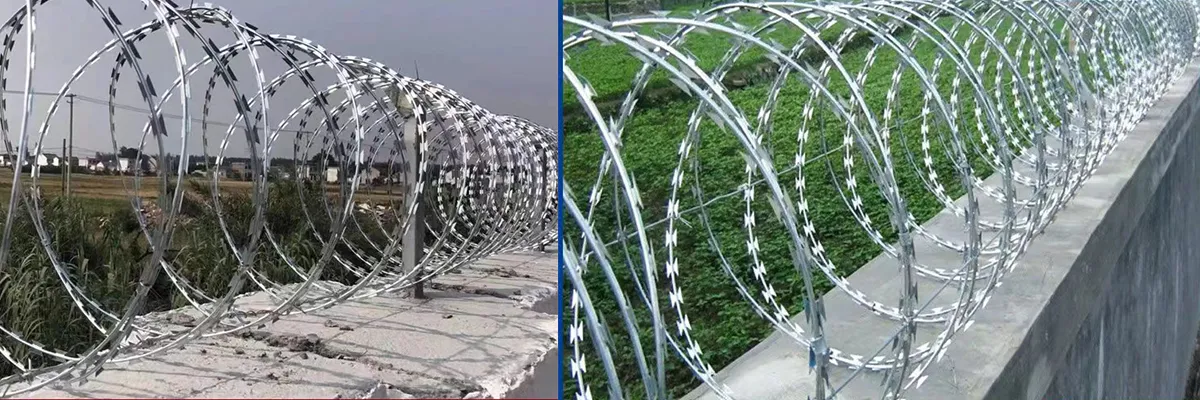

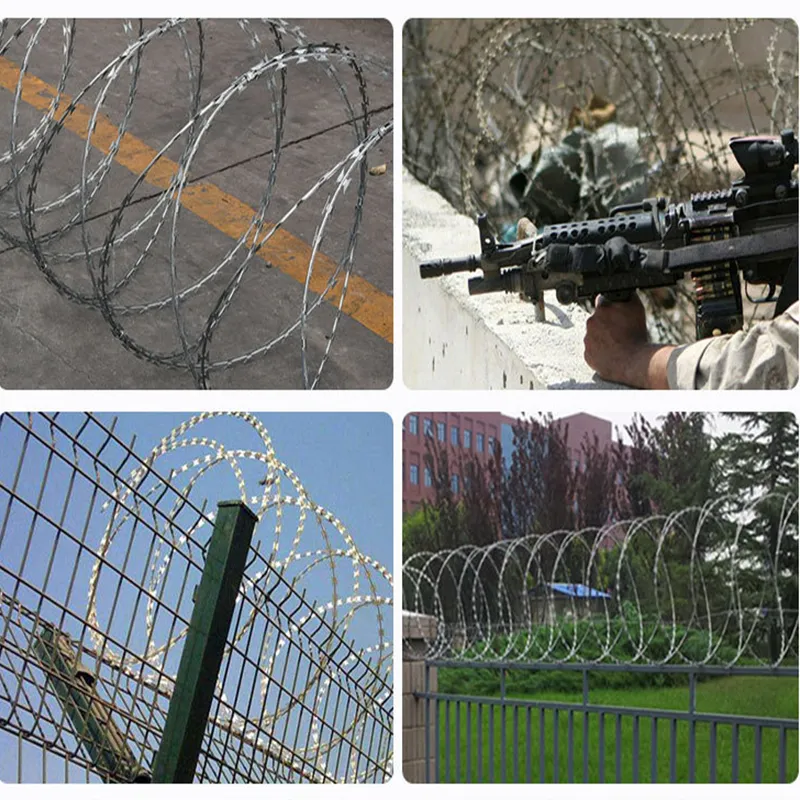

The blade wire rope, due to its high strength in terms of protection and deterrent effect, is used in various fields such as:
Material: Hot-dip galvanized sheet/wire or Stainless steel (AISI 430 & AISI 304)
Outside Diameter: 450mm to 980mm | No. of Loops: 33, 56 | Clips: 3, 5
| Model | Thickness (mm) | Wire Dia (mm) | Barb Length (mm) | Barb Width (mm) | Barb Spacing (mm) |
|---|---|---|---|---|---|
| BTO-10 | 0.5 ± 0.05 | 2.5 ± 0.1 | 10 ± 1 | 13 ± 1 | 26 ± 1 |
| BTO-12 | 0.5 ± 0.05 | 2.5 ± 0.1 | 12 ± 1 | 15 ± 1 | 26 ± 1 |
| BTO-22 | 0.5 ± 0.05 | 2.5 ± 0.1 | 22 ± 1 | 15 ± 1 | 34 ± 1 |
| BTO-30 | 0.5 ± 0.05 | 2.5 ± 0.1 | 30 ± 1 | 21 ± 1 | 54 ± 1 |
| CBT-60 | 0.6 ± 0.05 | 2.5 ± 0.1 | 60 ± 2 | 32 ± 1 | 102 ± 1 |
| CBT-65 | 0.6 ± 0.05 | 2.5 ± 0.1 | 65 ± 2 | 21 ± 1 | 102 ± 1 |
Our operation integrates wire mesh, guardrails, and professional surface treatment. We emphasize fast response, stable delivery, and high quality to meet diverse security needs.
