Product Description

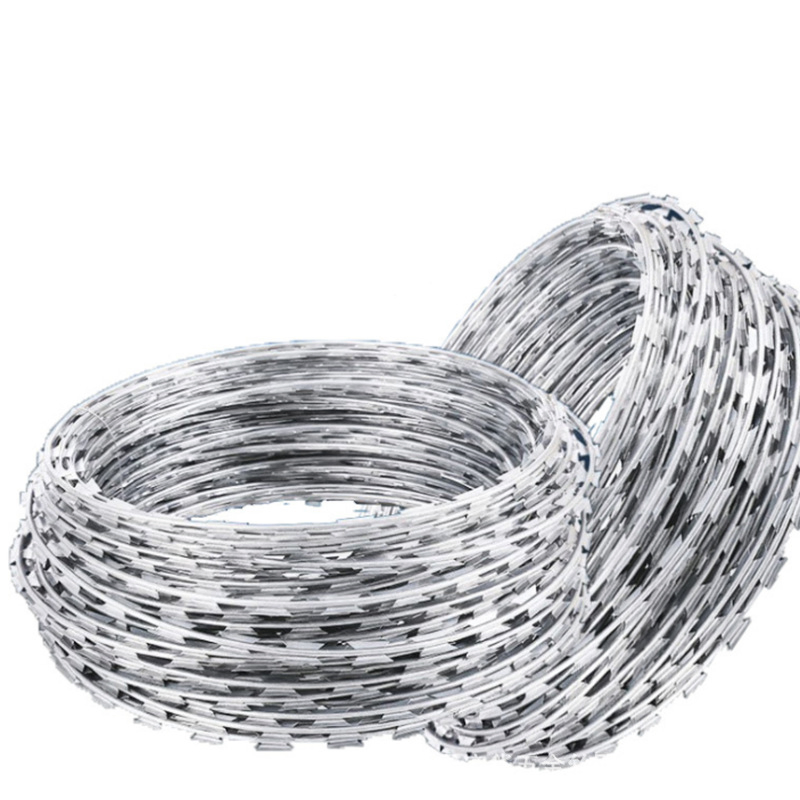

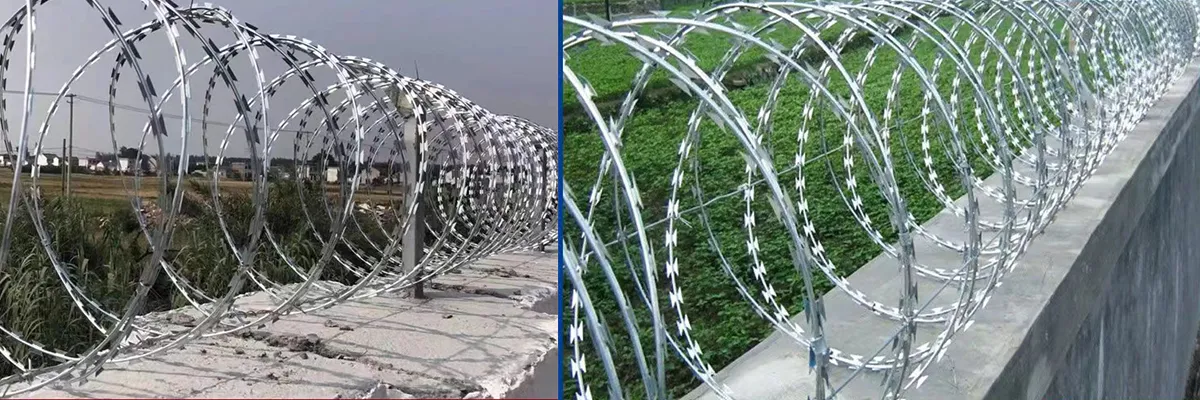

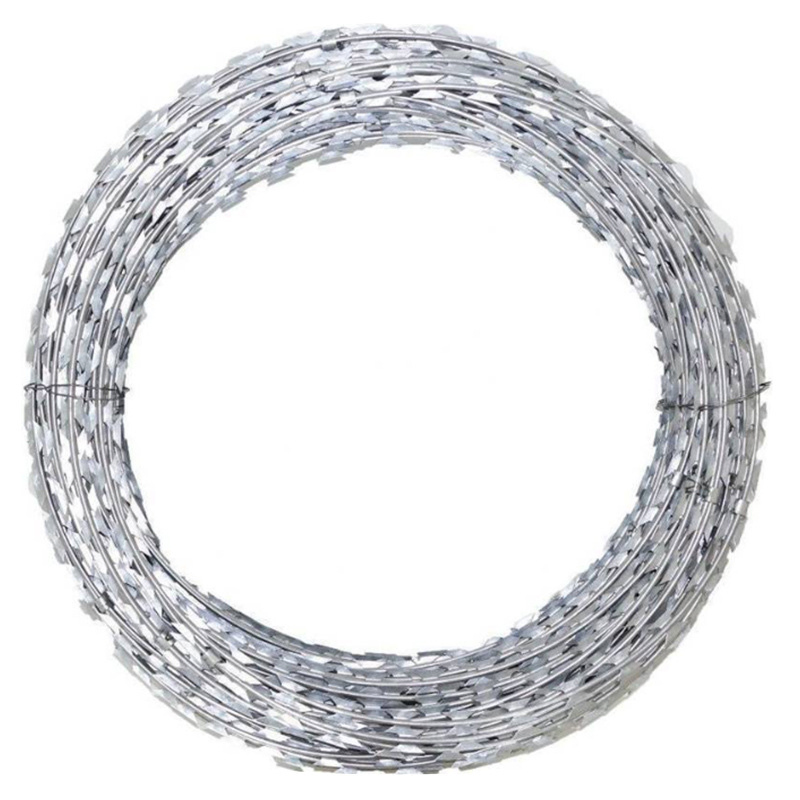

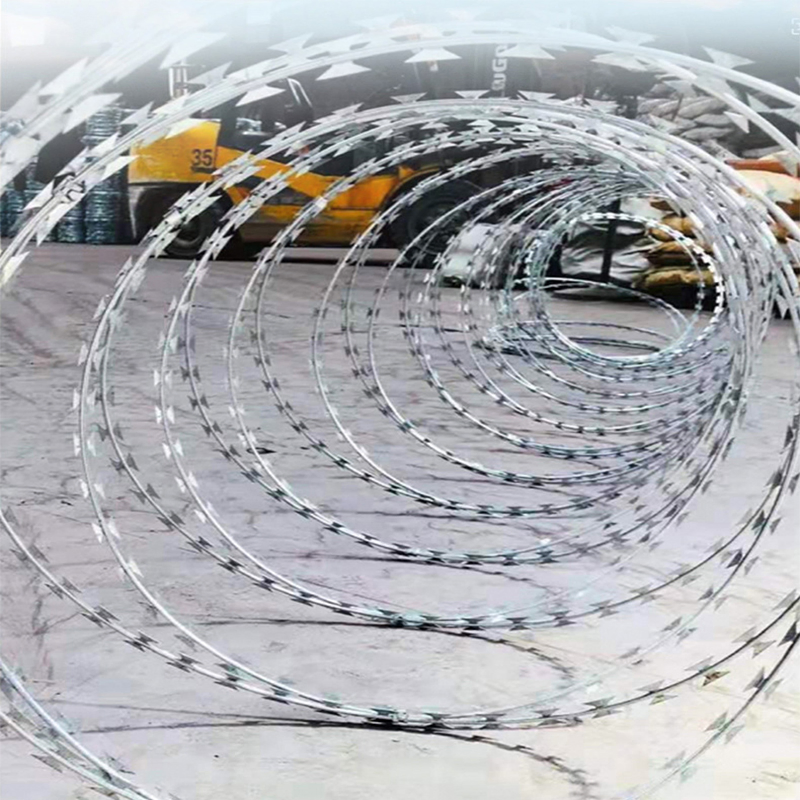

★ Mining Area Security Stainless Steel Concertina Razor Coil Barrier System
Razor Barbed Wire: The blade-like structure of the wire netting is sharp and densely arranged. Once a climber comes into contact with it, the blades will cut the skin or hook onto the clothing, making it difficult for the climber to climb, thereby effectively preventing illegal intruders from climbing over the fence.

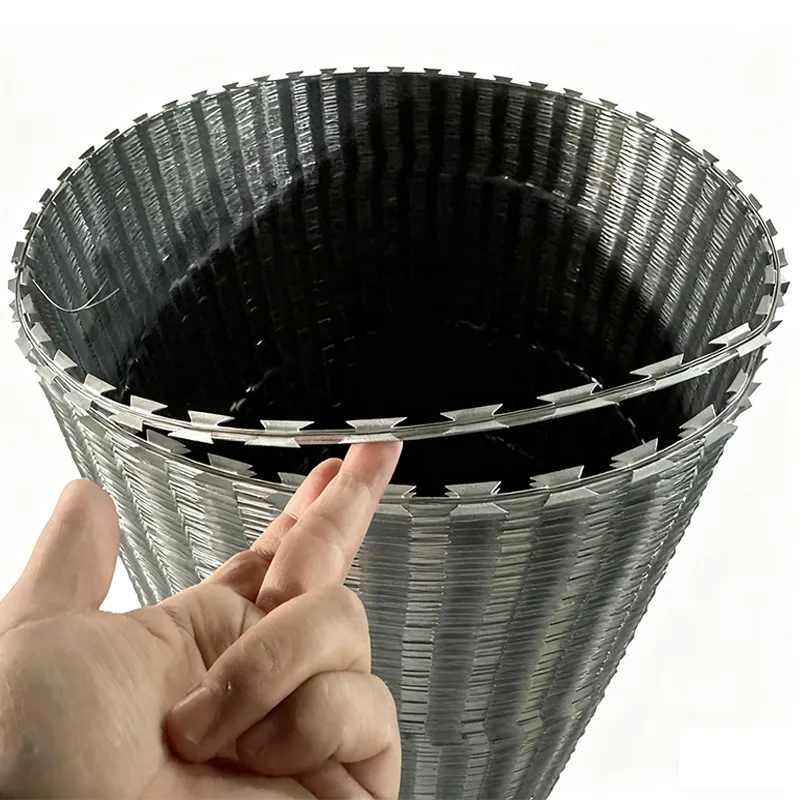

Details of the razor presentation: Among countless choices, we offer genuine materials and products that pass quality inspections. The materials and products we offer all embody our unwavering pursuit of quality. Through the rigorous testing process, they radiate a unique brilliance.

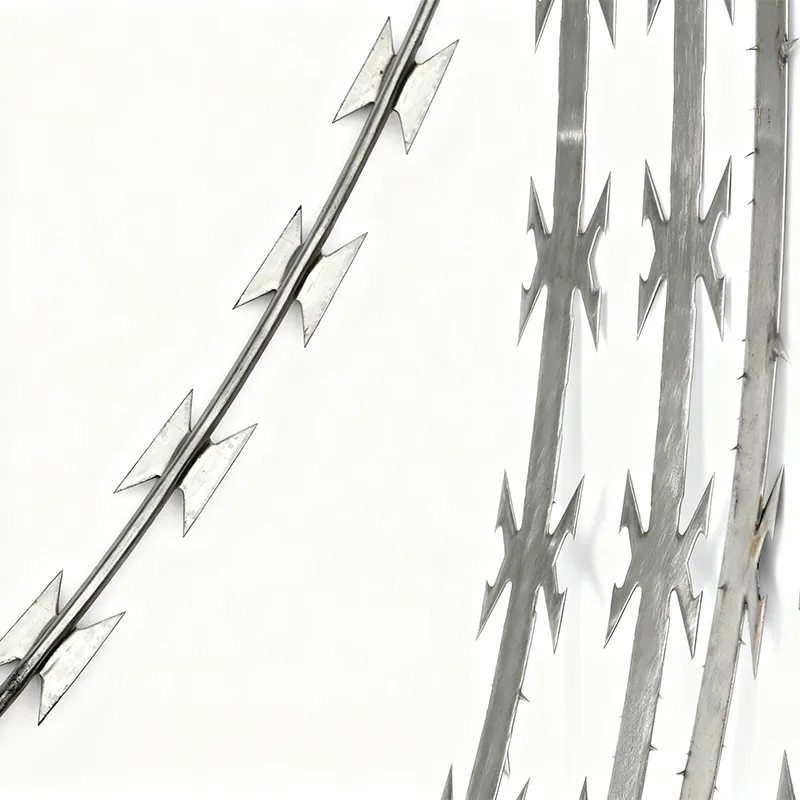

Variety of blade shapes: Rhombic blade, trapezoidal blade, rectangular blade, triangular blade, serrated blade.

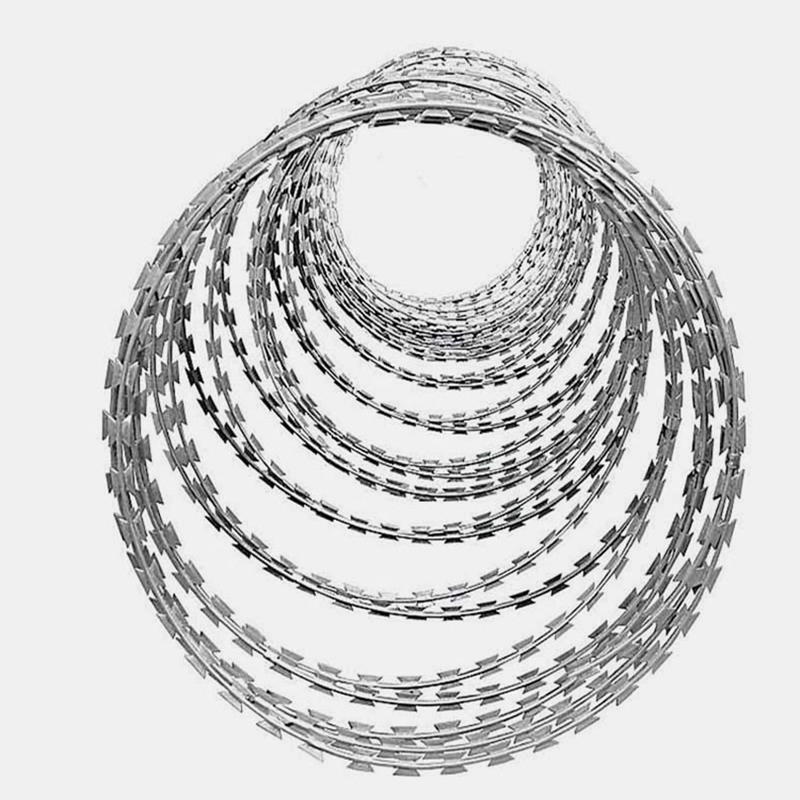

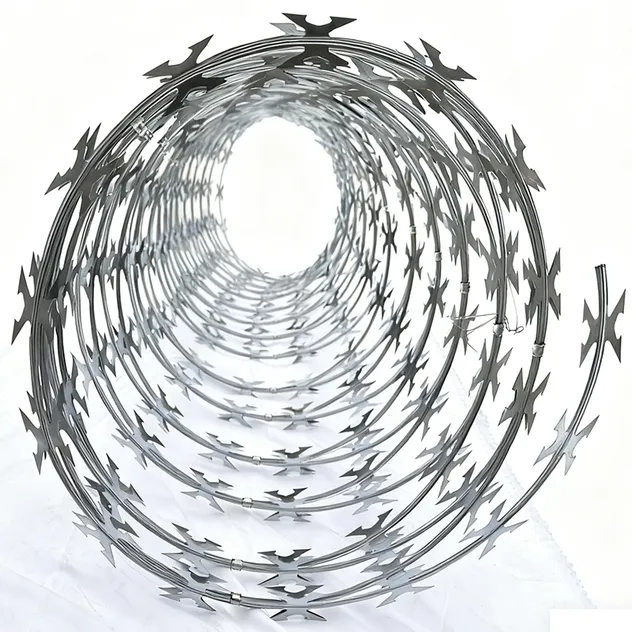

Spiral structure: The razor wire usually has a spiral shape. This structure gives it excellent elasticity and flexibility. There are 3 to 7 clips in every 2 loops, and the loops interlock with each other. When pulled apart, it forms a stable spiral shape, which can better cover the protection area and play a role in blocking and intimidating.

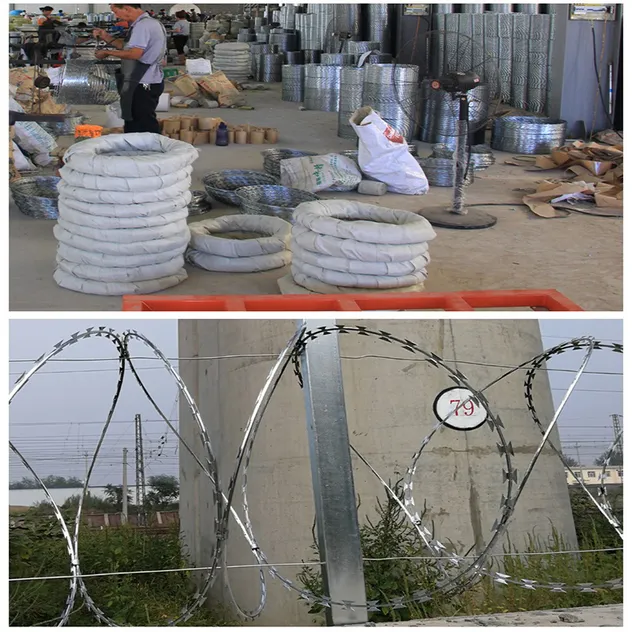

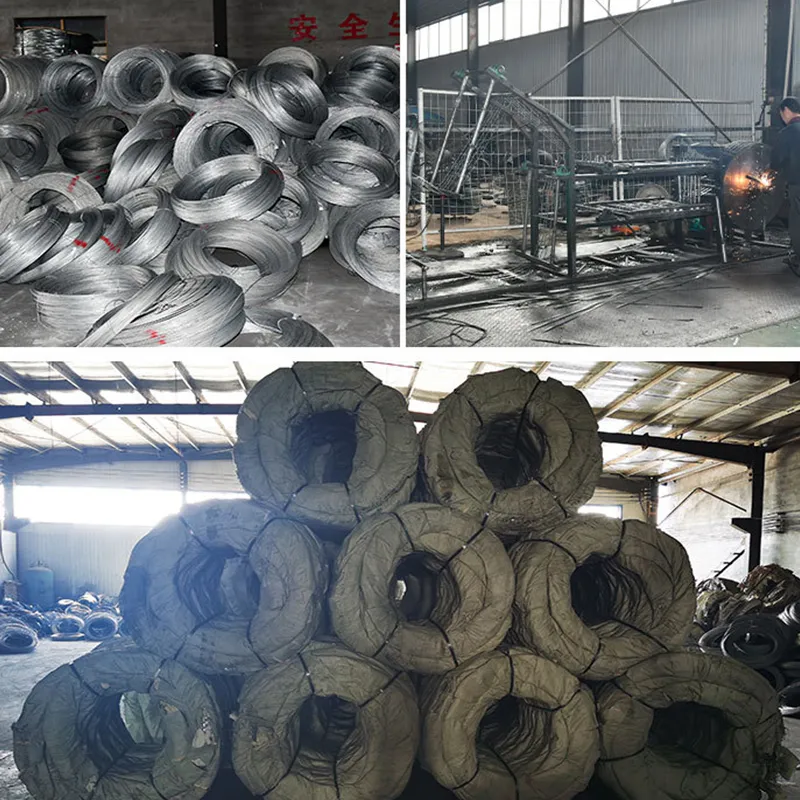

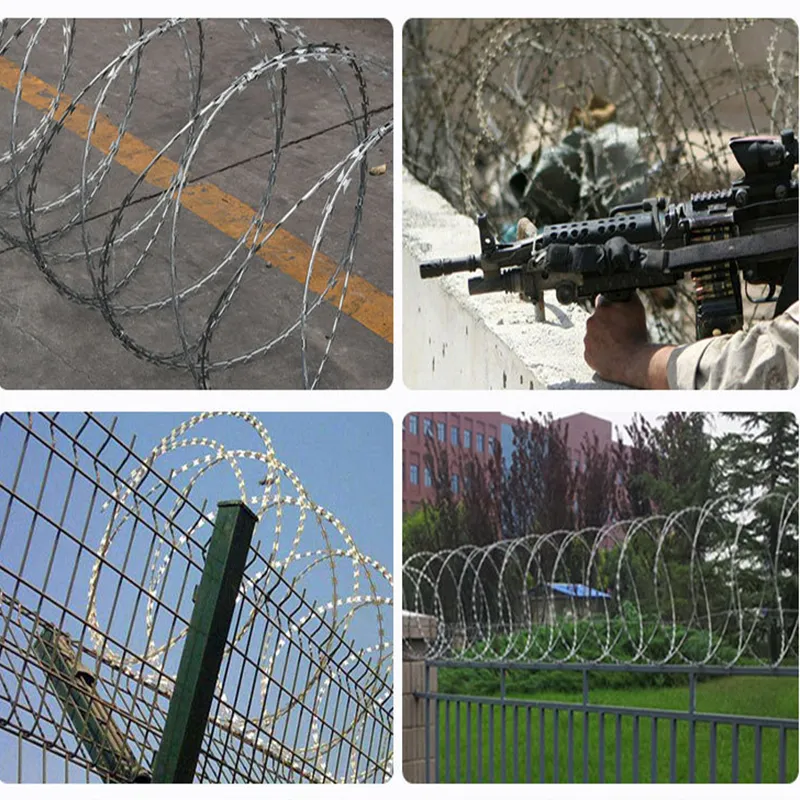

Product application scope: The blade wire rope, due to its high strength in terms of protection and deterrent effect, is used in various fields such as prisons and detention centers, high-risk industrial areas, places for storing valuable items, special protected areas, transportation facilities, and border defense lines.
Technical Specifications
1. Material: Hot-dip galvanized sheet and wire or Stainless steel sheet and wire (AISI 430 and AISI 304)
2. Outside diameter: 450mm, 500mm, 600mm, 700mm, 800mm, 900mm, 960mm, 980mm
3. No. of Loops: 33, 56 | Clips: 3, 5
| Model |
Thickness |
Wire Dia |
Barb Length |
Barbed Width |
Barb Spacing |
| BTO-10 | 0.5 ± 0.05 mm | 2.5 ± 0.1mm | 10 ± 1mm | 13 ± 1mm | 26 ± 1mm |
| BTO-12 | 0.5 ± 0.05 mm | 2.5 ± 0.1mm | 12 ± 1mm | 15 ± 1mm | 26 ± 1mm |
| BTO-18 | 0.5 ± 0.05 mm | 2.5 ± 0.1mm | 18 ± 1mm | 15 ± 1mm | 34 ± 1mm |
| BTO-22 | 0.5 ± 0.05 mm | 2.5 ± 0.1mm | 22 ± 1mm | 15 ± 1mm | 34 ± 1mm |
| BTO-28 | 0.5 ± 0.05 mm | 2.5 ± 0.1mm | 28 ± 1mm | 15 ± 1mm | 53 ± 1mm |
| BTO-30 | 0.5 ± 0.05 mm | 2.5 ± 0.1mm | 30 ± 1mm | 21 ± 1mm | 54 ± 1mm |
| CBT-60 | 0.6 ± 0.05 mm | 2.5 ± 0.1mm | 60 ± 2mm | 32 ± 1mm | 102 ± 1mm |
| CBT-65 | 0.6 ± 0.05 mm | 2.5 ± 0.1mm | 65 ± 2mm | 21 ± 1mm | 102 ± 1mm |
Frequently Asked Questions
Are you a factory or a trading company?

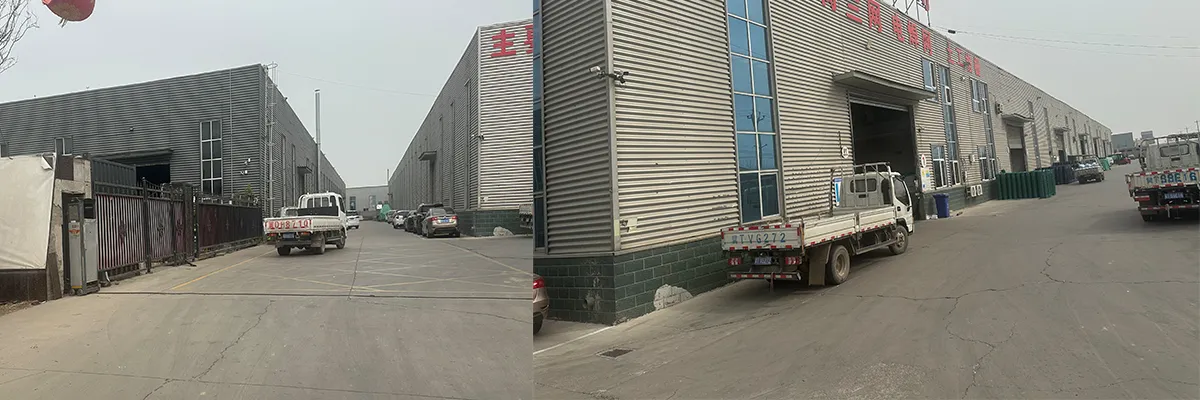

We are an integrated enterprise combining industry and trade. The factory and trade operations are managed under the same family of services to ensure quality and efficiency.
Can you offer free samples?
Yes, we can. Usually, the customer needs to pay the freight initially, but the freight cost will be returned to you once the order is confirmed.
Can I customize the products?
Yes, we are capable of producing the required products as long as the specific drawings or detailed specifications are provided.
How about the delivery time?

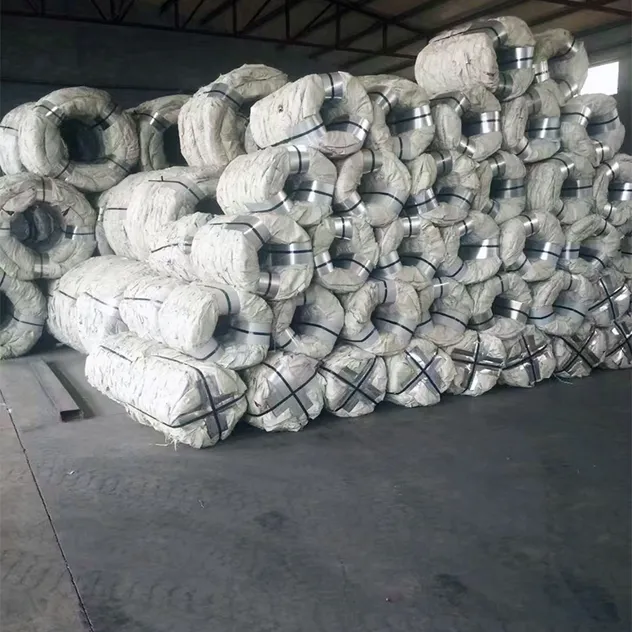

For normal size products, we maintain stock for quick delivery. Even if we don't have enough quantity in stock, the delivery time typically won't exceed 15 days.
How can I trust your quality?
Our quality and competitive pricing have won numerous customers over the years. We provide samples before orders, and customers are always welcome to visit our facility or arrange third-party inspections.
What materials are available for the razor wire?
We primarily use hot-dip galvanized sheet and wire, or stainless steel sheet and wire (specifically AISI 430 and AISI 304) to ensure maximum durability and corrosion resistance.
