Material: Hot-dip galvanized sheet and wire or Stainless steel sheet and wire (ALSI 430 and ALSI 304)
Outside Diameter: 450mm, 500mm, 600mm, 700mm, 800mm, 900mm, 960mm, 980mm
Loops & Clips: Available in 33 or 56 loops, with 3 or 5 clips.
Packaging: Inner proof paper with outside weave bag (or customized as per requirement).

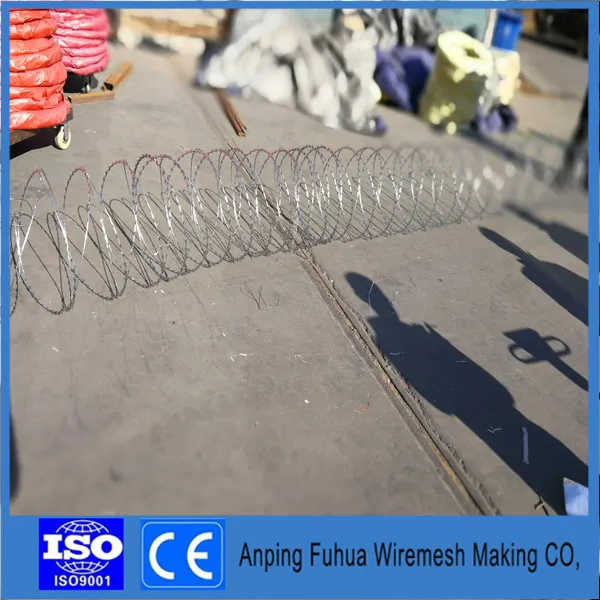

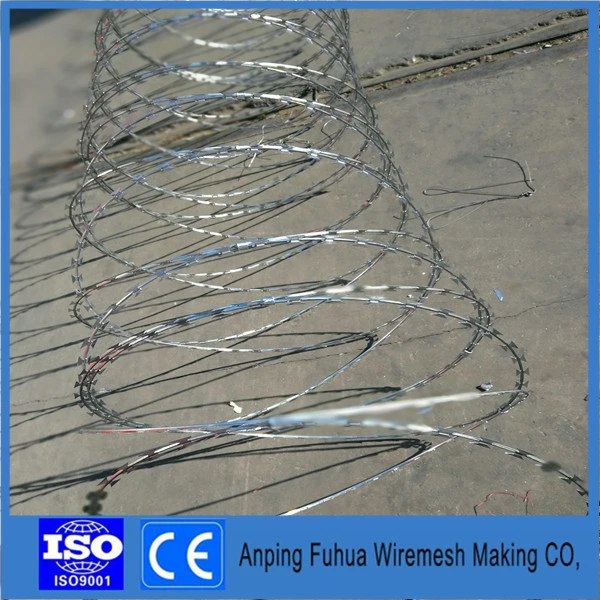

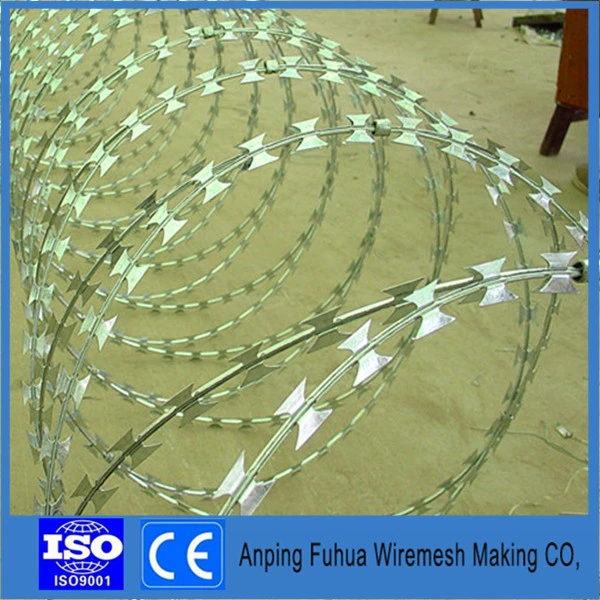

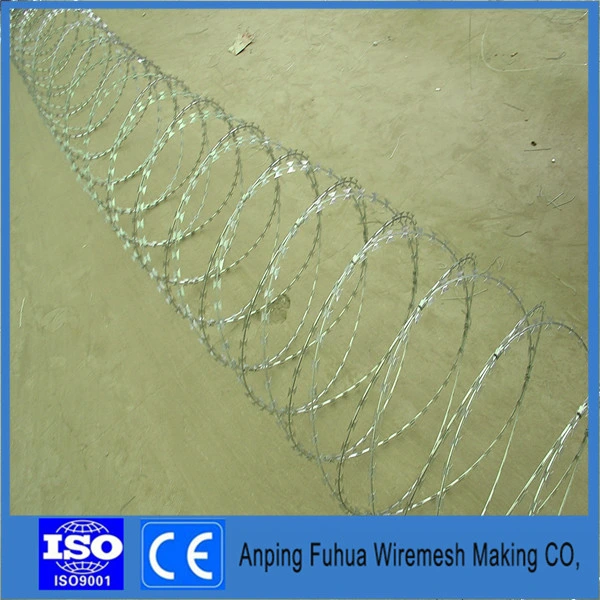

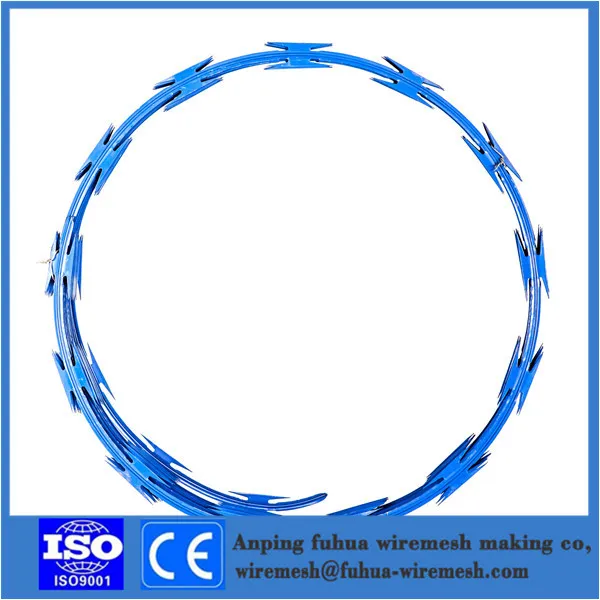

The construction of single coil concertina razor blade wire is based on a strand of a single razor wire naturally running in loops without any clips or splices. Standard loop diameters are 30, 45, and 73 cm.
When stretched, it forms a cylindrical obstacle structure that is extremely difficult to penetrate or cut through with standard hand tools. Note: The diameter of coils when stretched may decrease by approximately 5-10%.

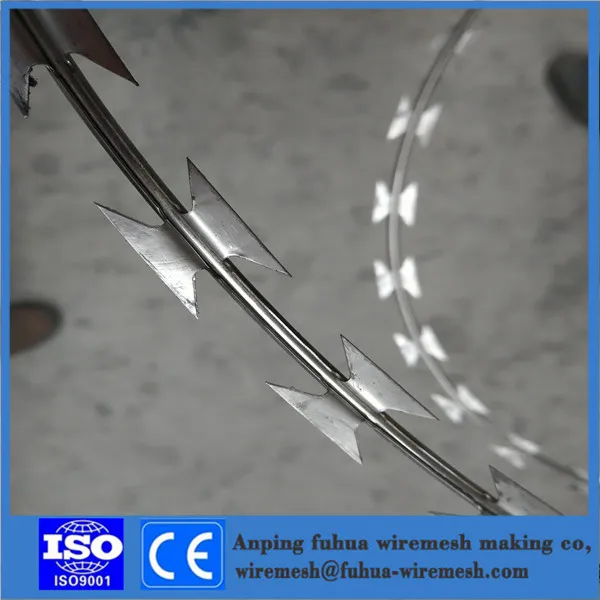

| Blade Specification | Blade Thickness (mm) | Core Wire Dia. (mm) | Blade Length (mm) | Blade Width (mm) | Blade Space (mm) |
|---|---|---|---|---|---|
| BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 26±1 |
| BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
| BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
| BTO-28 | 0.5±0.05 | 2.5 | 28 | 15 | 45±1 |
| BTO-30 | 0.5±0.05 | 2.5 | 30 | 18 | 45±1 |
| CBT-60 | 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 |
| CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
| Ex. Dia. | No. of Turns | Standard Covering Length | Production Model | Remarks |
|---|---|---|---|---|
| 450mm | 33 | 8M | CBT-65 | Single coil |
| 500mm | 41 | 10M | CBT-65 | Single coil |
| 700mm | 41 | 10M | CBT-65 | Single coil |
| 960mm | 53 | 13M | CBT-65 | Single coil |
| 500mm | 102 | 16M | BTO-12.18.22 | Cross type |
| 600mm | 86 | 14M | BTO-12.18.22 | Cross type |
| 700mm | 72 | 12M | BTO-12.18.22 | Cross type |
| 800mm | 64 | 10M | BTO-12.18.22 | Cross type |
| 960mm | 52 | 9M | BTO-12.18.22 | Cross type |
Note: The length and the diameter of the coil can be designed according to the customer's needs.

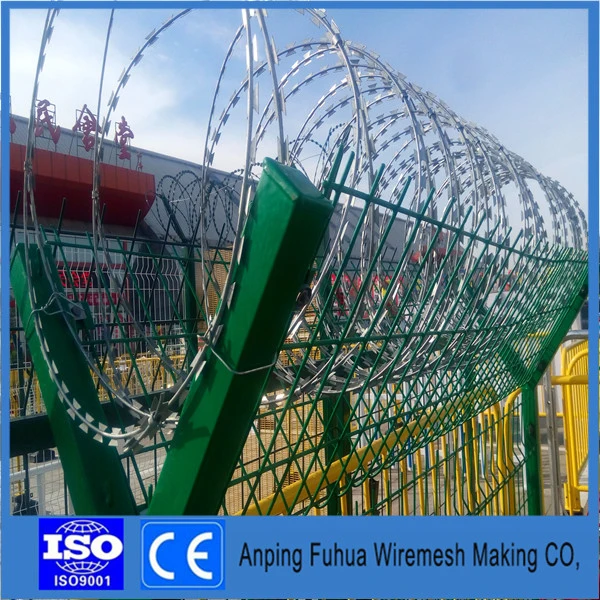

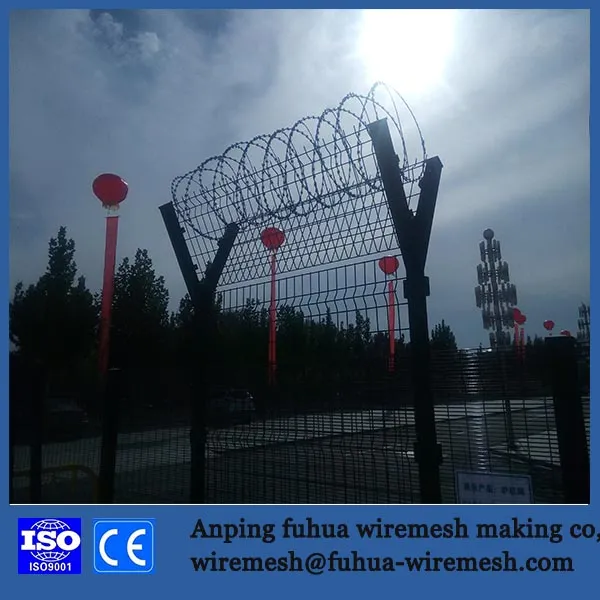

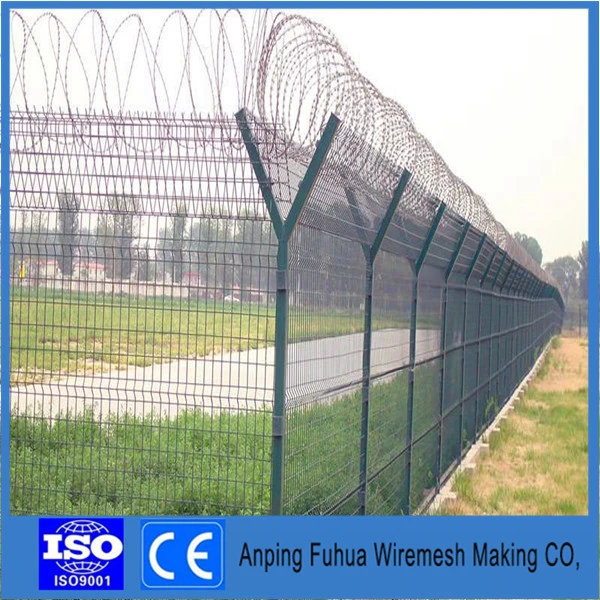

Razor wire is effective as a secondary line of defence to prevent unauthorised access and is widely used to complement high security fencing, protecting government, utilities and commercial property.
Barbed wire can be widely used as accessories for woven wires fences to form a fencing system or security system. It is called barbed wire fences or barbed obstacles when it is used simply by itself along the wall or the building to give protection.
