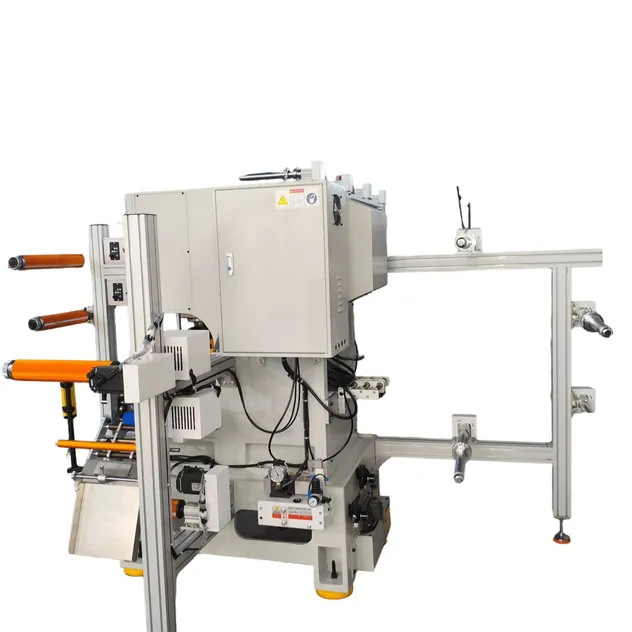

Advanced Multi Layer Cotton Punch for Vape Oil Storage Systems

1 / 5

Advanced Multi Layer Cotton Punch for Vape Oil Storage Systems

Customization:	Available
After-sales Service:	Remote Support Instructions by Email
Warranty:	Six Months

Send Inquiry

Product Description

Basic Information

Model NO.

Type

General Punching Machine

Punch Shape

Semi-Open Punch

Slider Movement

Triple Action

Slider Drive

Crank Press

Controlling Mode

CNC

Automatic Grade

Automatic

Power Source

Joint Drive

Precision

High Precision

Certification

ISO 9001

Condition

New

Main Motor

7.5kw

Tonnage

25ton

Material

Metal Coils, Copper, Aluminum, Stainless Steel

Product Description

Core Features:

1. Intuitive HMI, digital control, plug-and-play automation; stackable, flexible, high-efficiency.

2. Cast frame, three-post guidance; front-to-back pass-through, steady accuracy, variable speed, oil lube, overload-proof.

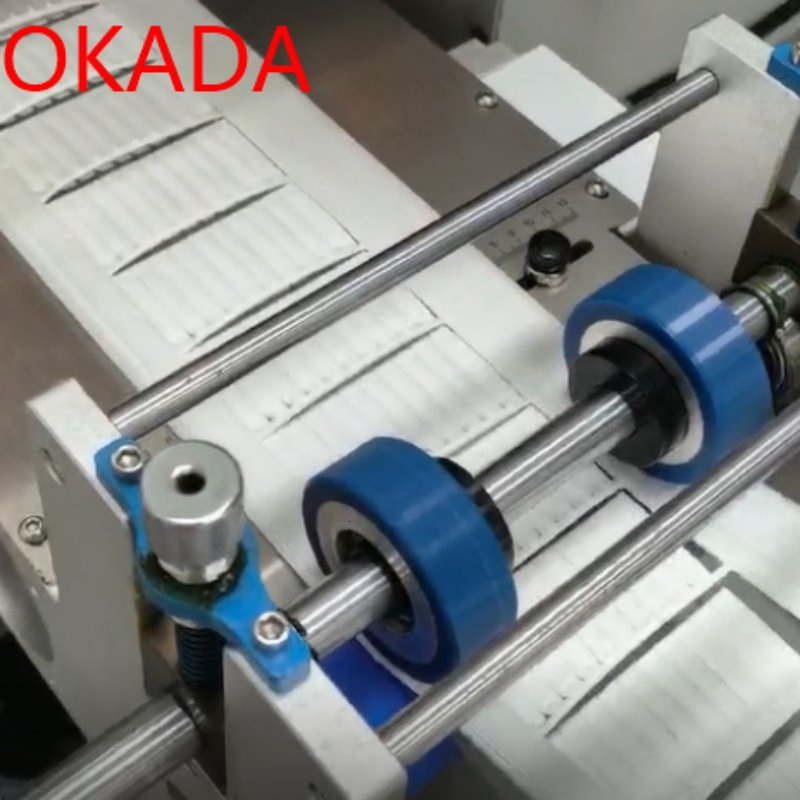

3. Simultaneous left-right & front-back feeds eliminate multi-layer web clash; auto wind, blank, and stop on fault.

Precise positioning combined with high-speed punching ensures no burrs or deformation, perfectly adapting to various oil storage cotton specifications. Servo-driven for stable and controllable operation, it maximizes production efficiency for batch processing.

Product Parameters

Specification	Unit	25TON Capacity
Impulse generating position	mm	1.2
Stroke length	mm	60
Maximum closing working height	mm	175-205
Number of strokes	s.p.m	60-150
Adjustment amount of sliding block	mm	30
Upper table size (LRXFB)	mm	400x300
Main motor	KW	7.5

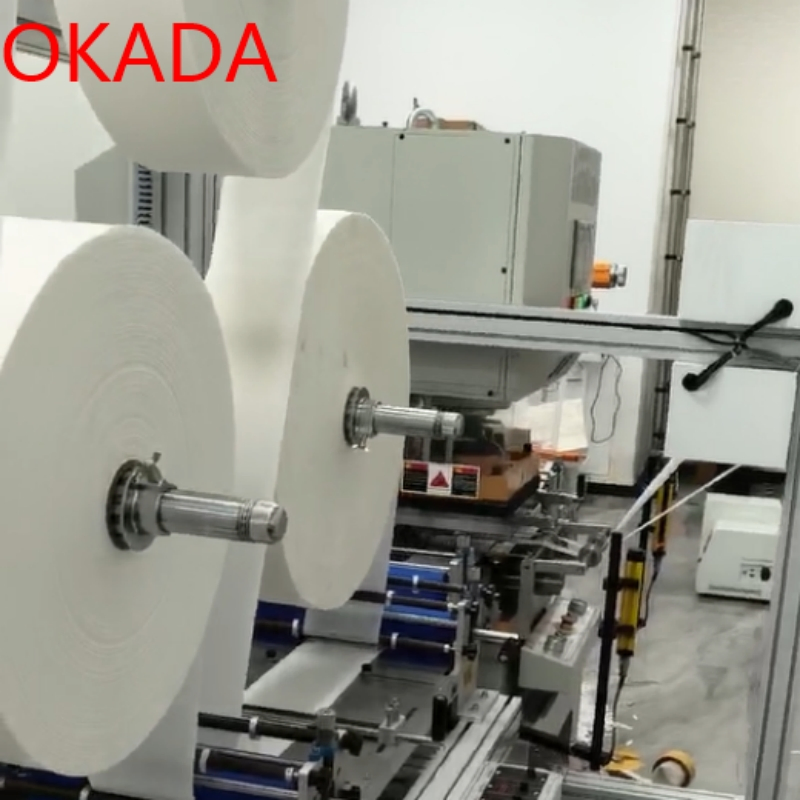

Number of cigarette cotton reels	Qty	4+2 / 5+2 / 6+2

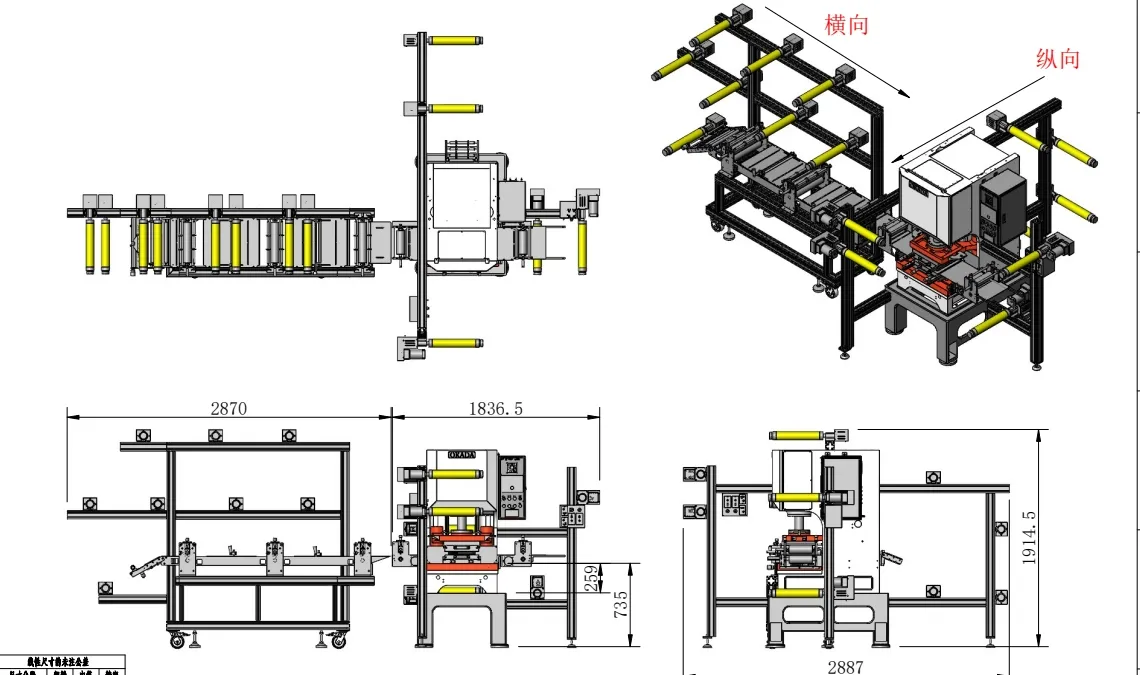

Detailed CAD drawings and dimensional diagrams are available upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.

After Sales Service

Standard Warranty: 6 months or 2,000 operating hours (whichever comes first).

Extended Warranty: Optional coverage available up to 12 months.

Global Support: 24/7 technical assistance and spare parts supply.

Training: On-site or remote operation and maintenance training programs.

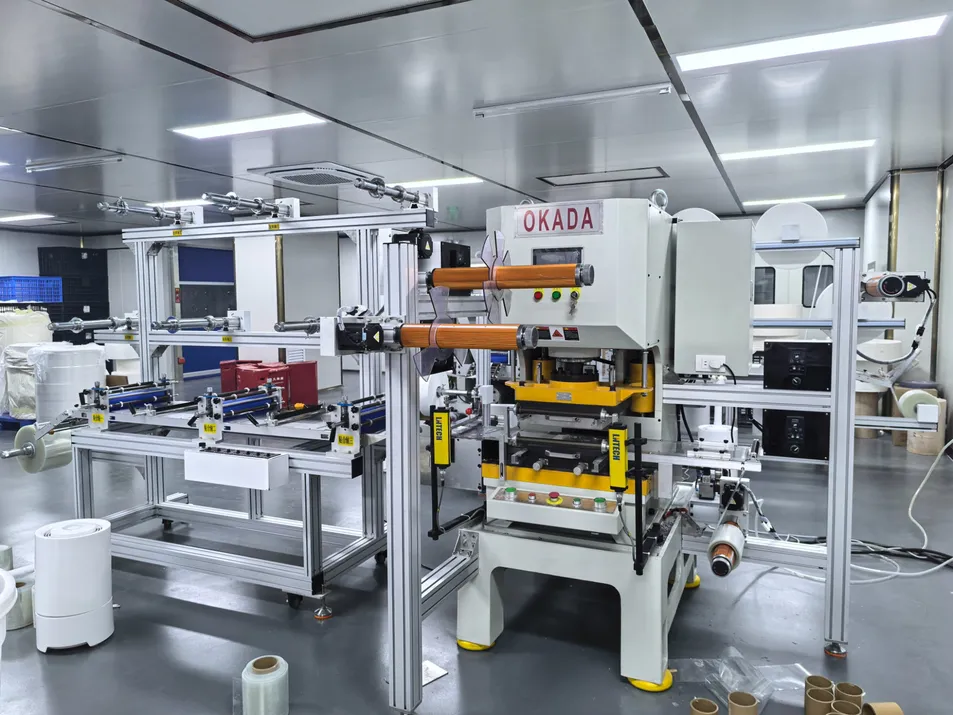

Manufacturing & Exhibition

Certifications

Frequently Asked Questions

What is the lead time for orders?

Standard models ship in 15–30 days; customized units typically require 30–45 days depending on the specifications.

Can I request a customized size for specific materials?

Absolutely! We offer tailored attachments and adjustments to meet your specific production needs.

What documents do you provide for international export?

We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, and necessary quality certificates.

Do you offer operator training for the CNC system?

Yes, we provide both on-site and remote training to ensure your team can operate and maintain the equipment efficiently.

What materials is this punching machine compatible with?

It is designed for high-precision processing of metal coils, copper, aluminum, stainless steel, and specialized multi-layer cotton used in the vape industry.

How is technical support handled after the warranty period?

We offer lifetime technical support. Beyond the warranty period, we continue to provide spare parts and remote troubleshooting services.
