Essential Vape Maintenance Kit: Professional Piercing Tool & Cotton

Customization:	Available
After-sales Service:	Remote Support Instructions by Email
Warranty:	Six Months

📋 Basic Information

Model NO.

SF25 6+3

Type

General Punching Machine

Punch Shape

Semi-Open Punch

Slider Movement

Triple Action

Controlling Mode

CNC

Automatic Grade

Automatic

Power Source

Joint Drive

Precision

High Precision

Certification

ISO 9001

Tonnage

25ton

Material

Metal Coils, Copper, Aluminum, Stainless Steel

Main Motor

7.5kw

⚙️ Product Description

Advanced Automation: Intuitive HMI with digital control, featuring plug-and-play automation for flexible and high-efficiency operations.

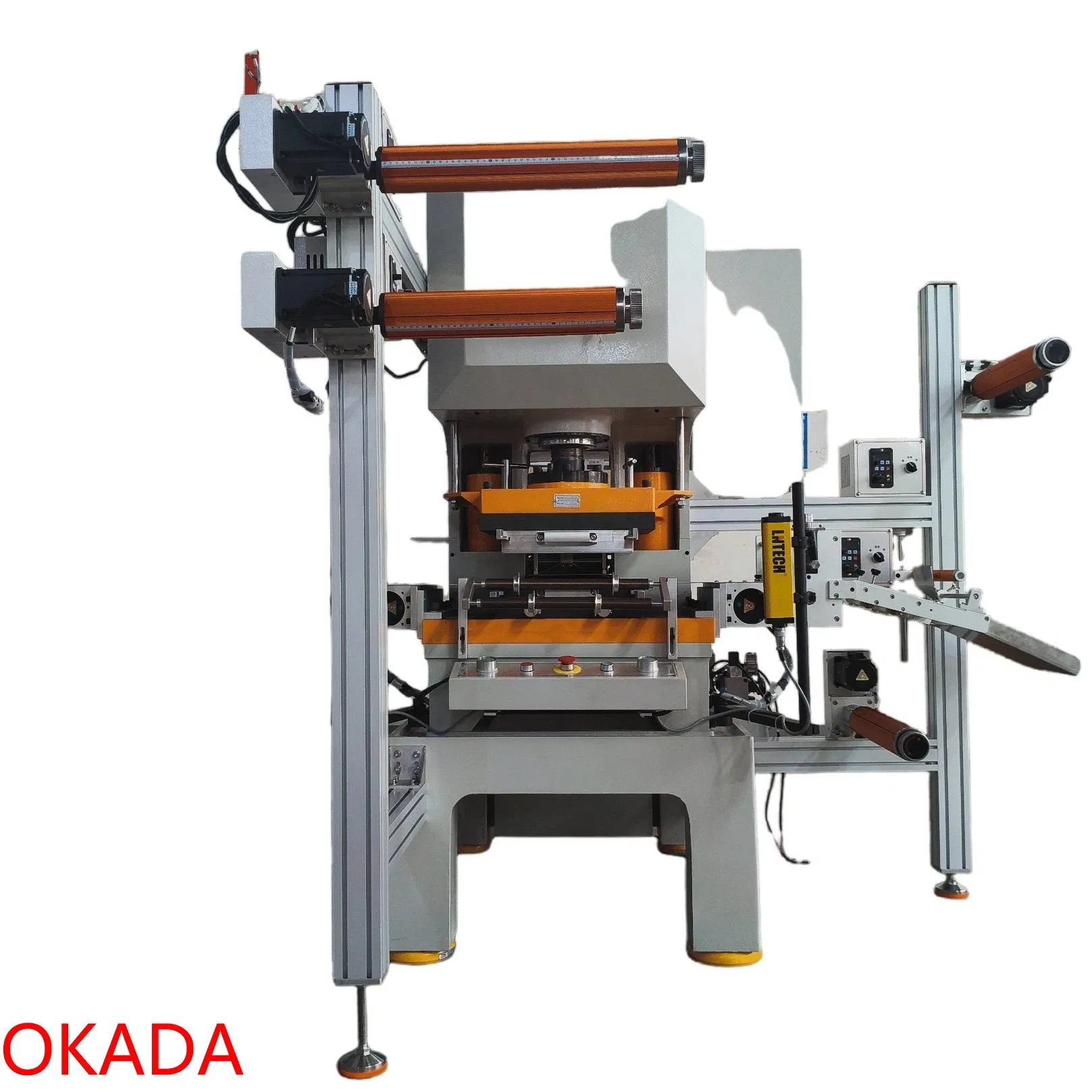

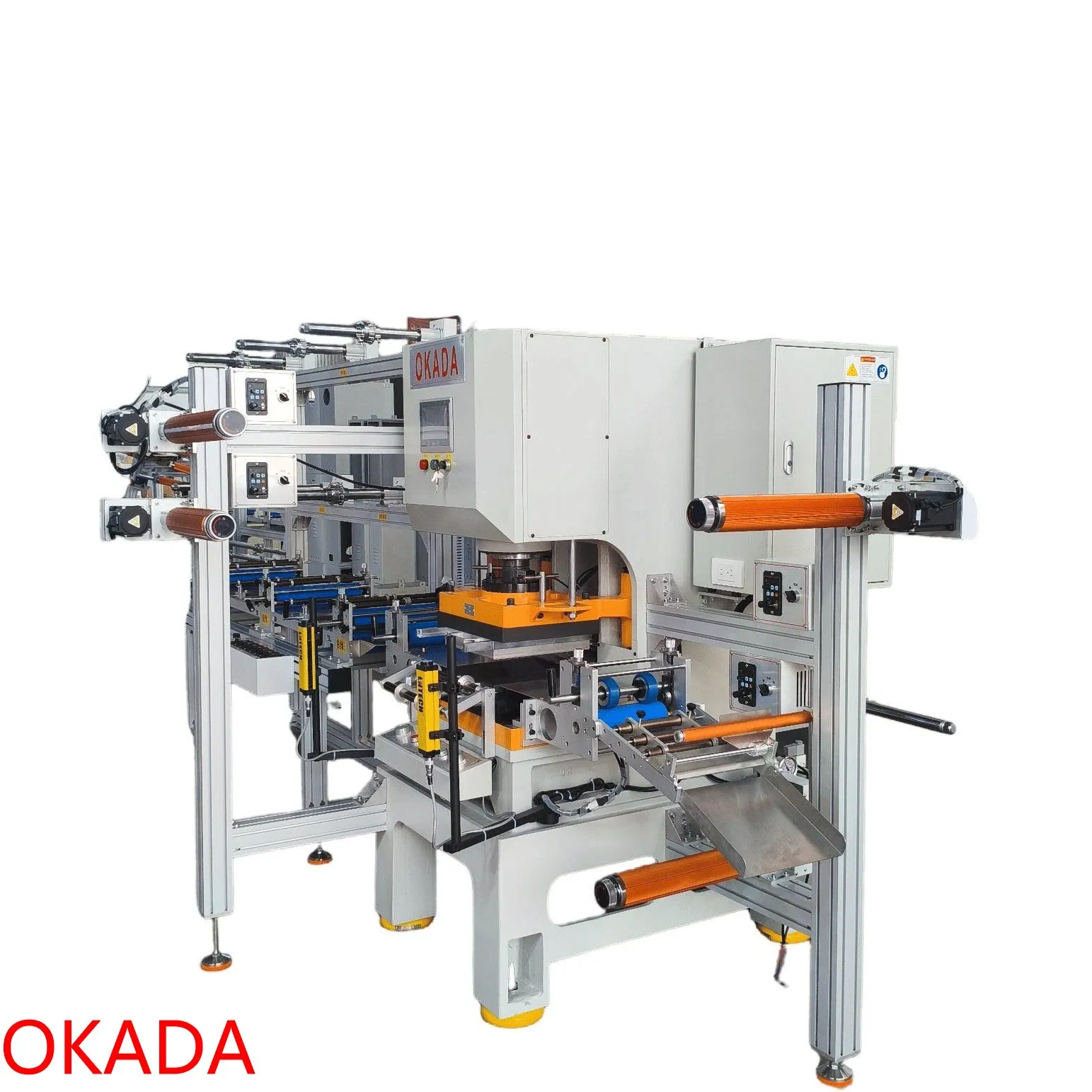

Robust Construction: Cast frame with three-post guidance ensuring steady accuracy, variable speed options, and integrated overload protection.
Precision Blanking: Specialized for e-cigarette oil guide cotton with a tolerance within ±0.01mm, ensuring ultra-flat cut edges and optimal absorption.
High Output: Capable of 60-150 cycles per minute, boosting production efficiency by 3-5 times compared to manual methods.

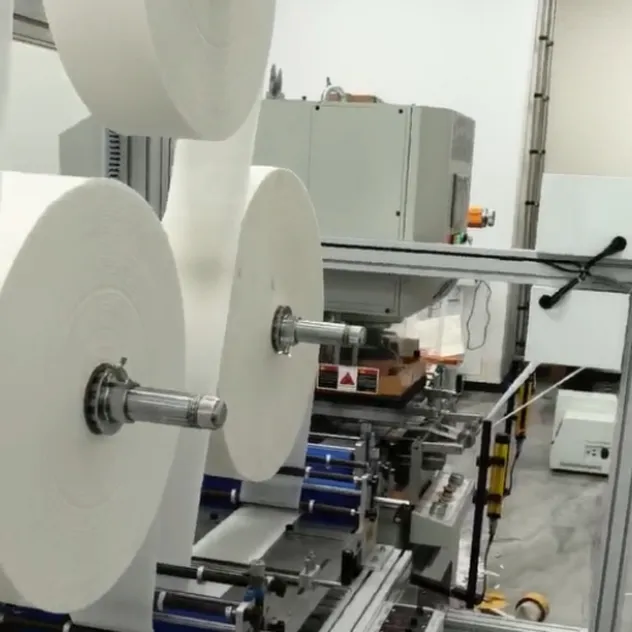

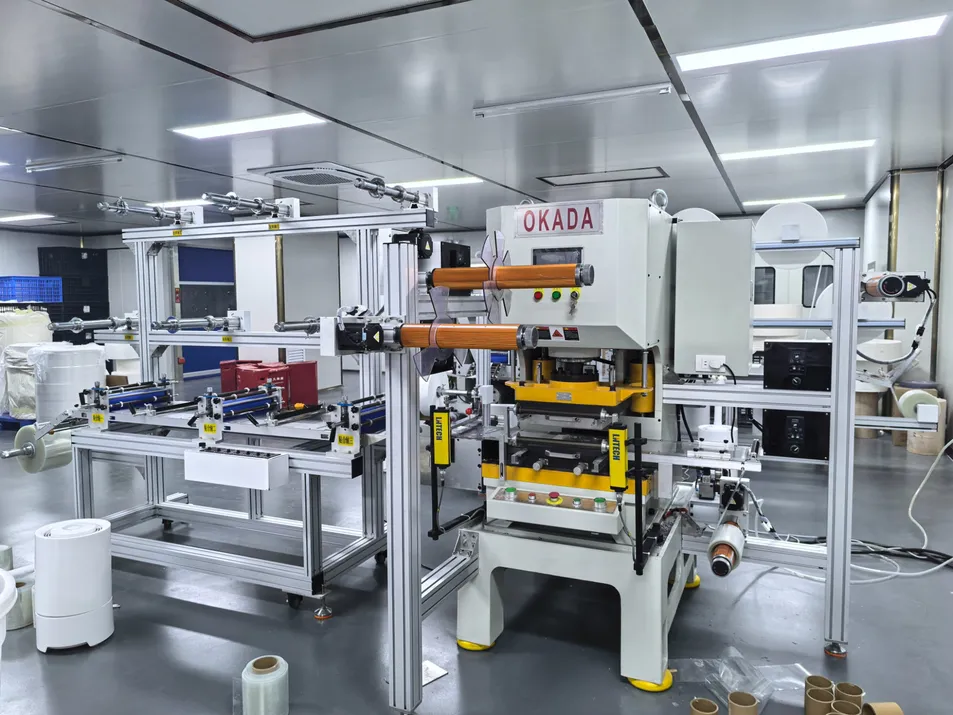

This precision-engineered solution is tailored for the e-cigarette manufacturing industry, specializing in automated cutting of organic and composite cotton materials. The integrated positioning system prevents fiber damage and ensures dimensional consistency.

📊 Product Parameters

Specification	Unit	Value (25TON)
Stroke length	mm	60
Maximum closing working height	mm	175-205
Number of strokes	s.p.m	60-150
Adjustment amount of sliding block	mm	30
Upper table size	LRXFB	400x300
Main motor	KW	7.5

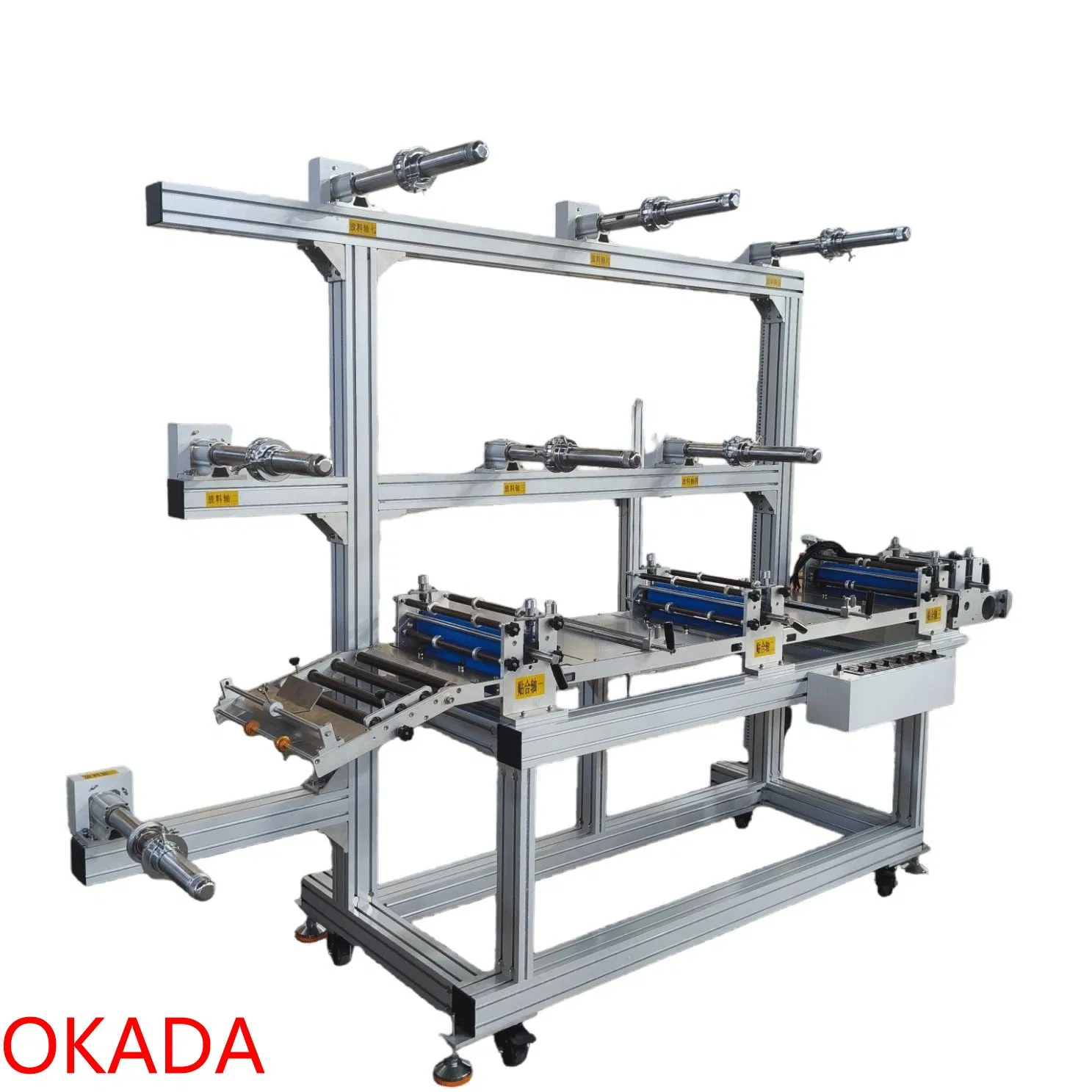

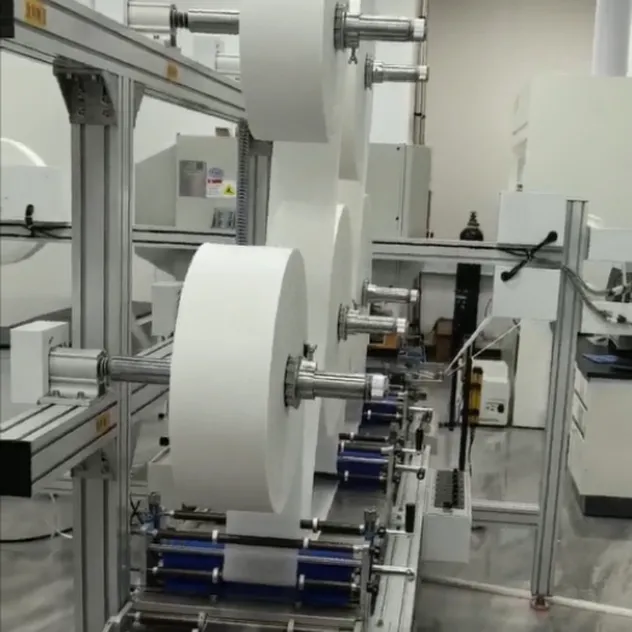

Number of cigarette cotton reels	-	4+2 / 5+2 / 6+2

🛠️ After Sales Service

Standard Warranty: 6 months or 2,000 operating hours (whichever comes first).

Extended Warranty: Optional coverage up to 12 months available.

Global Support: 24/7 technical assistance and rapid spare parts supply.

Training: Comprehensive on-site or remote operation and maintenance training sessions.

🏢 Company & Exhibition

📜 Certifications

❓ Frequently Asked Questions

Q: What is the typical lead time for order delivery? A: Standard models are usually shipped within 15–30 days. For customized units, the timeline is approximately 30–45 days depending on the specifications.

Q: Can the machine be customized for specific cotton sizes? A: Yes, we offer tailored attachments and adjustments to meet your specific e-cigarette cotton dimensions and production requirements.

Q: What documentation is provided for international shipping? A: We provide a complete export documentation package, including the Commercial Invoice, Packing List, Bill of Lading, and necessary quality certifications.

Q: Do you offer international technical support? A: Yes, we provide 24/7 remote technical assistance and can arrange on-site training or maintenance through our global service network.

Q: What are the payment terms for new orders? A: Generally, we work with standard B2B payment terms. Please contact our sales team for a detailed quote and specific purchase order confirmation.

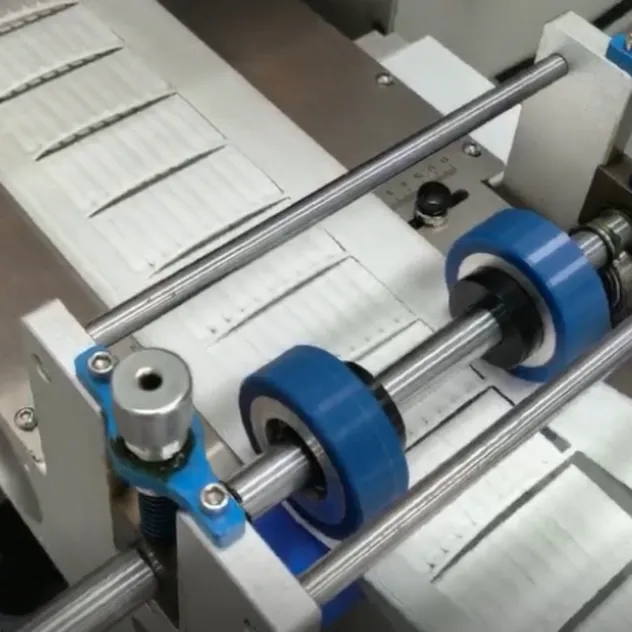

Q: How does the machine ensure the quality of the cut cotton? A: The machine utilizes a high-precision servo-driven feeding system and an integrated clamping mechanism that prevents stretching, ensuring a tolerance within ±0.01mm.
