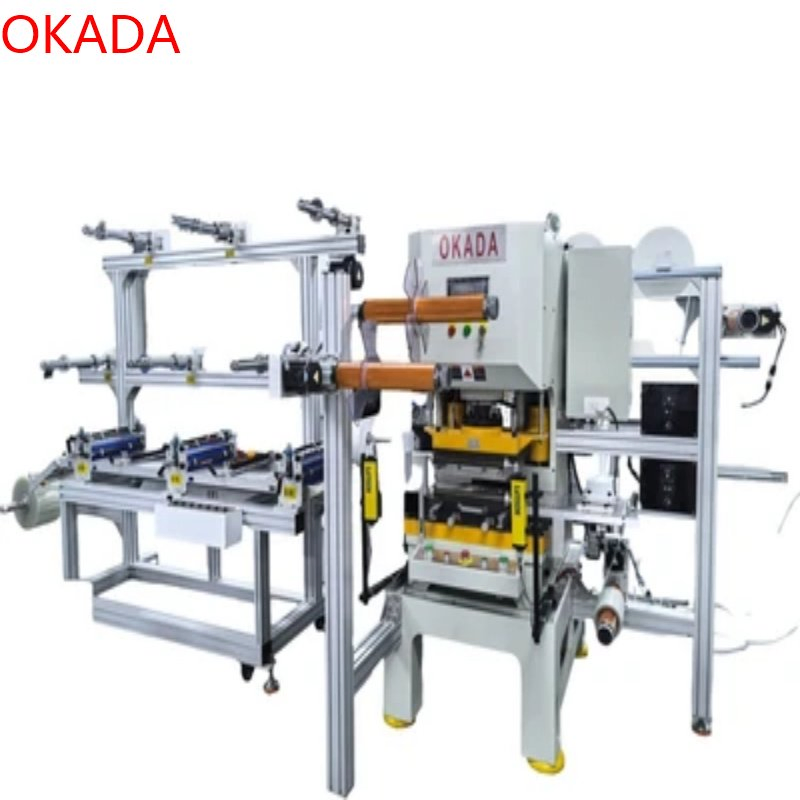

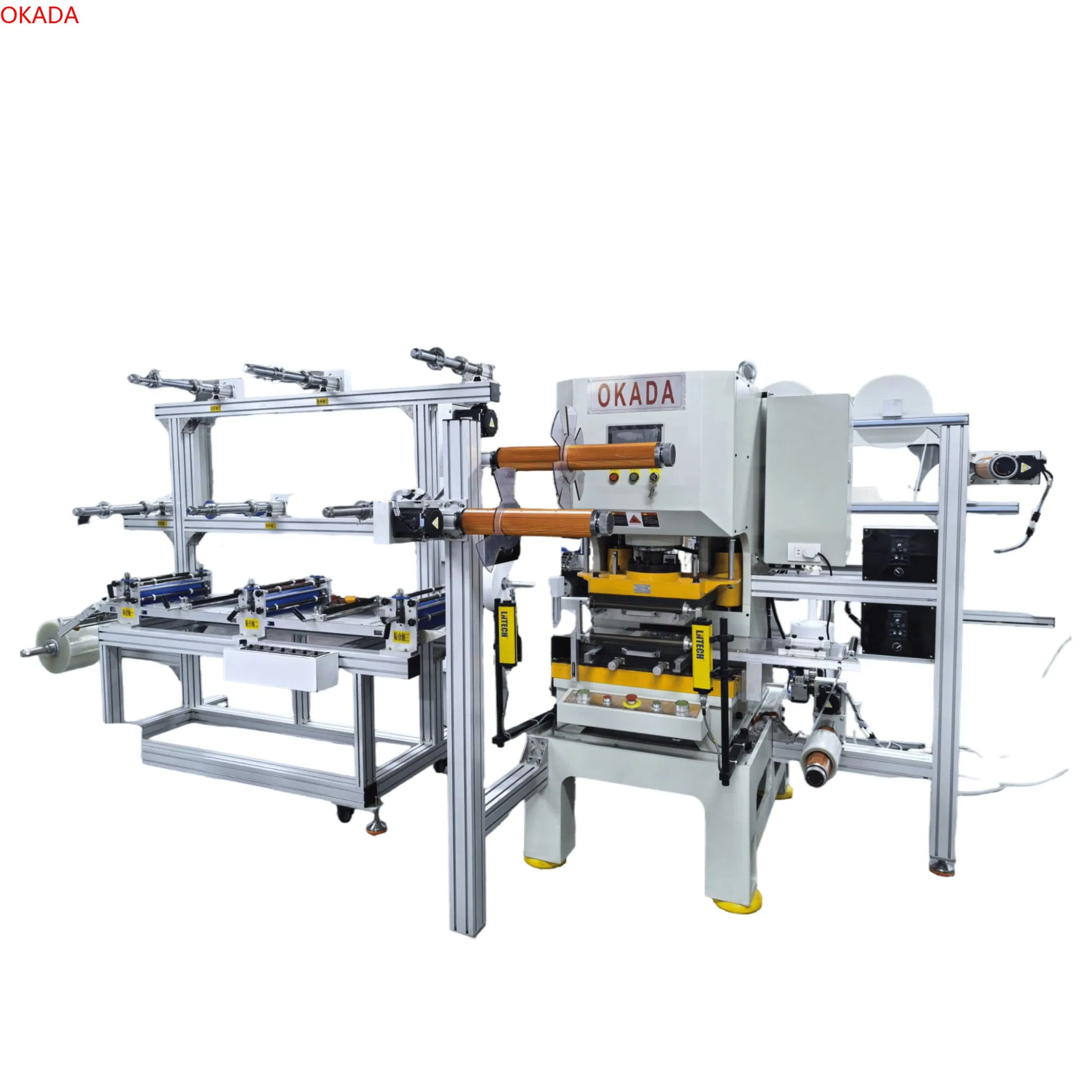

Auto-Indexing Punch Cell for Multi-up Semiconductor Layouts

Customization:	Available
After-sales Service:	Remote Support Instructions by Email
Warranty:	Six Months

1

Basic Information

Model NO.

C

Type

General Punching Machine

Punch Shape

Semi-Open Punch

Slider Movement

Triple Action

Slider Drive

Crank Press

Controlling Mode

CNC

Automatic Grade

Automatic

Precision

High Precision

Certification

ISO 9001

Main Motor

7.5kw

Tonnage

25ton

Material

Metal Coils, Copper, Aluminum, Stainless Steel

2

Product Features

⚙️ Digital Automation

Intuitive HMI and digital control for plug-and-play automation. Highly flexible and stackable for maximum efficiency.

🛡️ Robust Design

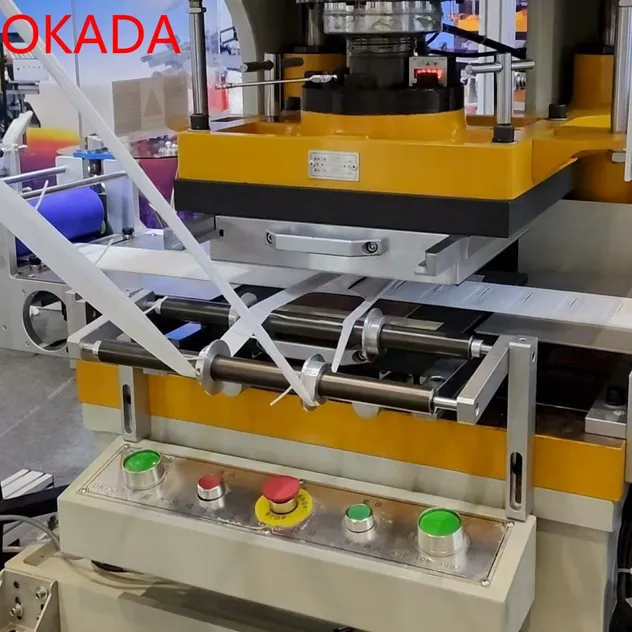

Cast frame with three-post guidance ensuring steady accuracy. Features oil lubrication and overload-proof systems.

⚡ Sync Feeding

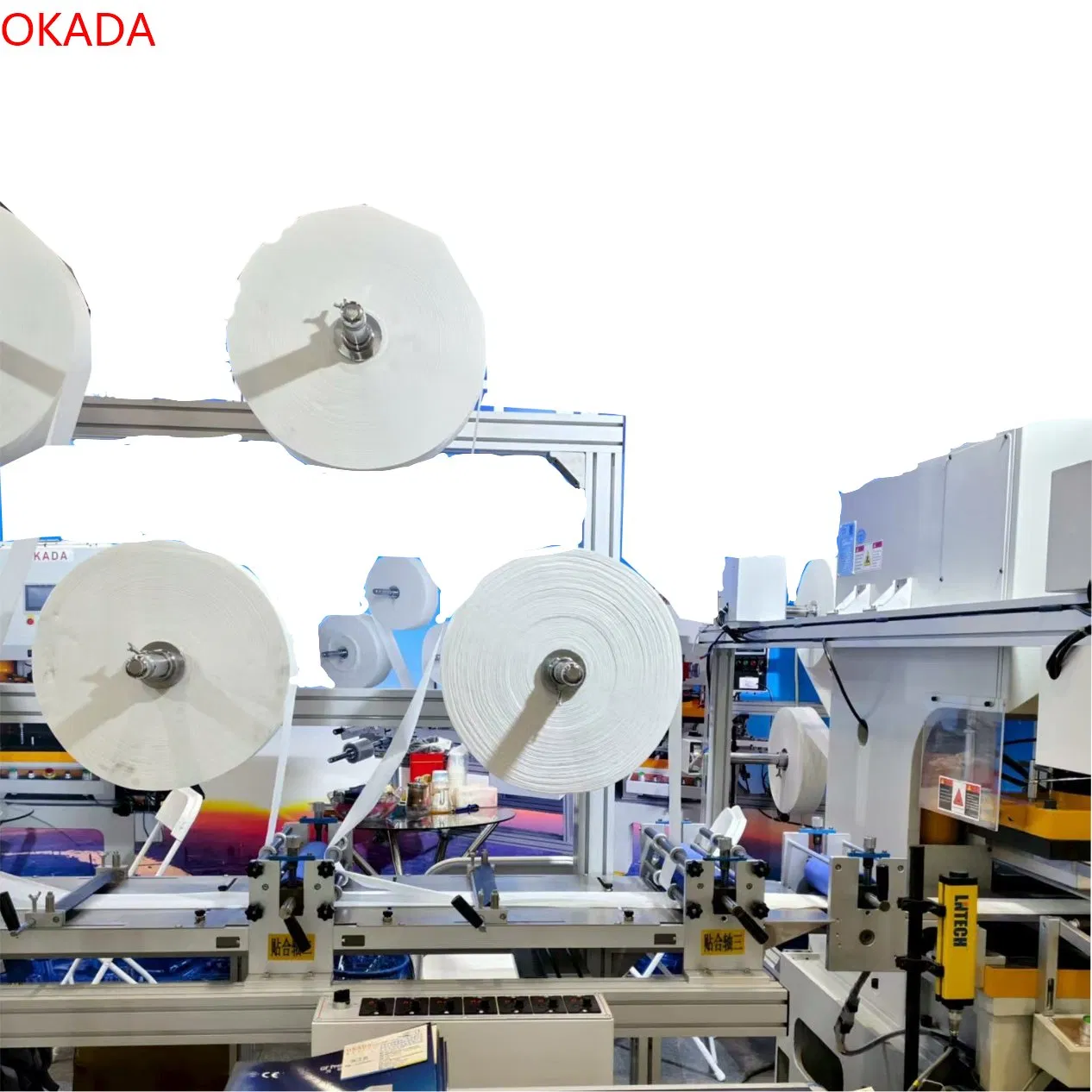

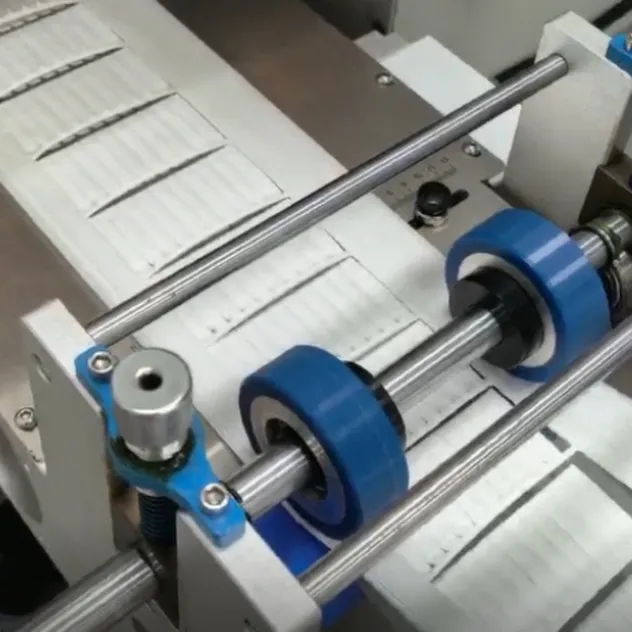

Simultaneous left-right and front-back feeds eliminate web clash. Auto wind, blank, and stop functions on fault detection.

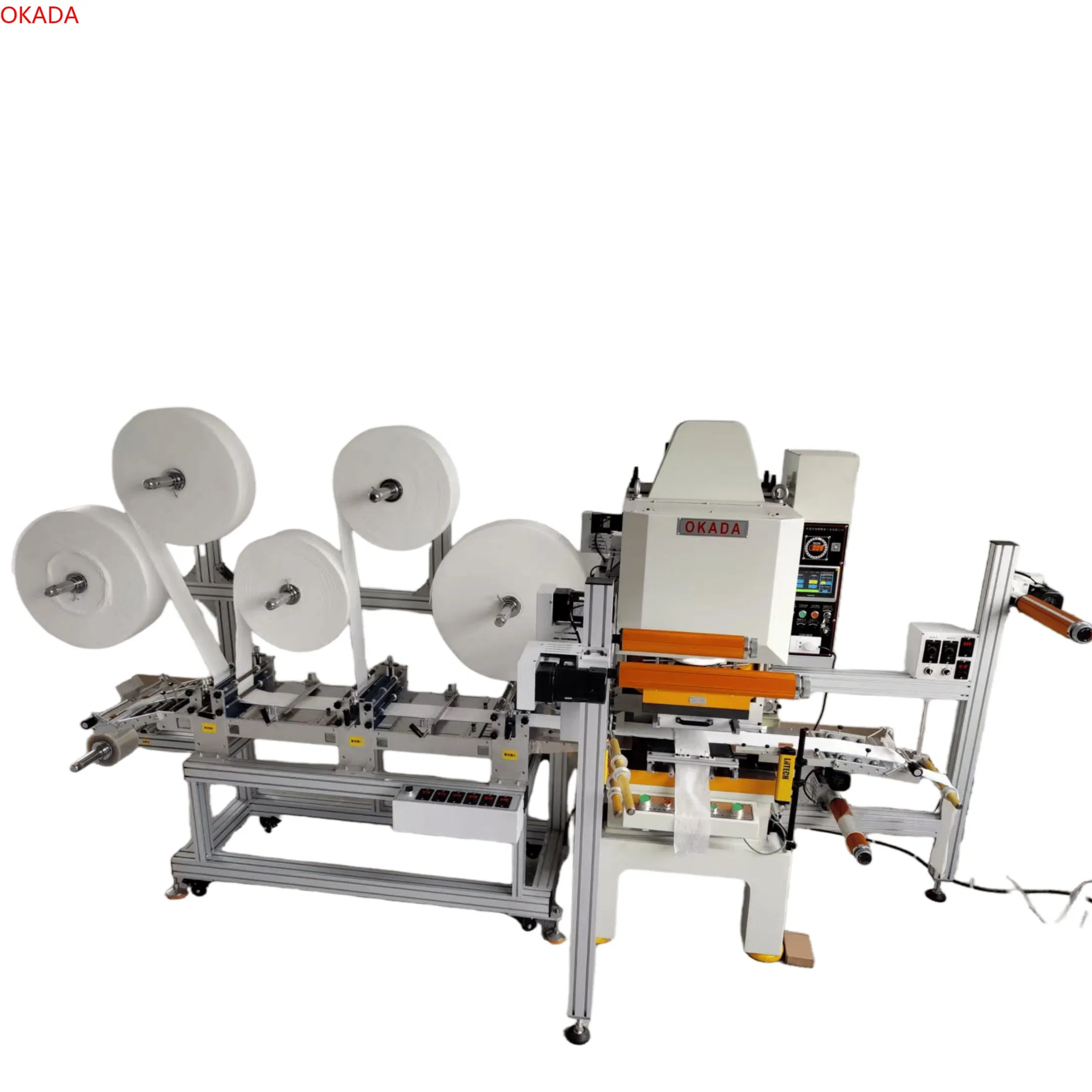

Our dedicated Vape Oil Guide Cotton Blanking Machine is a precision-engineered solution tailored exclusively for the industry, specializing in automated blanking and cutting of oil guide cotton components. Equipped with advanced servo-driven feeding and high-precision die-cutting mechanisms, the machine ensures ultra-flat cut edges, consistent dimensional accuracy (tolerance within ±0.01mm), and seamless adaptation to various oil guide cotton specifications, including organic cotton and composite cotton materials.

3

Technical Parameters

Specification	Unit	25TON Performance
Impulse generating position	mm	1.2
Stroke length	mm	60
Max. closing working height	mm	175-205
Number of strokes	s.p.m	60-150
Adjustment of sliding block	mm	30
Upper table size	LRxFB	400x300
Main motor	KW	7.5

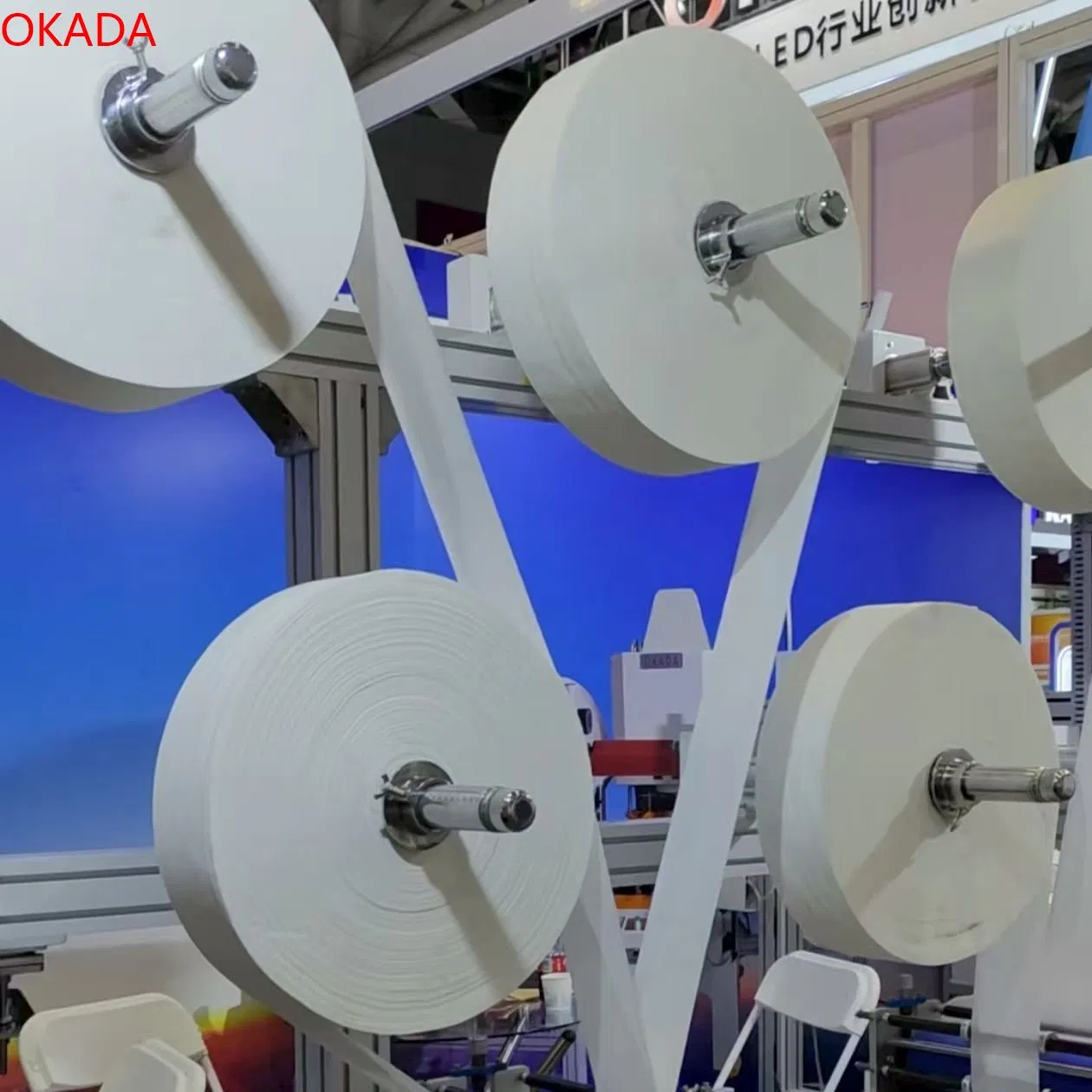

Cigarette cotton reels	-	4+2 / 5+2 / 6+2

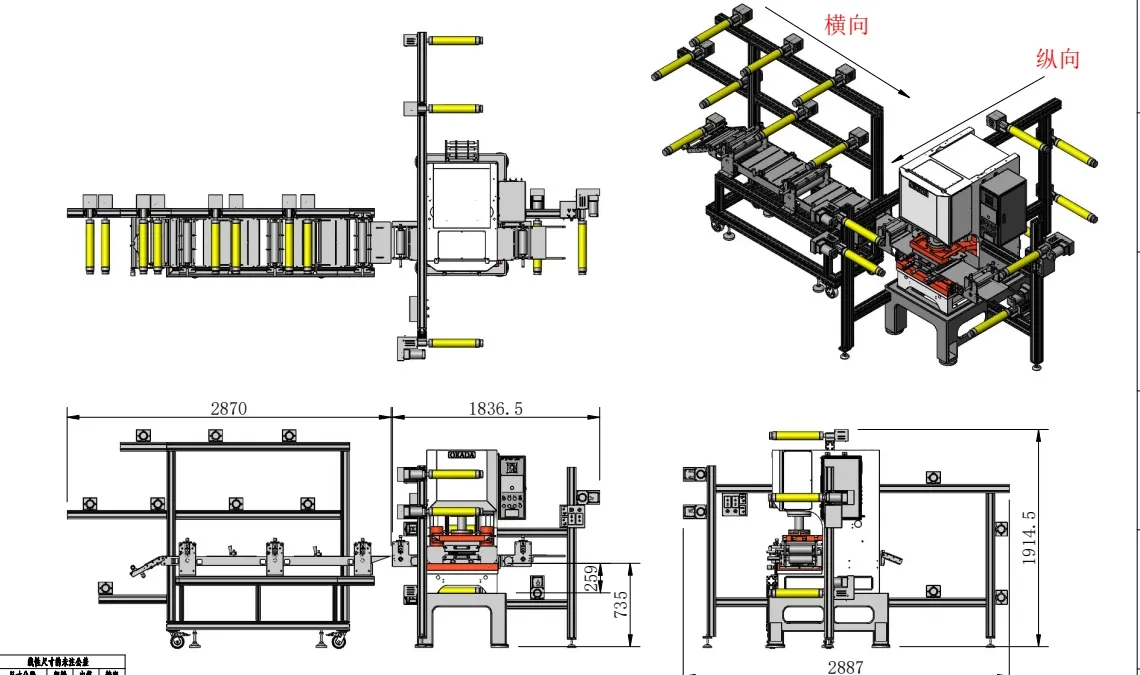

Detailed CAD drawings and dimensional diagrams are available upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.
