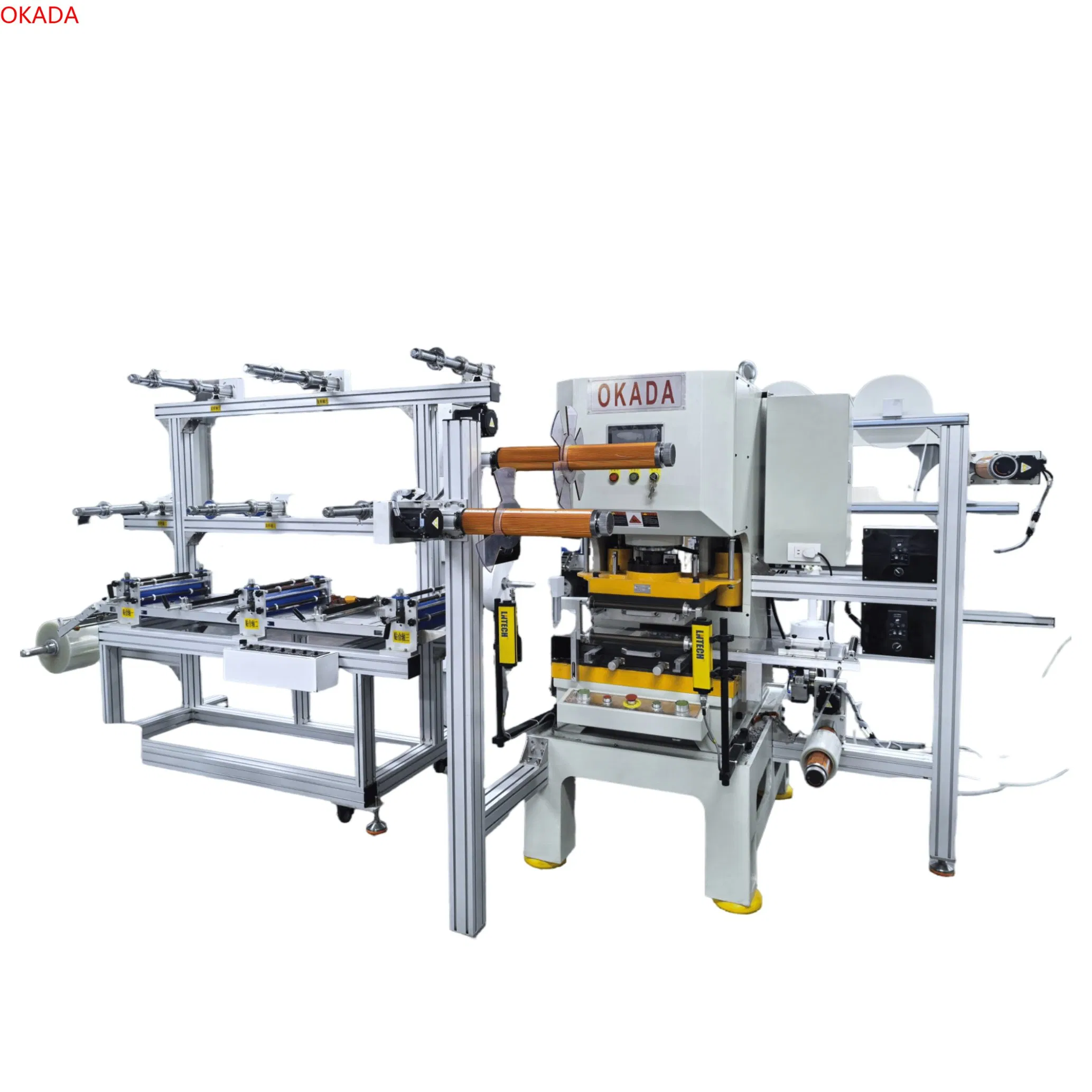

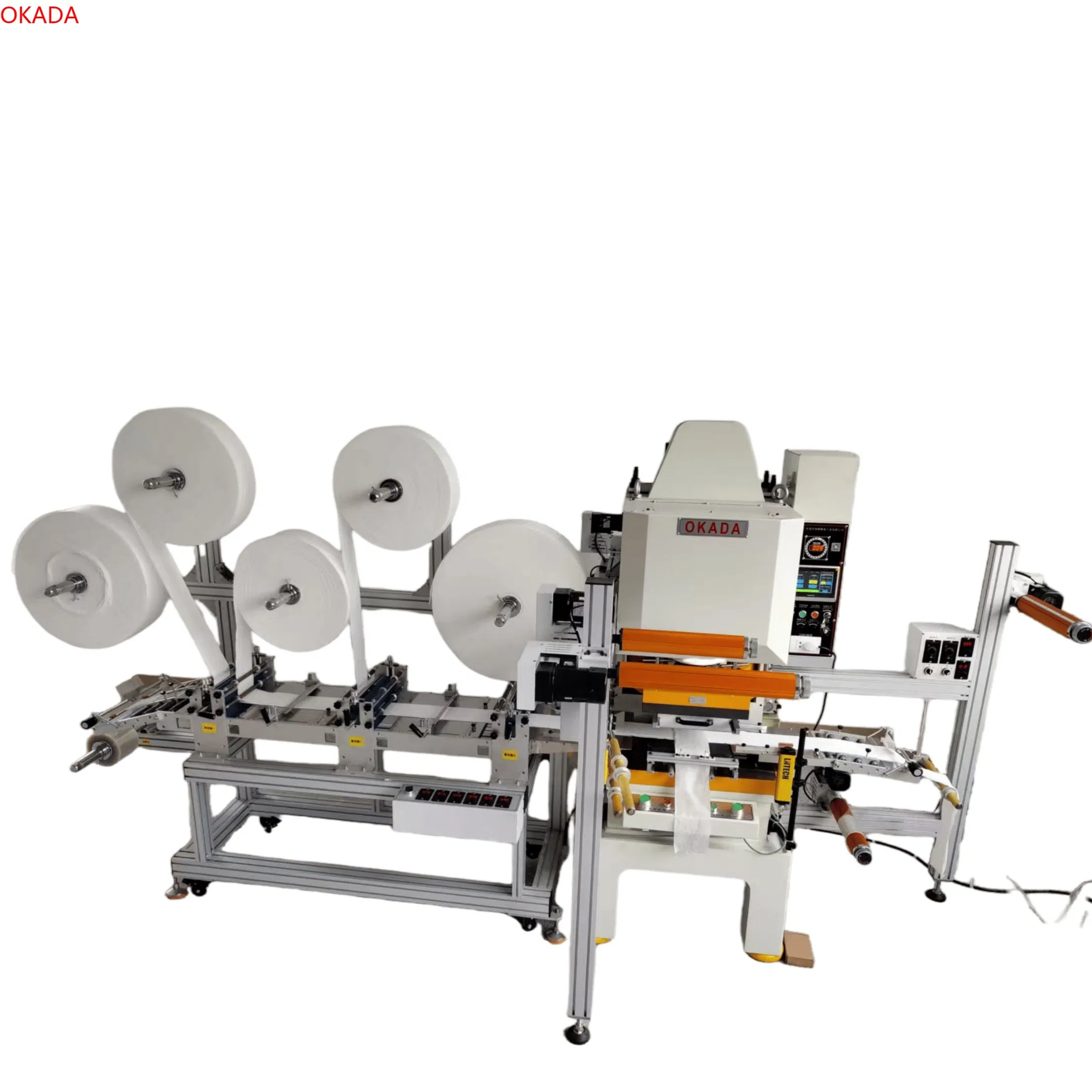

Our dedicated Vape Oil Guide Cotton Blanking Machine is a precision-engineered solution tailored exclusively for the e-cigarette manufacturing industry, specializing in automated blanking and cutting of oil guide cotton components. Equipped with advanced servo-driven feeding and high-precision die-cutting mechanisms, the machine ensures ultra-flat cut edges, consistent dimensional accuracy (tolerance within ±0.01mm), and seamless adaptation to various oil guide cotton specifications.
Its integrated positioning and clamping system effectively prevents cotton loosening or stretching during processing, avoiding fiber damage and ensuring optimal oil absorption performance of the finished products. Featuring an intuitive digital control panel, operators can easily adjust cutting parameters, batch settings and processing speed (60-150 cycles per minute) to match different production demands.
| Specification | Unit | 25TON |
|---|---|---|
| Model | - | C |
| Impulse generating position | mm | 1.2 |
| Stroke length | mm | 60 |
| Maximum closing working height | mm | 175-205 |
| Number of strokes | s.p.m | 60-150 |
| Adjustment amount of sliding block | mm | 30 |
| Upper table size | LRXFB | 400x300 |
| Main motor | KW | 7.5 |

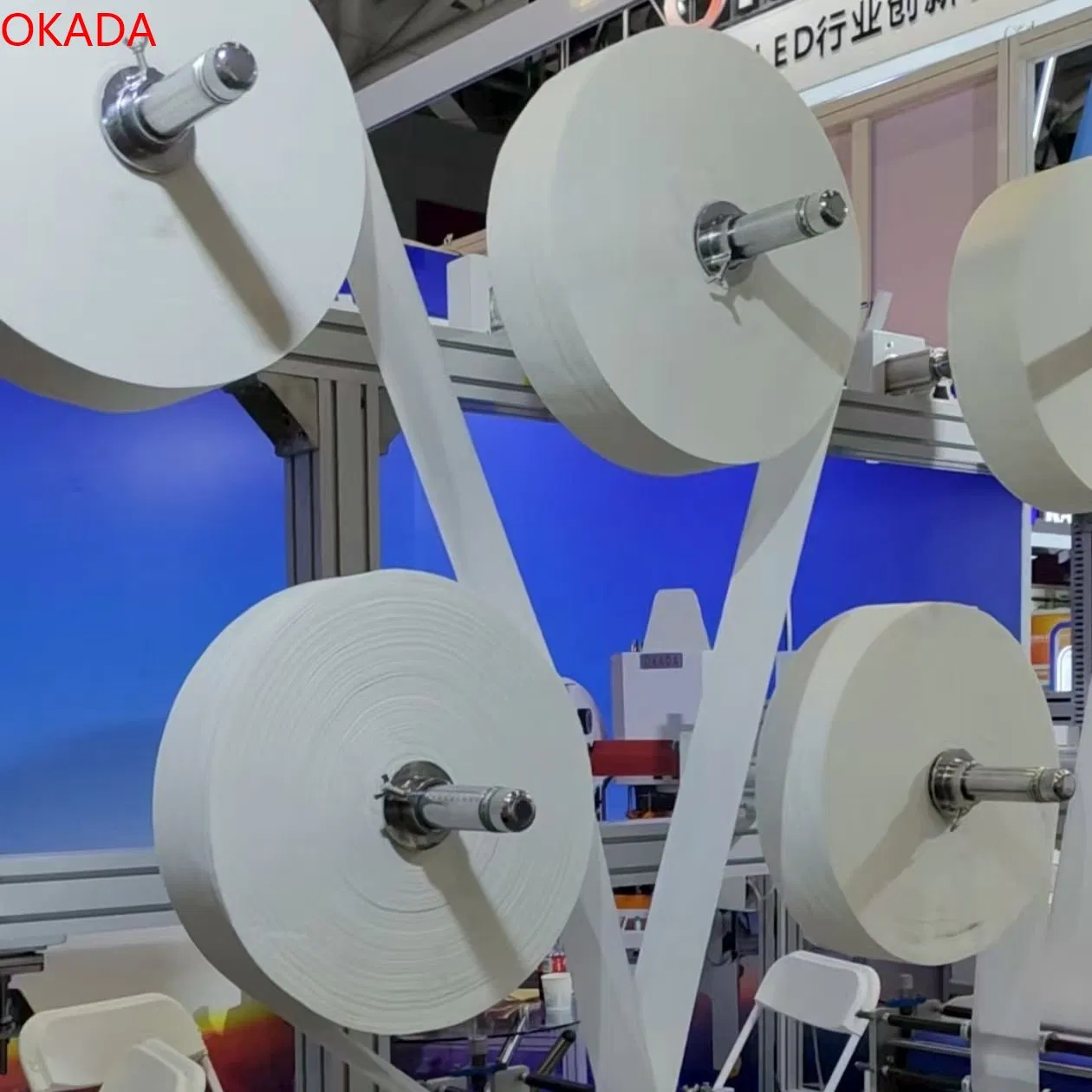

| Number of cigarette cotton reels | - | 4+2/5+2/6+2 |
Detailed CAD drawings and dimensional diagrams are available upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.
