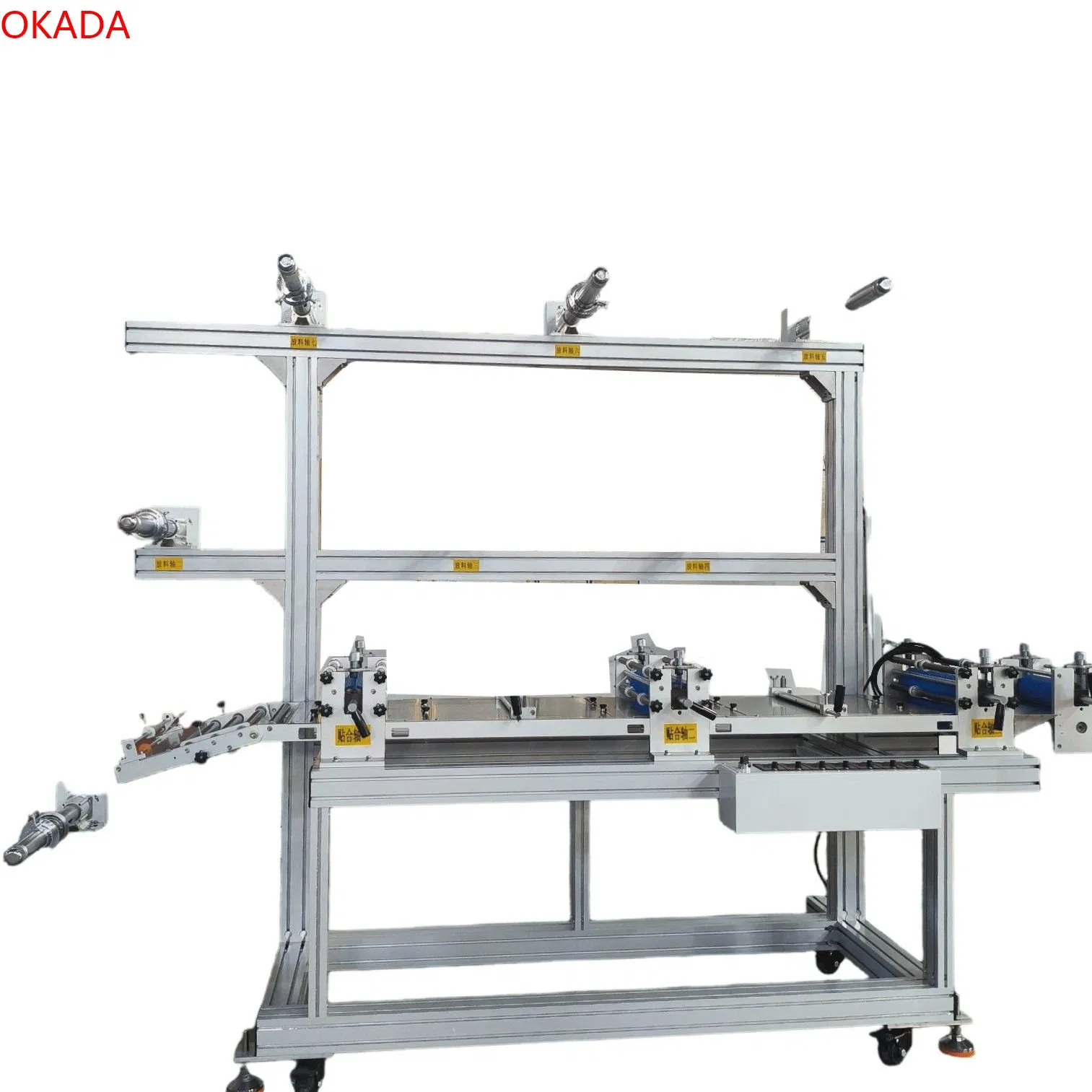

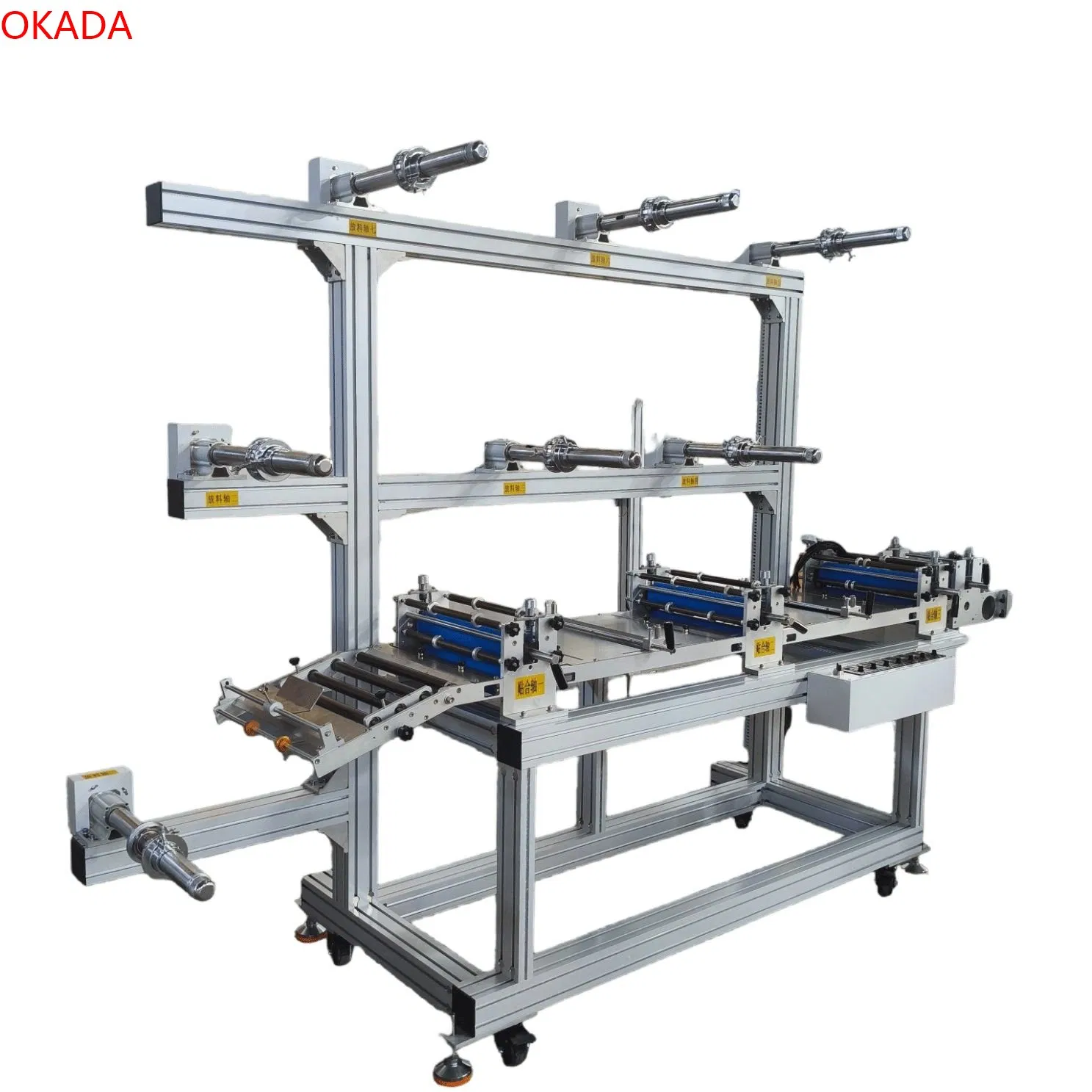

Multi Function Piercing Tool with Premium Cotton for E Cigarettes

Customization:	Available
After-sales Service:	Remote Support Instructions by Email
Warranty:	Six Months

1

Basic Specifications

Model NO.

25Ton 6+3

Type

General Punching Machine

Punch Shape

Semi-Open Punch

Slider Movement

Triple Action

Drive Mechanism

Crank Press

Controlling Mode

CNC

Automatic Grade

Automatic

Precision

High Precision

Certification

ISO 9001

Material

Metal Coils, Copper, Aluminum, Stainless Steel

Main Motor

7.5kw

HS Code

84624621

2

Product Description

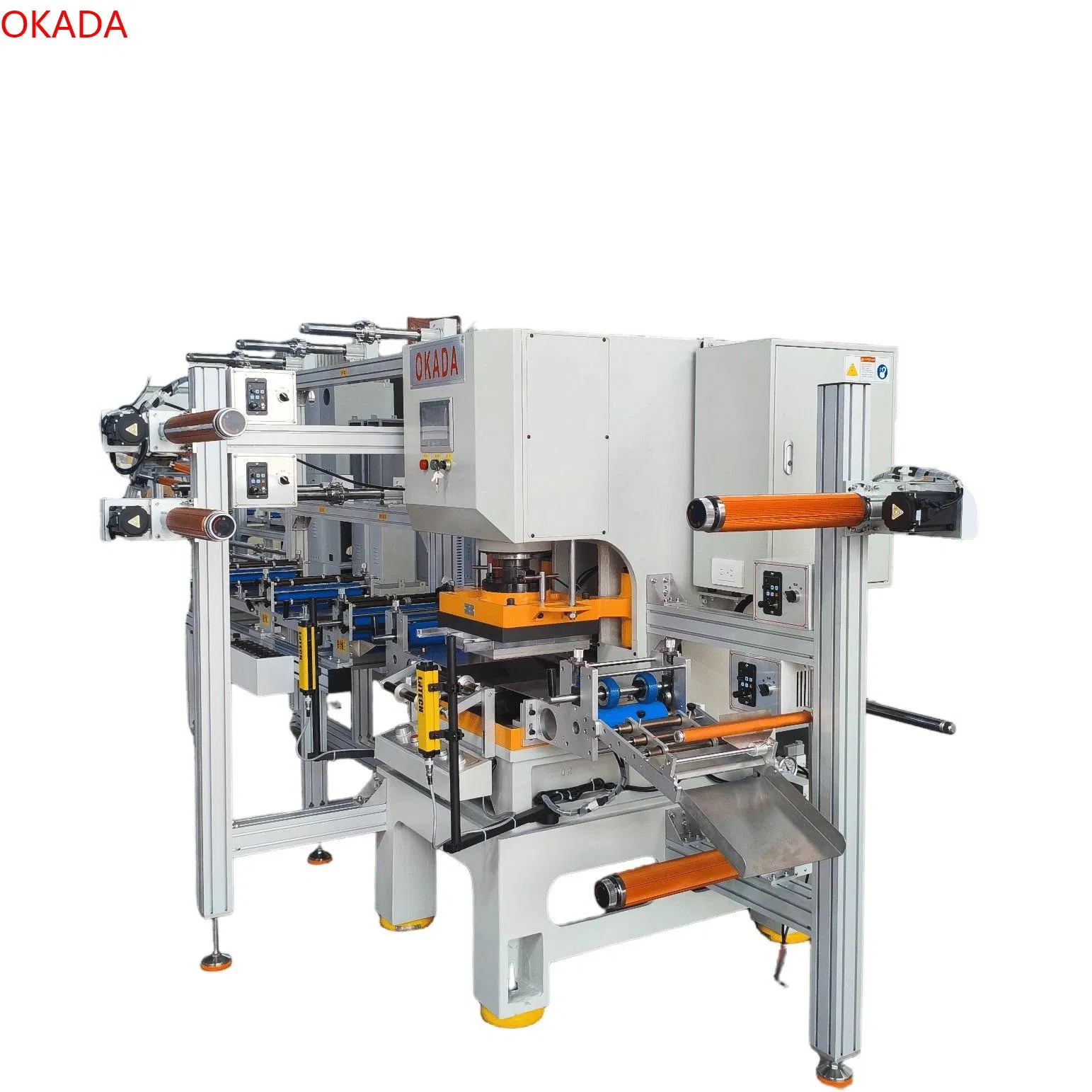

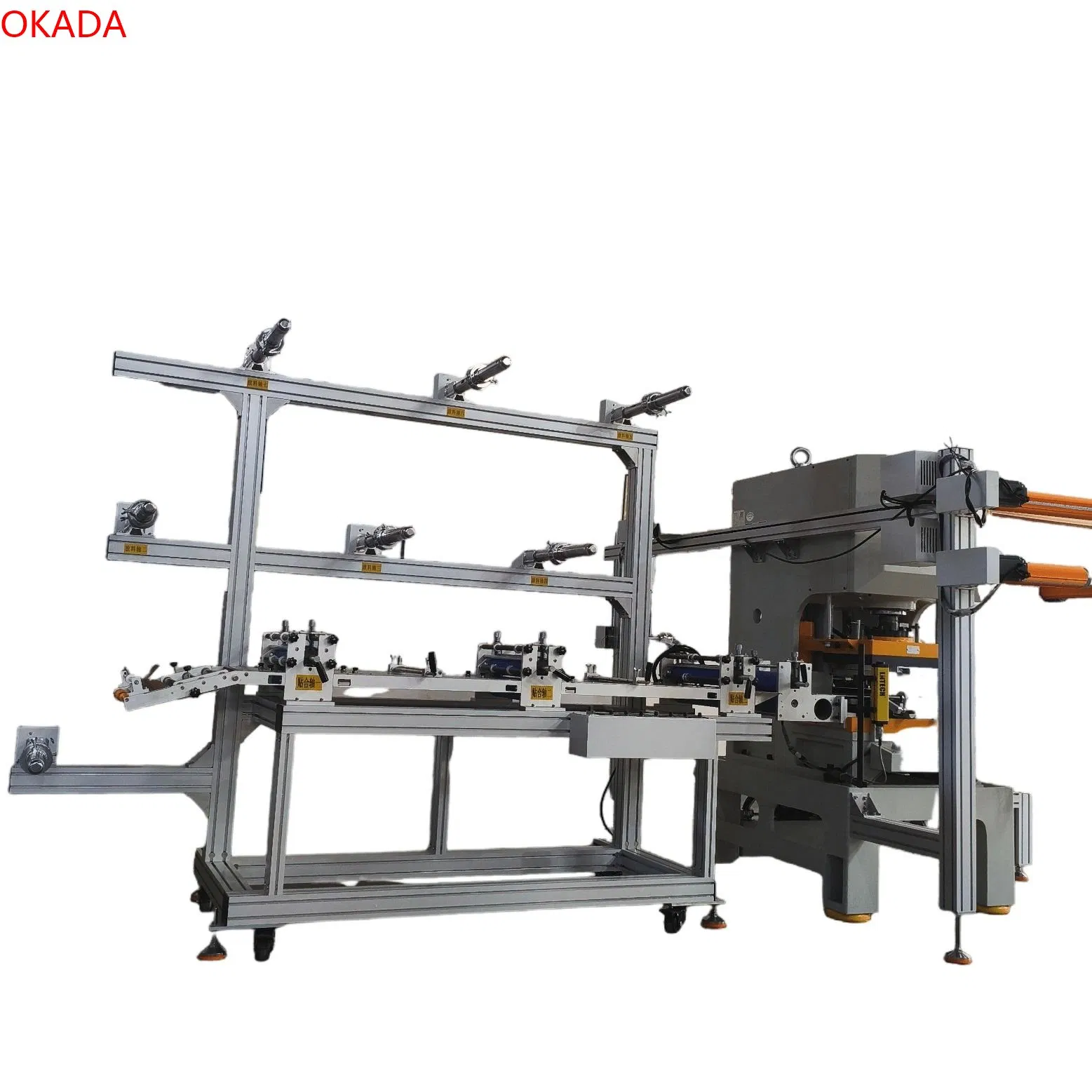

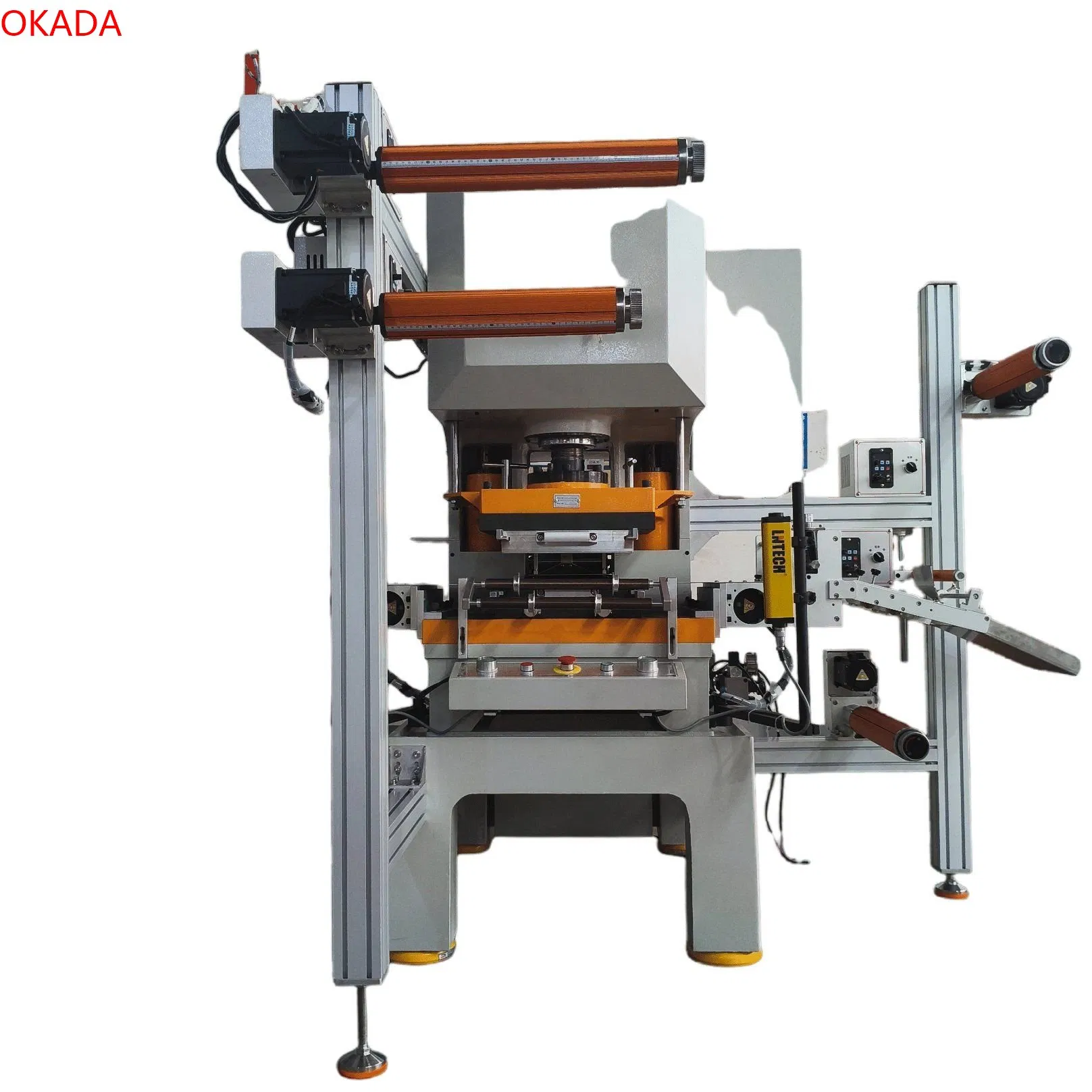

Vape Oil Guide Cotton Blanking Machine: A precision-engineered solution tailored for the e-cigarette manufacturing industry, specializing in automated blanking and cutting of oil guide cotton components.

Intuitive HMI and digital control with plug-and-play automation; stackable, flexible, and high-efficiency.

Cast frame with three-post guidance; front-to-back pass-through design ensures steady accuracy.

Variable speed control with oil lubrication and integrated overload protection.

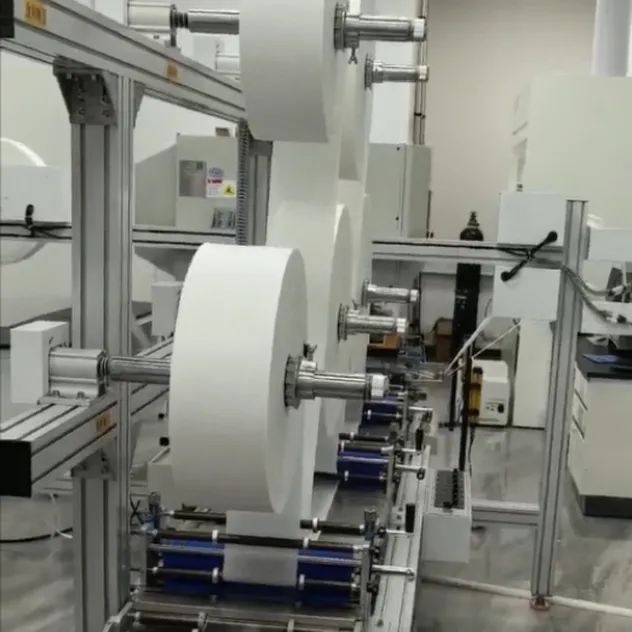

Simultaneous left-right & front-back feeds eliminate multi-layer web clash.

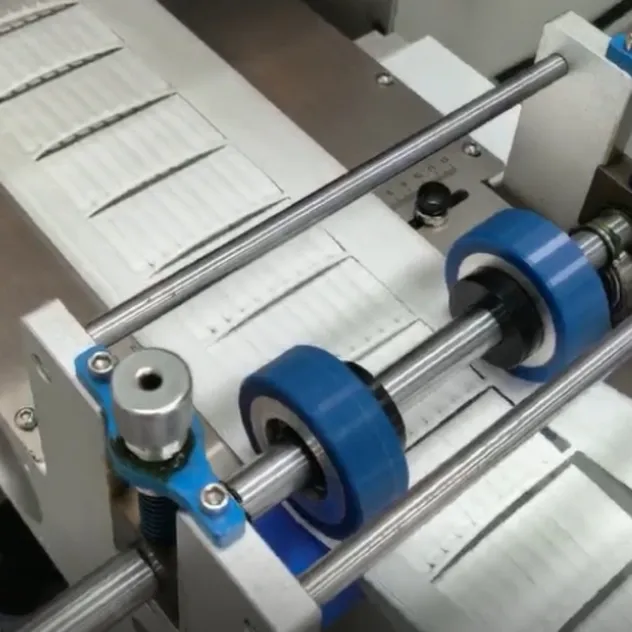

Integrated positioning and clamping system prevents cotton loosening or stretching.

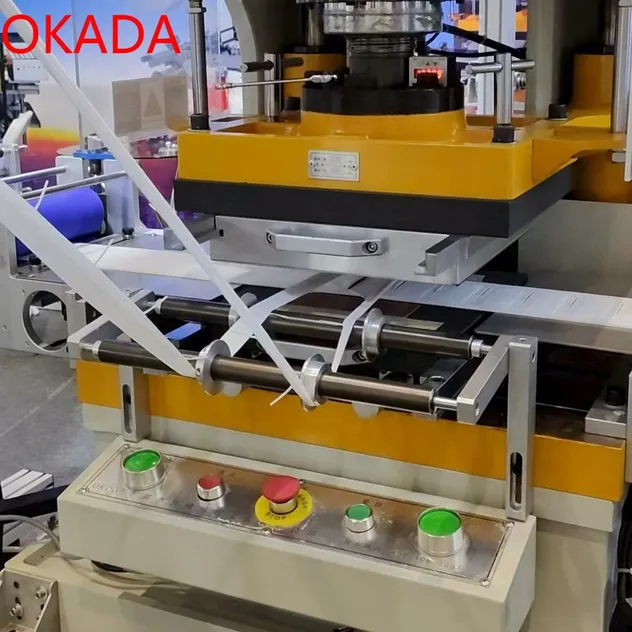

Equipped with advanced servo-driven feeding and high-precision die-cutting mechanisms, the machine ensures ultra-flat cut edges and consistent dimensional accuracy (tolerance within ±0.01mm). It adapts seamlessly to various oil guide cotton specifications, including organic and composite materials. This system significantly boosts production efficiency by 3-5 times compared to manual cutting.

3

Product Parameters

Specification	Unit	25TON Value
Impulse generating position	mm	1.2
Stroke length	mm	60
Max closing working height	mm	175-205
Number of strokes	s.p.m	60-150
Adjustment of sliding block	mm	30
Upper table size	mm	400x300
Main motor	KW	7.5
Cotton reels capacity	-	4+2 / 5+2 / 6+2
