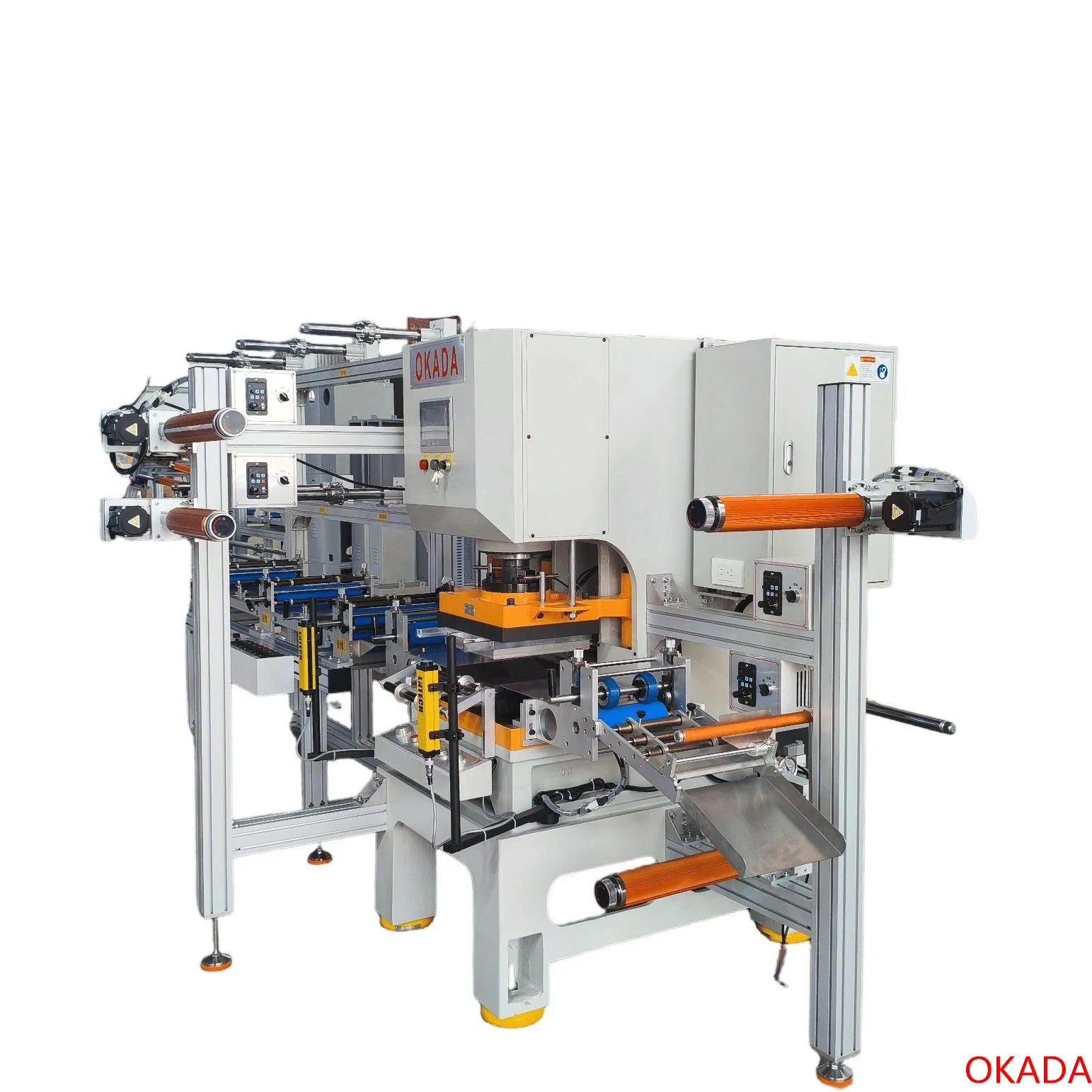

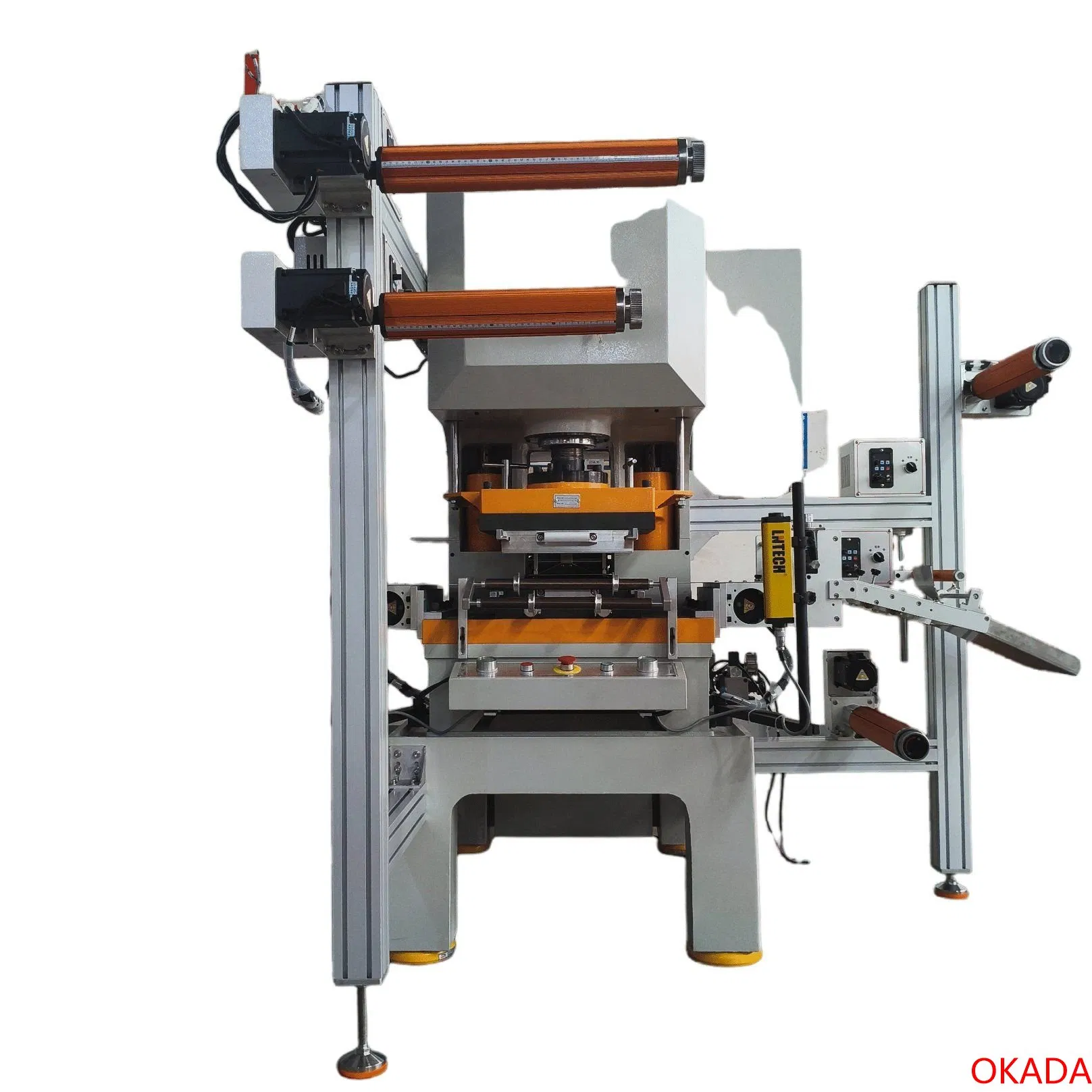

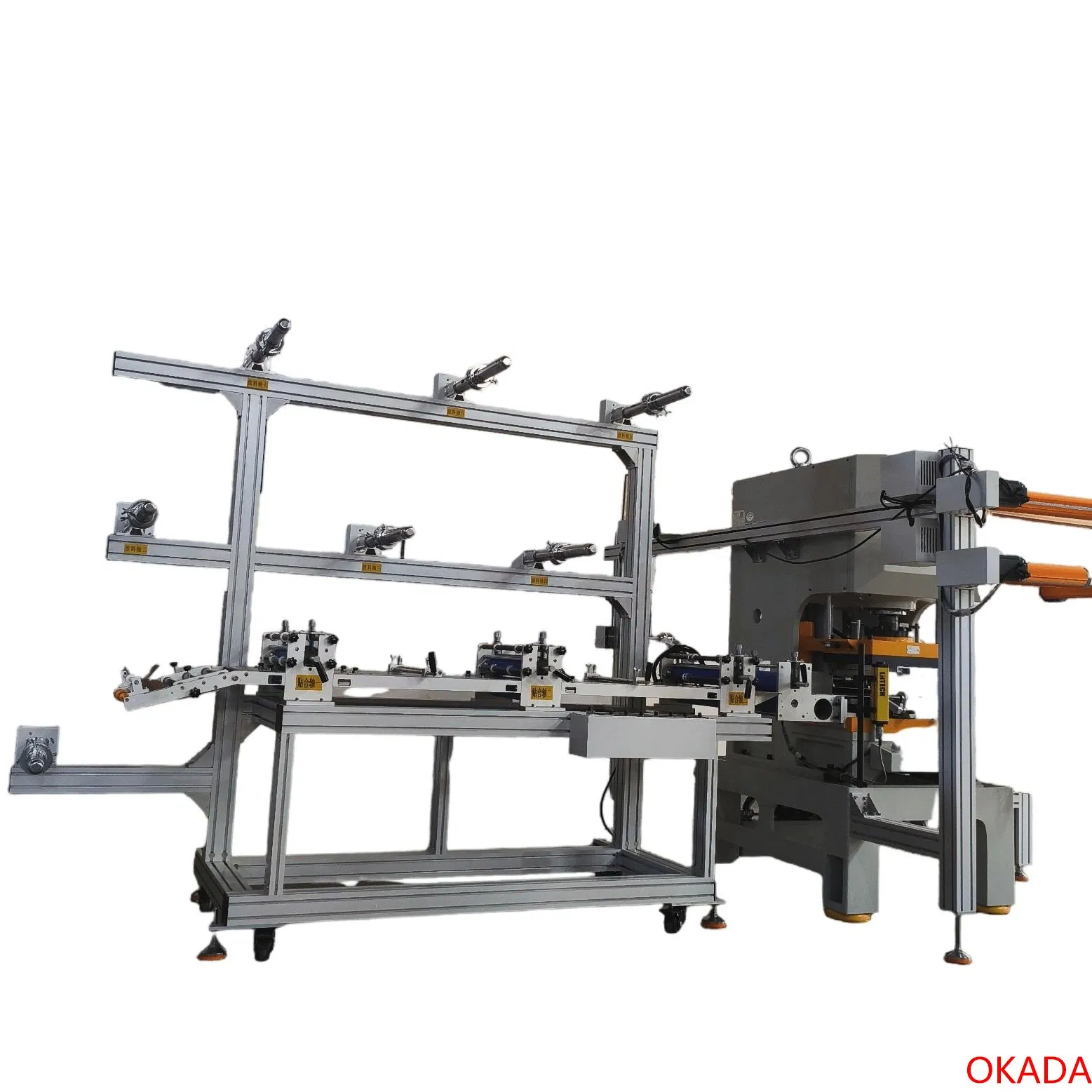

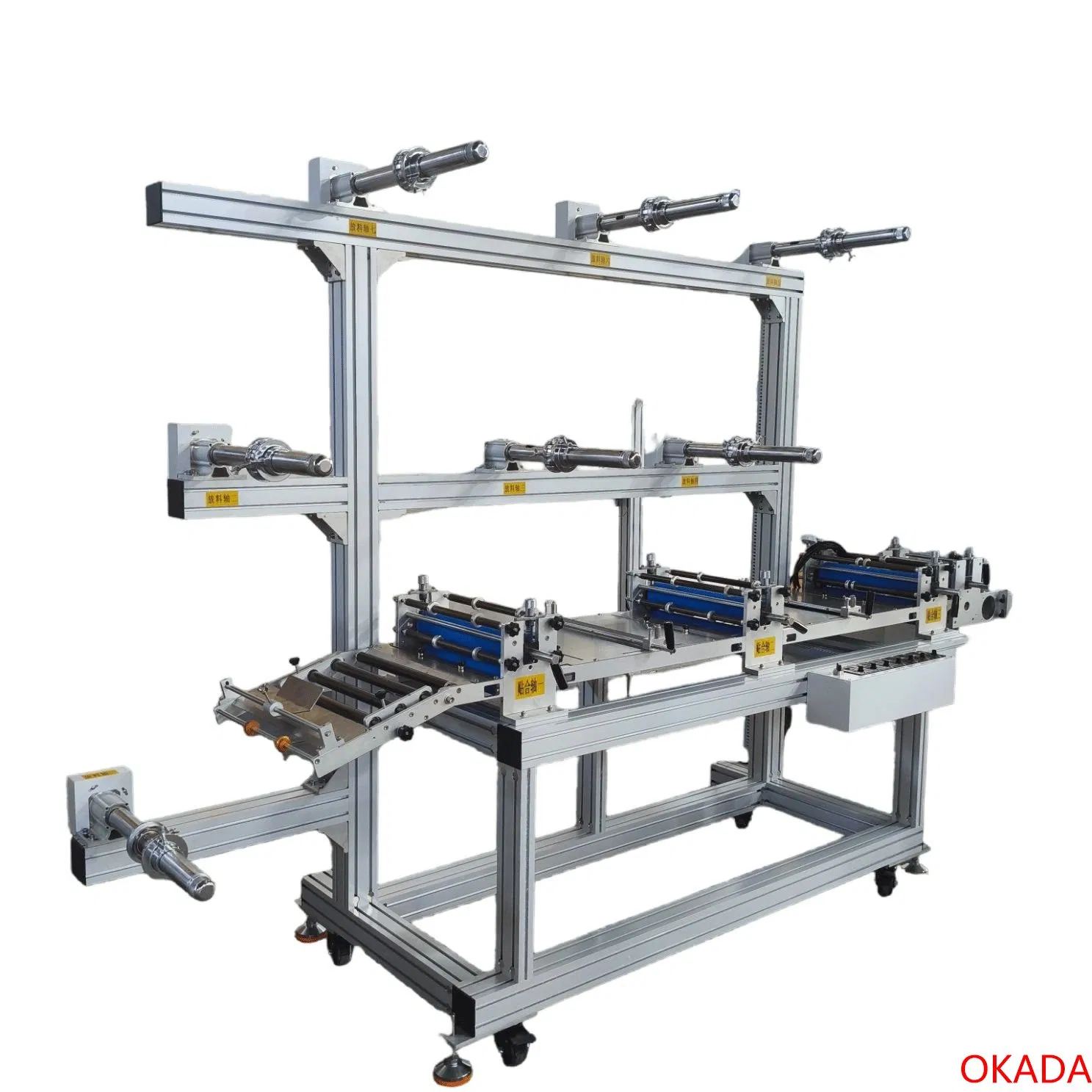

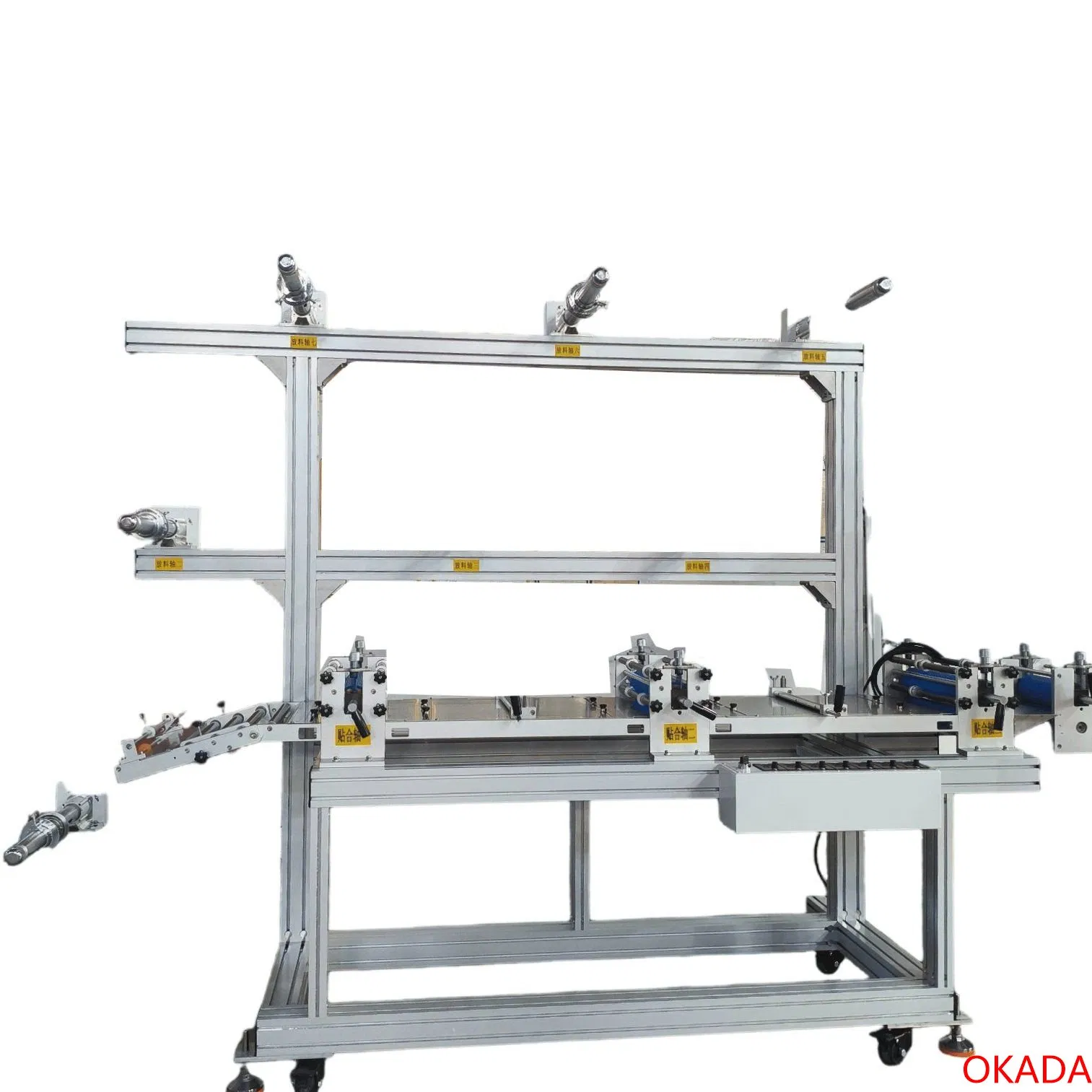

Precision-Gauge Needle Piercing Tool with Absorbent Cotton Wicks

1 / 5

Precision-Gauge Needle Piercing Tool with Absorbent Cotton Wicks

Customization:	Available
After-sales Service:	Remote Support Instructions by Email
Warranty:	Six Months

Send Inquiry

Product Description

Basic Information

Model NO.	SF25 6+3
Type	General Punching Machine
Punch Shape	Semi-Open Punch
Slider Movement	Triple Action
Slider Drive Mechanism	Crank Press
Controlling Mode	CNC
Automatic Grade	Automatic
Power Source	Joint Drive
Precision	High Precision
Certification	ISO 9001
Material	Metal Coils, Copper, Aluminum, Stainless Steel
Main Motor	7.5kw
Tonnage	25ton

Product Description

●

Smart Automation: Intuitive HMI and digital control for plug-and-play operation; stackable, flexible, and high-efficiency.

●

Robust Construction: Cast frame with three-post guidance ensuring steady accuracy, variable speed, and overload protection.

●

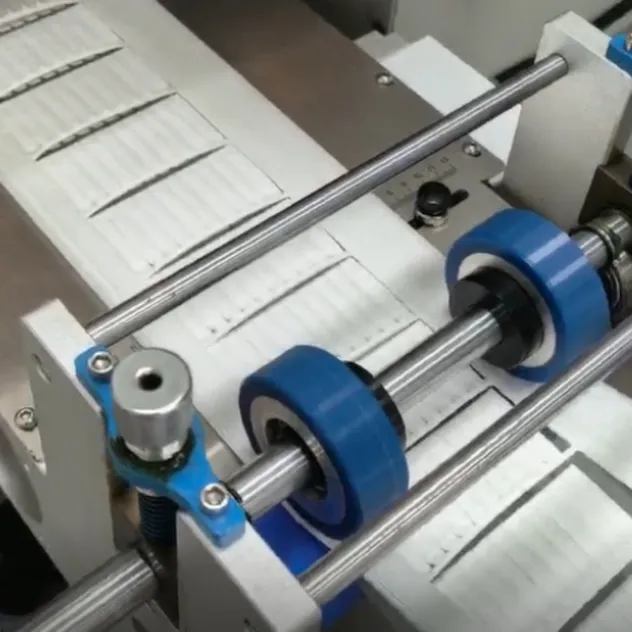

Advanced Feeding: Simultaneous multi-directional feeds eliminate web clash; includes auto wind and fault-stop functions.

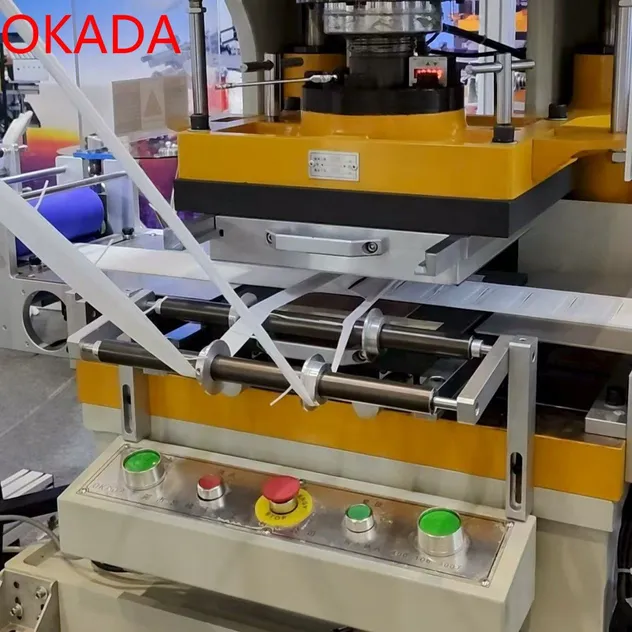

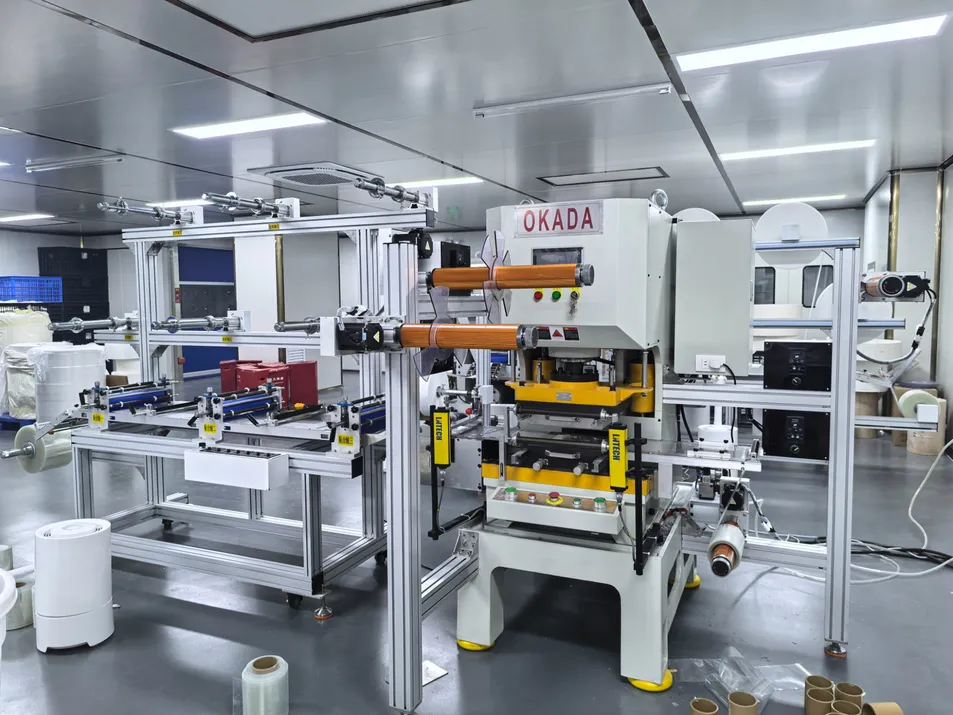

Our dedicated Vape Oil Guide Cotton Blanking Machine is a precision-engineered solution tailored exclusively for the e-cigarette manufacturing industry. Equipped with advanced servo-driven feeding and high-precision die-cutting mechanisms, it ensures ultra-flat cut edges and dimensional accuracy within ±0.01mm. The machine adapts seamlessly to various cotton materials, ensuring optimal oil absorption and reducing fiber damage.

Technical Parameters

Specification	Unit	25 TON Model
Impulse generating position	mm	1.2
Stroke length	mm	60
Maximum closing working height	mm	175-205
Number of strokes	s.p.m	60-150
Adjustment amount of sliding block	mm	30
Upper table size (LRxFB)	mm	400x300
Main motor	KW	7.5

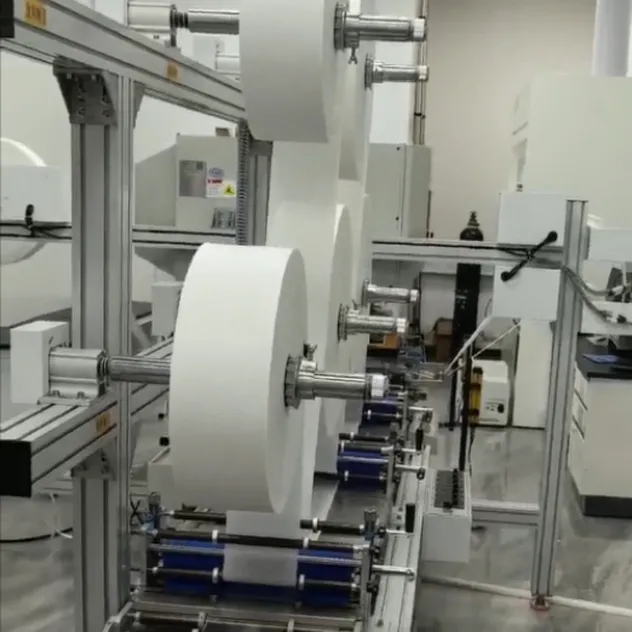

Cigarette cotton reels capacity	-	4+2 / 5+2 / 6+2

After Sales Service

Standard Warranty: 6 months or 2,000 operating hours.

Extended Warranty: Optional coverage up to 12 months.

Global Support: 24/7 technical assistance and spare parts supply.

Training: On-site or remote operation and maintenance training.

Exhibition & Certifications

Frequently Asked Questions

Q: What is the main application of this machine? A: It is specifically designed for high-precision blanking and cutting of oil guide cotton components used in e-cigarette atomizers.

Q: What is the production speed of the SF25 6+3 model? A: The machine operates at a speed of 60 to 150 strokes per minute (s.p.m), significantly boosting efficiency compared to manual processes.

Q: What is the lead time for standard and customized orders? A: Standard models typically ship within 15–30 days, while customized units require approximately 30–45 days.

Q: Does the machine support different cotton materials? A: Yes, it is compatible with organic cotton, composite cotton, and other materials commonly used in the vape industry.

Q: Can I request customized sizes for the cutting attachments? A: Absolutely. We offer tailored designs and attachments to meet your specific project requirements.

Q: What kind of precision can I expect from the cuts? A: The machine features high-precision die-cutting mechanisms that maintain dimensional accuracy within a tolerance of ±0.01mm.
