| Model NO. | SF25 6+3 |
| Type | General Punching Machine |
| Punch Shape | Semi-Open Punch |
| Slider Movement | Triple Action |
| Controlling Mode | CNC |
| Automatic Grade | Automatic |
| Precision | High Precision |
| Material | Metal Coils, Copper, Aluminum, Stainless Steel |
| Main Motor | 7.5kw |
| Tonnage | 25ton |

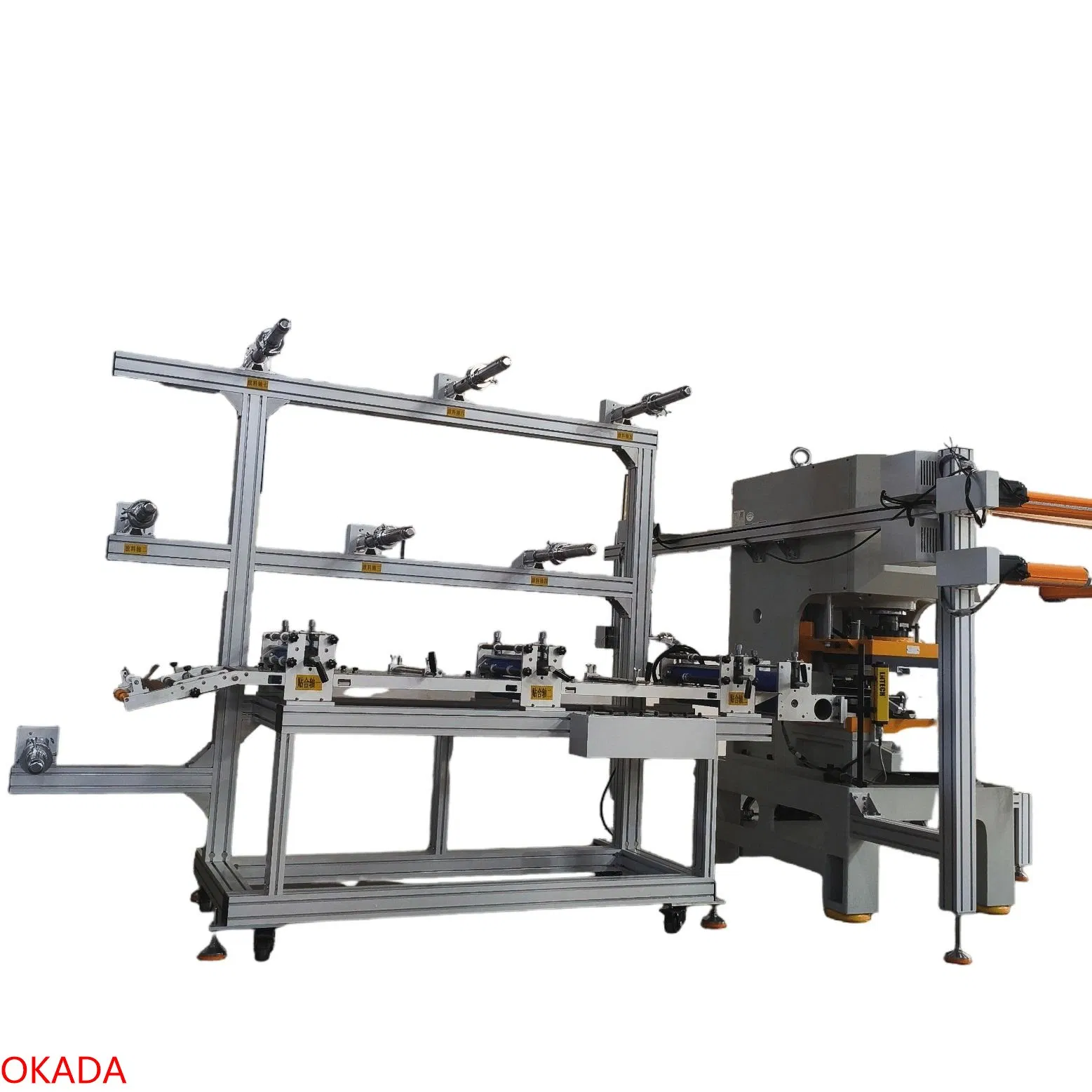

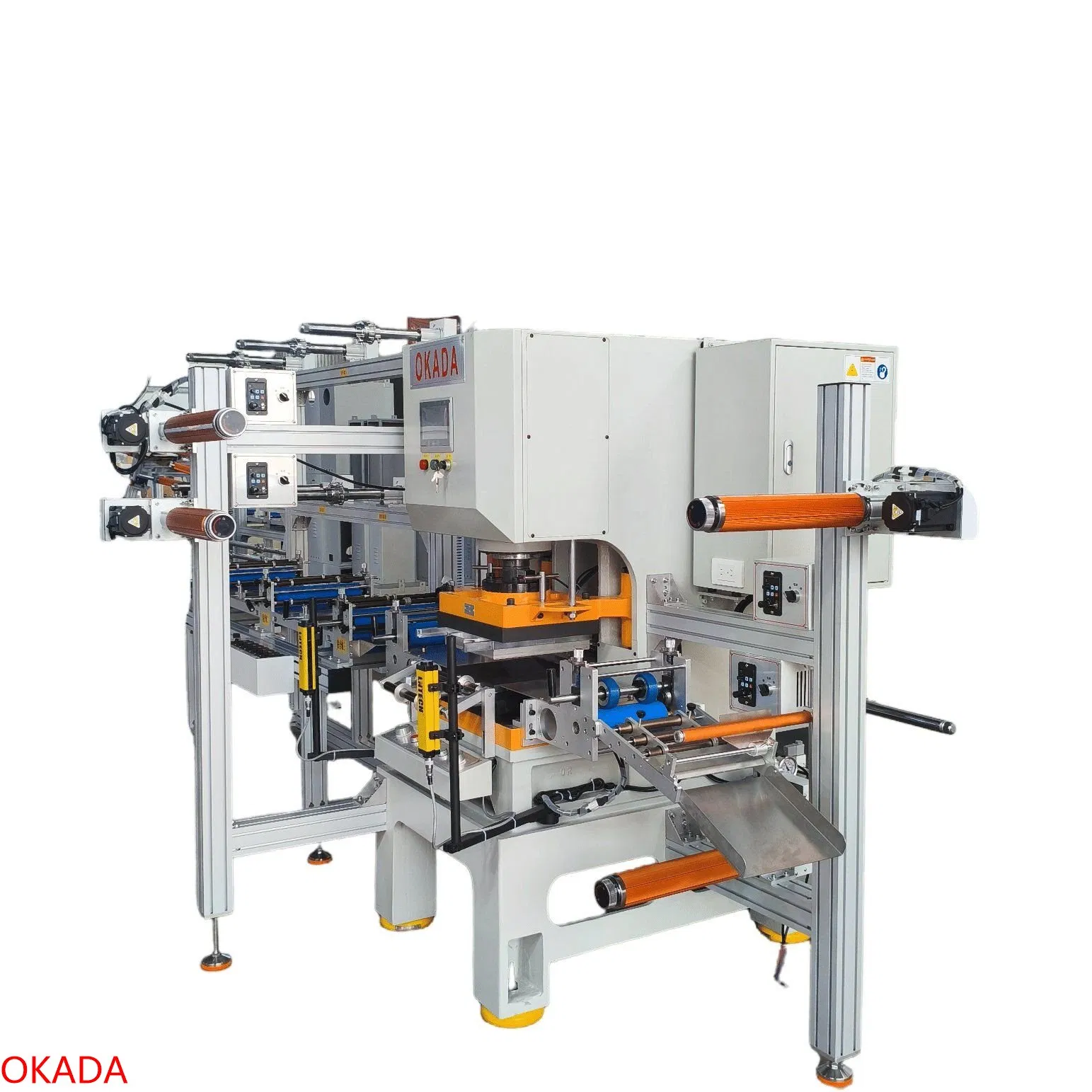

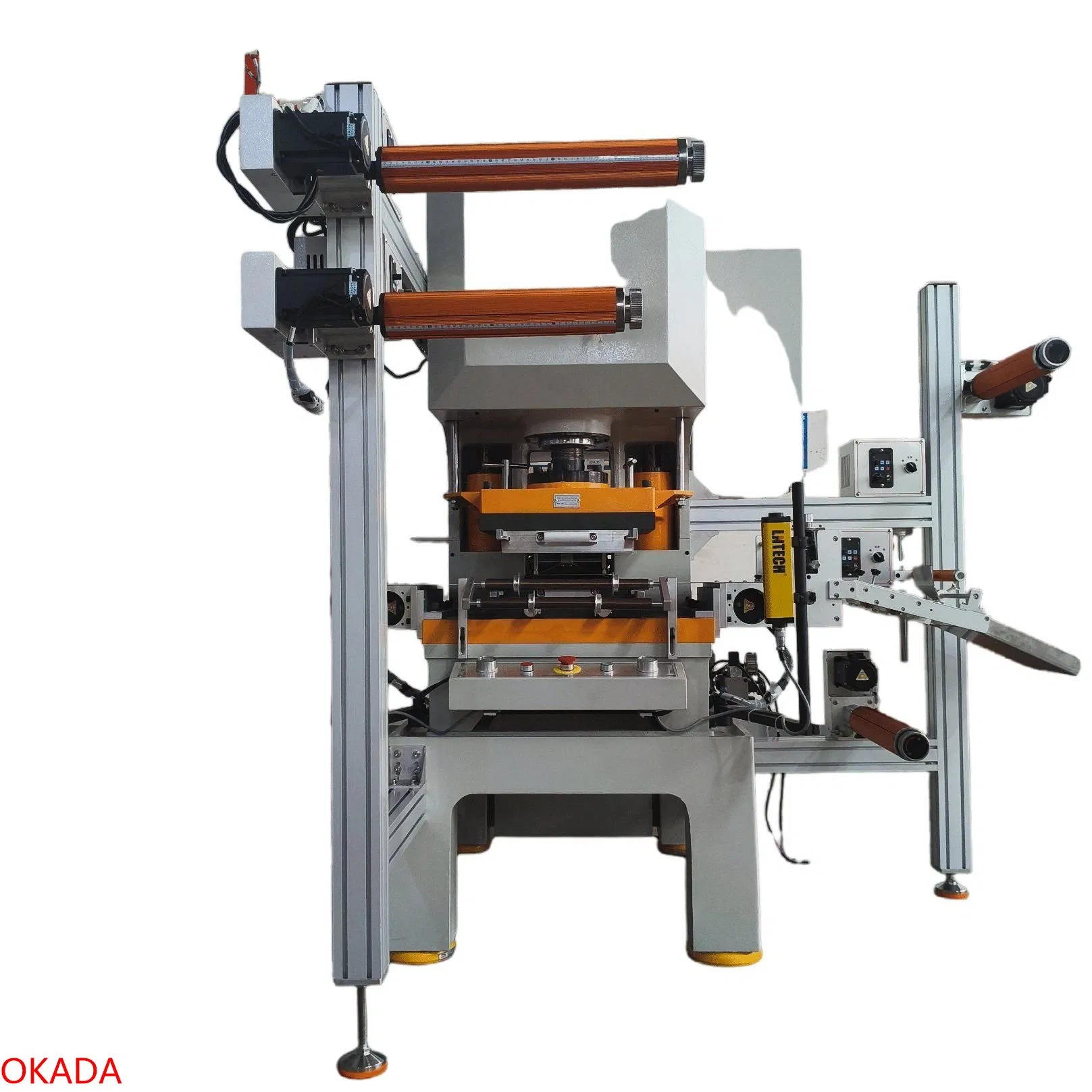

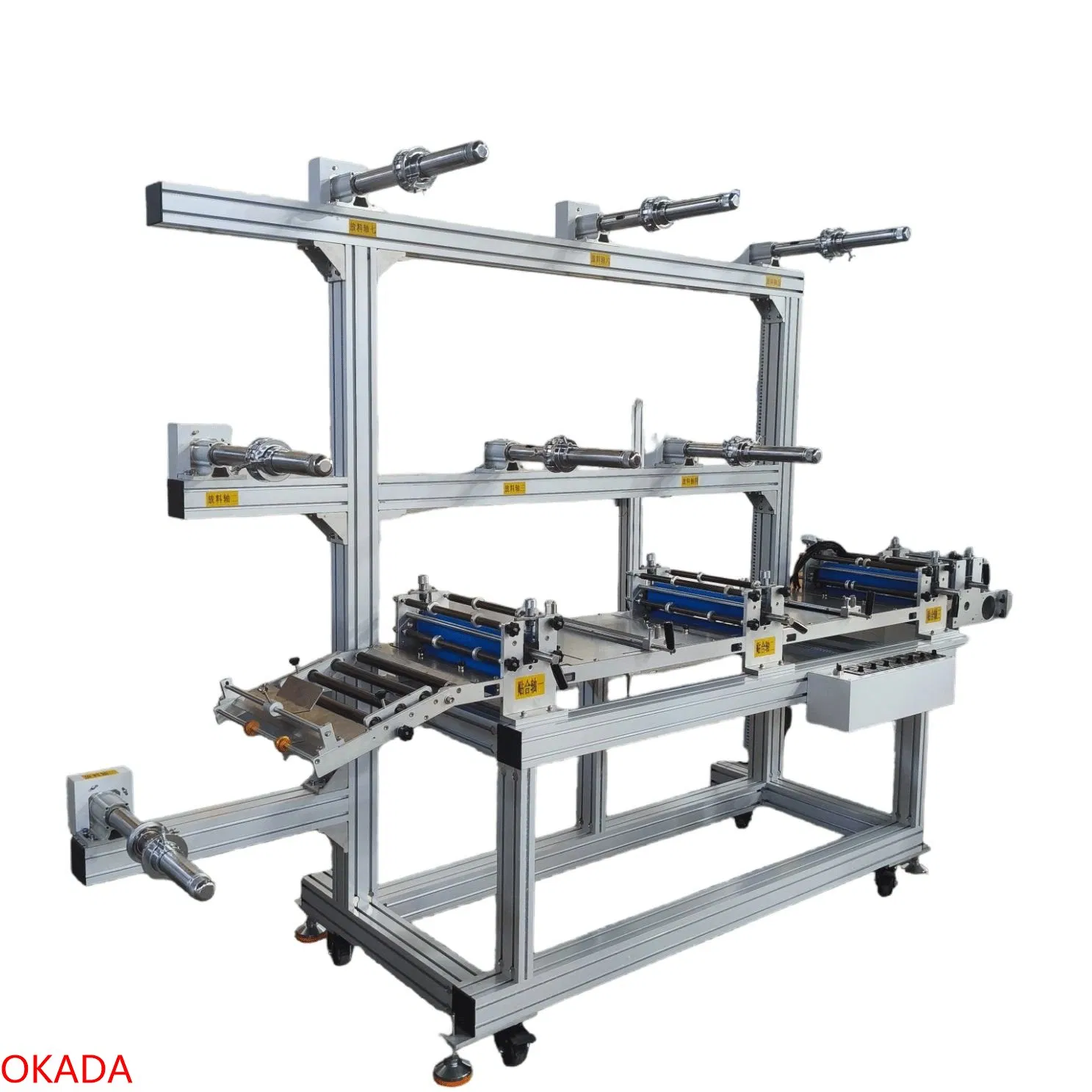

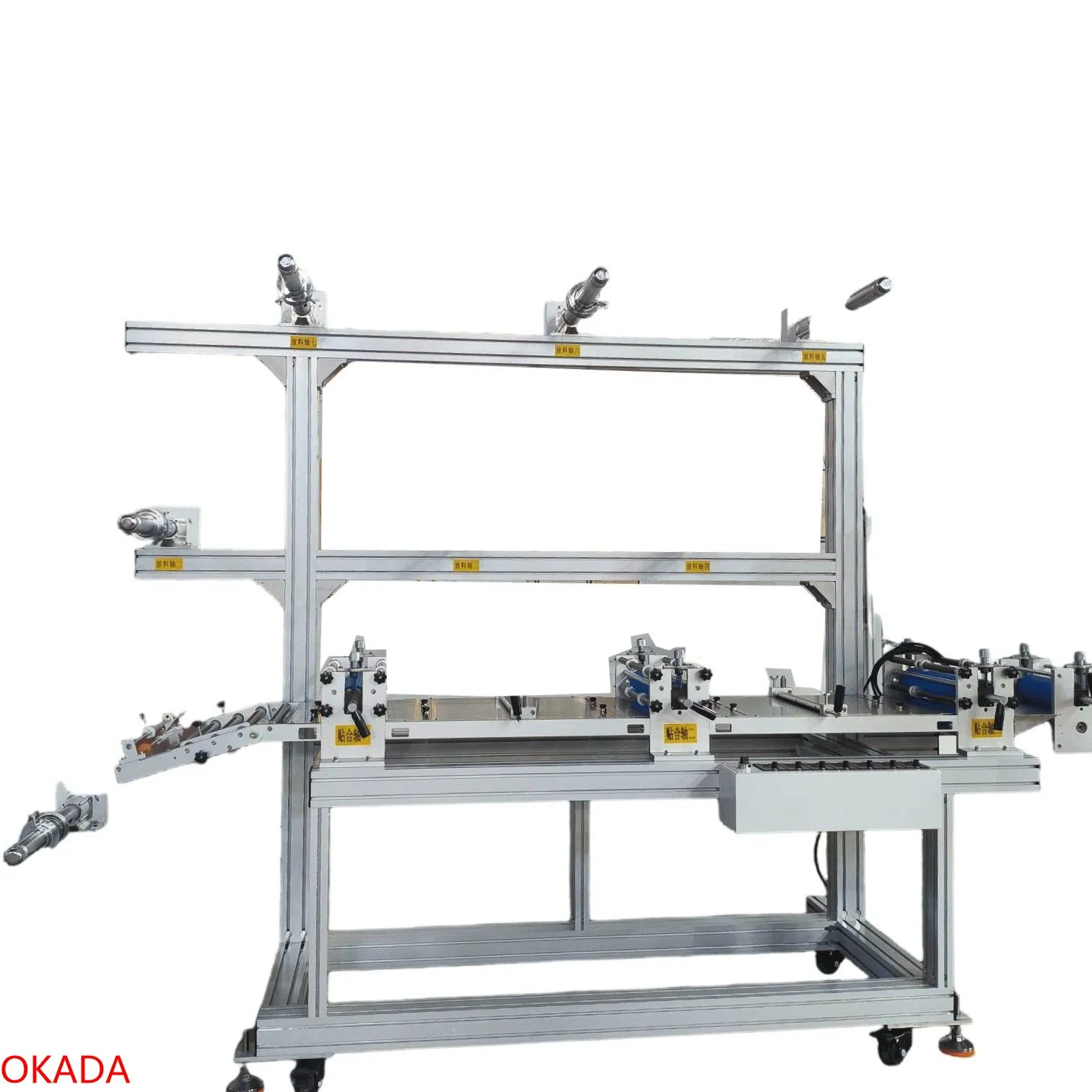

Vape Oil Guide Cotton Blanking Machine is a precision-engineered solution tailored exclusively for the e-cigarette manufacturing industry, specializing in automated blanking and cutting of oil guide cotton components.
Equipped with advanced servo-driven feeding and high-precision die-cutting mechanisms, the machine ensures ultra-flat cut edges and consistent dimensional accuracy (tolerance within ±0.01mm). It adapts seamlessly to various oil guide cotton specifications, including organic and composite cotton. The integrated positioning system prevents fiber damage, ensuring optimal oil absorption performance.
| Specification | Unit | 25TON |
| Impulse generating position | mm | 1.2 |
| Stroke length | mm | 60 |
| Maximum closing working height | mm | 175-205 |
| Number of strokes | s.p.m | 60-150 |
| Adjustment amount of sliding block | mm | 30 |
| Upper table size | LRXFB | 400x300 |
| Main motor | KW | 7.5 |
| Number of cigarette cotton reels | - | 4+2/5+2/6+2 |
Detailed CAD drawings and dimensional diagrams are available upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.
