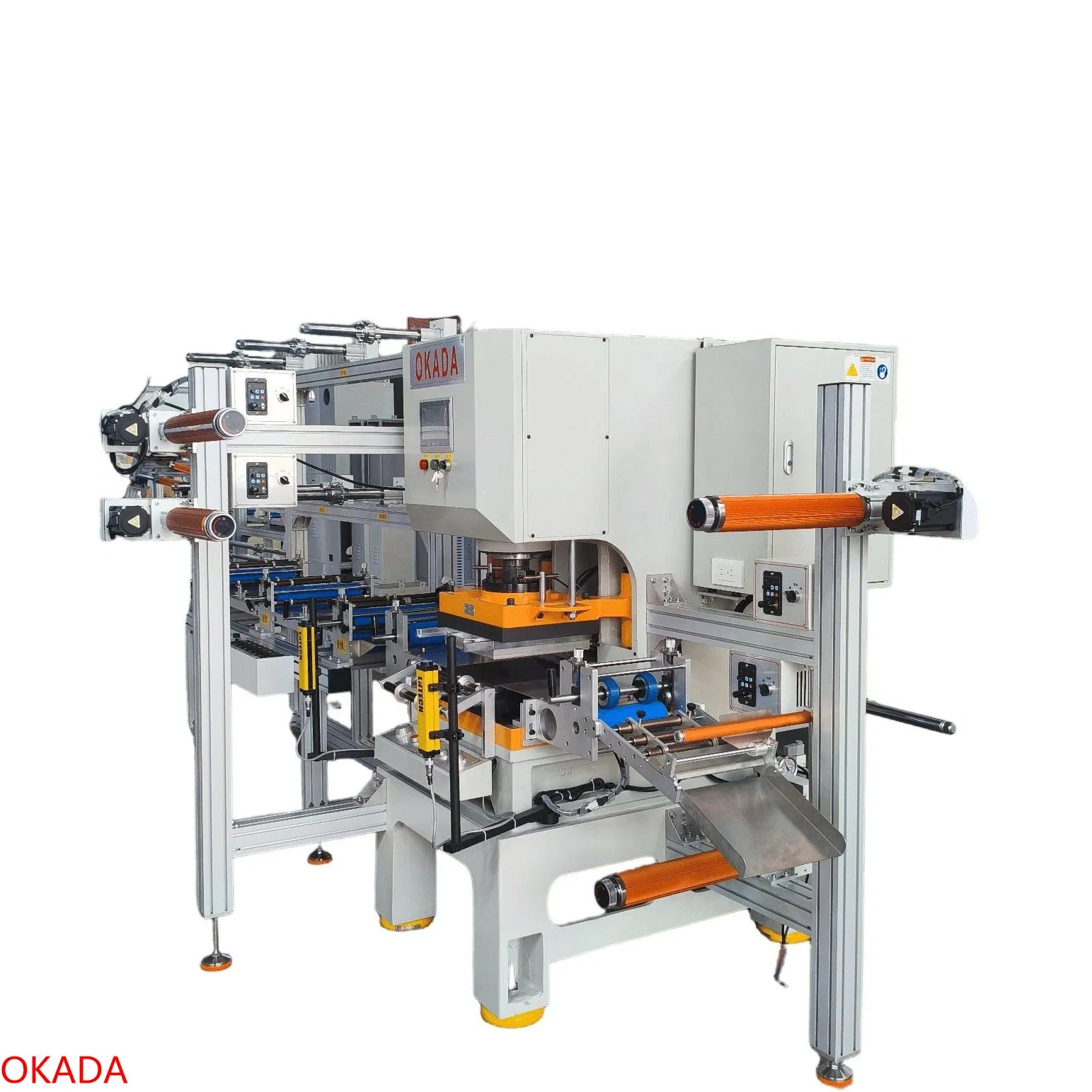

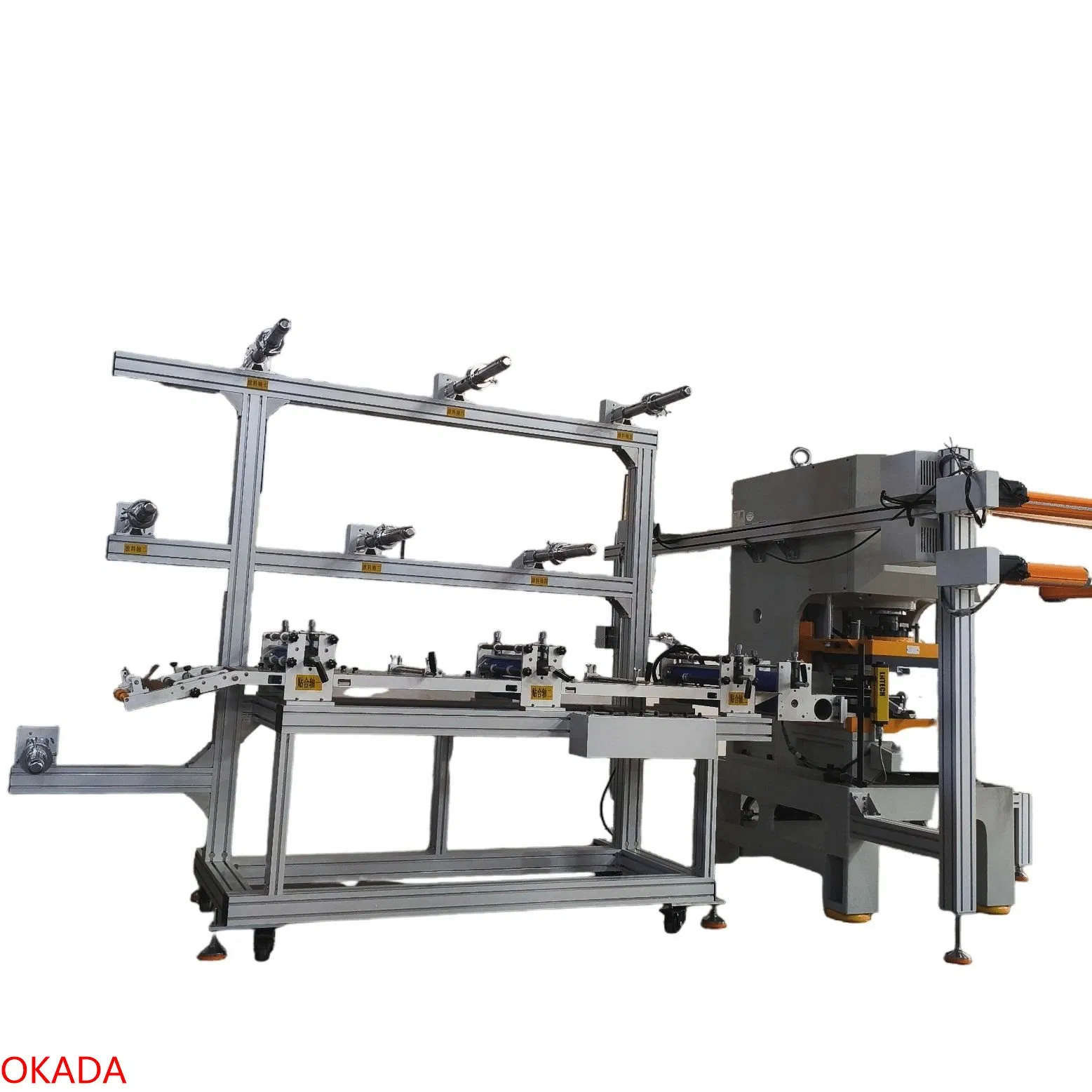

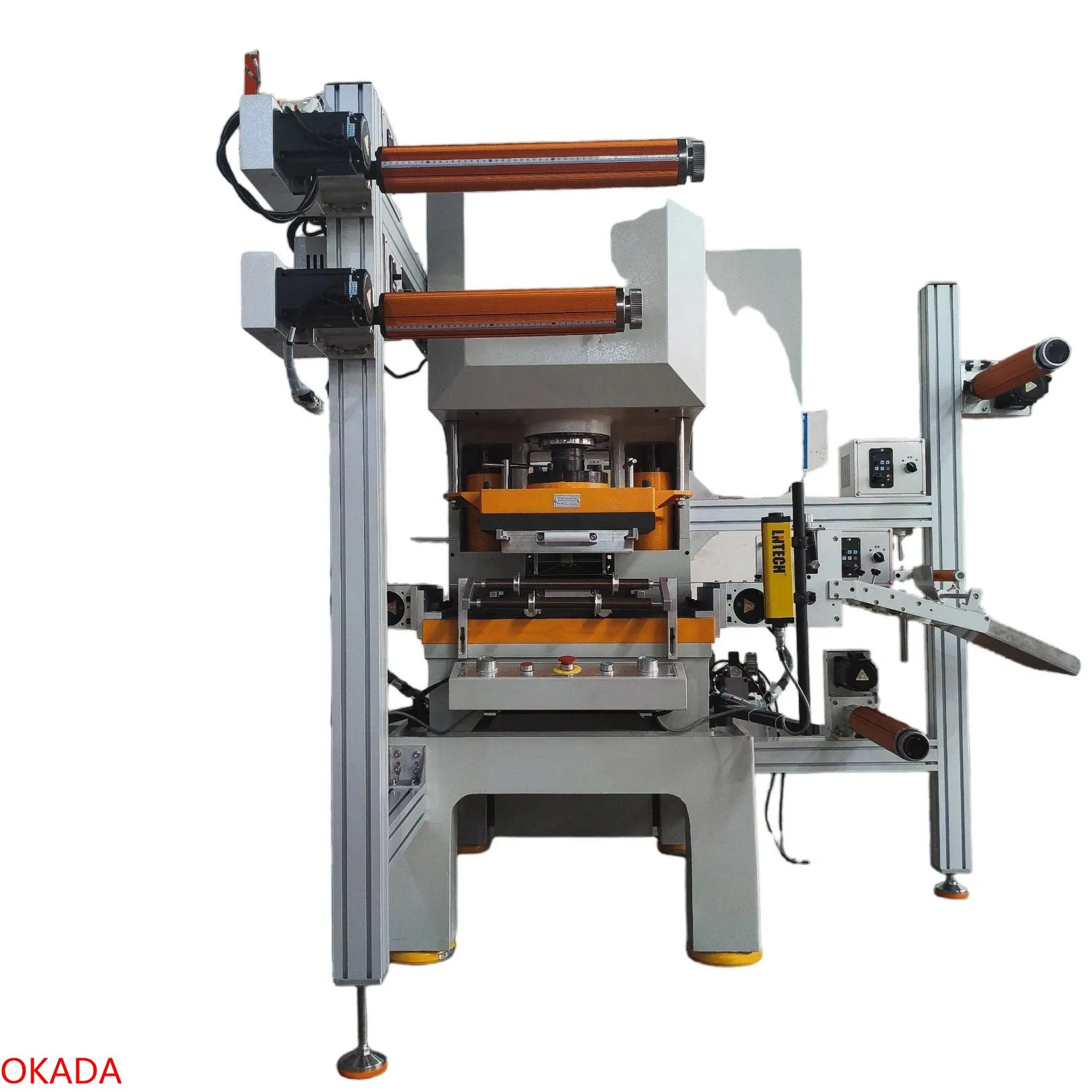

Our dedicated Vape Oil Guide Cotton Blanking Machine is a precision-engineered solution tailored exclusively for the e-cigarette manufacturing industry, specializing in automated blanking and cutting of oil guide cotton components. Equipped with advanced servo-driven feeding and high-precision die-cutting mechanisms, the machine ensures ultra-flat cut edges, consistent dimensional accuracy (tolerance within ±0.01mm), and seamless adaptation to various oil guide cotton specifications.
Featuring an intuitive digital control panel, operators can easily adjust cutting parameters, batch settings and processing speed (60-150 cycles per minute) to match different production demands. It significantly reduces manual labor intensity, boosts production efficiency by 3-5 times compared to manual cutting, and minimizes product defect rates.
| Specification | Unit | Value (25TON) |
|---|---|---|
| Impulse generating position | mm | 1.2 |
| Stroke length | mm | 60 |
| Maximum closing working height | mm | 175-205 |
| Number of strokes | s.p.m | 60-150 |
| Adjustment amount of sliding block | mm | 30 |
| Upper table size | LRXFB | 400x300 |
| Main motor | KWXP | 7.5 |
| Number of cigarette cotton reels | - | 4+2 / 5+2 / 6+2 |
Detailed CAD drawings and dimensional diagrams are available upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.
